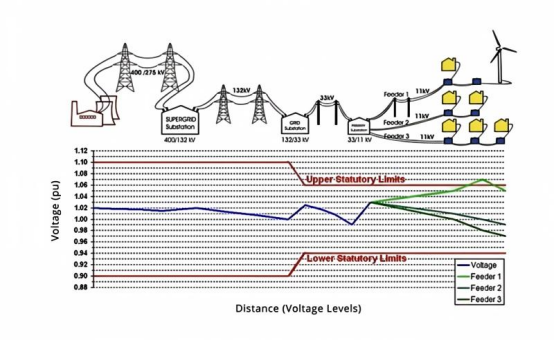

As electrical utilities modernize their networks, smart grid infrastructure is becoming increasingly dependent on intelligent control systems. Among the most critical are Automatic Voltage Control (AVC) and Automatic Voltage Regulation (AVR) systems, which continuously maintain voltage stability, improve power quality, and optimize reactive power across transmission and distribution networks.
Behind every reliable AVC or AVR controller is a rugged hardware platform. Sensitive processors, communication cards, power modules, and CompactPCI (cPCI) or VPX boards require a mechanically robust, electromagnetically shielded enclosure capable of operating reliably in harsh substation environments.

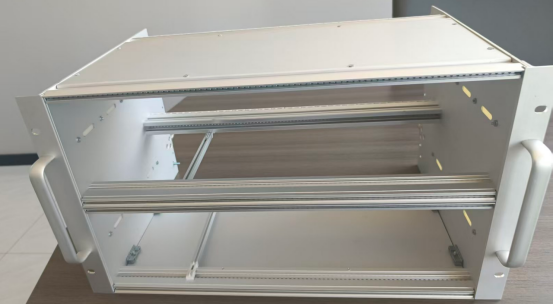

This is where a high-quality 19-inch aluminum subrack becomes essential.

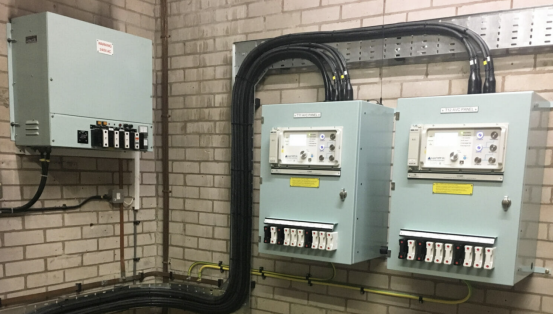

Unlike commercial electronic equipment, power automation systems operate around the clock in high-voltage substations where environmental conditions are far more demanding.
A well-designed 19-inch subrack provides far more than mechanical support. It ensures long-term reliability, system stability, and ease of maintenance throughout the equipment lifecycle.
● Protecting sensitive electronic assemblies from vibration and shock
● Providing effective EMC shielding against electromagnetic interference
● Supporting efficient airflow for thermal management
● Maintaining accurate alignment of CompactPCI, VPX, or custom backplanes
● Simplifying maintenance through modular plug-in architecture
For utilities and system integrators, enclosure reliability directly impacts grid availability and maintenance costs.
High-voltage switchgear, transformers, circuit breakers, and lightning events generate intense electromagnetic interference.
Without effective EMC protection, control electronics may experience:
● Data communication errors
● Processor instability
● Unexpected system resets
● Reduced operational reliability
Industrial subracks should incorporate conductive EMC gaskets, chromate-treated aluminum surfaces, precision grounding, and continuous shielding paths to create an effective Faraday cage around sensitive electronics.
Power substations are exposed to continuous vibration from heavy electrical equipment, cooling systems, and switching operations.
2.1 . Secure PCB retention
2.2. Stable backplane connections
2.3 .High structural rigidity
2.4. Long-term dimensional accuracy
Precision aluminum extrusion and reinforced frame construction significantly improve mechanical stability over standard commercial chassis.

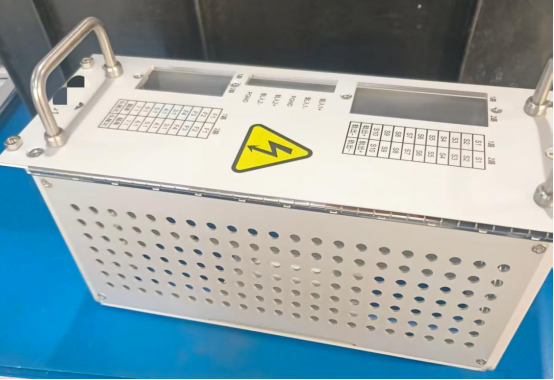

Modern AVC and AVR systems integrate high-performance processors, communication modules, and power electronics within compact spaces.
Proper thermal design is therefore critical.
3.1 Ventilated front panels
3.2 Optimized airflow channels
3.3 High-efficiency fan trays
3.4 Custom ventilation layouts
3.5 Aluminum structures with excellent heat dissipation
When selecting a19-inch subrack for smart grid applications, engineers should ensure compliance with internationally recognized mechanical and EMC standards.
Standard | Purpose |
IEC 60297 | Mechanical dimensions for 19-inch subracks, plug-in units, and cabinets |
IEEE 1101 Series | Modular mechanical architecture for electronic equipment |
IEC 61000 Serie | Electromagnetic compatibility (EMC) requirements |
IEC 60255 | Environmental testing and reliability requirements for protection relays and power automation equipment |
IEC 60068 | Environmental testing for vibration, shock, humidity, and temperature |
Compliance with these standards ensures compatibility, reliability, and long-term serviceability across utility applications.
RDEKONO specializes in designing and manufacturing customized 19-inch subracks, CompactPCI chassis, and industrial electronic packaging for mission-critical applications.
* Standard and custom 19-inch subracks
* 3U, 6U, and 9U configurations
* Custom depths, widths, and mounting options
* CNC-machined front panels and rear panels
* High-performance EMC shielding solutions
* CompactPCI, VPX, and Eurocard compatibility
* Prototype development through volume production
* Rapid customization for OEM and system integrators
Whether you are developing substation automation equipment, protection relay systems, power monitoring devices, or intelligent grid controllers, our engineering team can provide a mechanical platform designed for long-term reliability.
AVC performs centralized voltage optimization across an electrical network, while AVR regulates voltage locally for transformers, generators, or individual power equipment.
Strong electromagnetic interference in substations can affect processor stability and communication accuracy. Proper EMC shielding minimizes interference and helps maintain reliable system operation.
Our subracks support CompactPCI, VPX, VME, and fully customized backplane configurations.
Yes. We provide customized dimensions, panel machining, ventilation design, EMC options, connector cutouts, mounting configurations, and branding to meet specific project requirements.
If you are designing AVC, AVR, protection relay, SCADA, or substation automation equipment, RDEKONO can provide customized 19-inch aluminum subracks engineered for demanding industrial environments.
Contact our engineering team today to discuss your project requirements and discover how our customized electronic packaging solutions can improve the performance and reliability of your next power automation system.
