BEK&BEG PRO Series- EuropacPRO 19
The current models of the BEG series chassis are divided into:
Chassis height: 3U chassis, 4U chassis, 6U chassis, 4U chassis can add fan disks,
Chassis width: 42TE, 63TE, 84TE
Chassis depth: 245, 285, 345
The BEG Series Subrack Shielded Protective Case is the epitome of innovation and sets new benchmarks in quality and functionality. Built on our extensive expertise and cutting-edge design capabilities, this product is tailored to meet the unique requirements of modern electronic systems. With our dedicated technical team, we seamlessly integrate design innovation and advanced manufacturing technology to create Subrack Shielded Protective Cases that perfectly align with your specific requirements. By choosing our solutions, you gain a competitive edge by enhancing your product's performance, reducing costs, and optimizing its overall competitiveness.
◆The Subrack Shielded Protective Case (CompactPCI) adopts a heavy-duty crossbeam, with the crossbeam widened and two sets of ends fixed by two screws and side panels, which can provide better load-bearing performance and improve structural strength.
◆Suitable for CompactPCl and VME64x insertion and extractor handles.
◆Rear horizontal railfor backplane mounting with insulation strip; For applications that install backplanes or connectors, Horizontal rails, rear, for connector mounting (IEC 60603-2 /DIN41612).
◆Typical shielding 40dB at 1GHz, 30dB at 2GHz(as to VG 95373 ,part15),on condition zhat zhe front is sealed with shielded front panels.
◆For reall/O application.

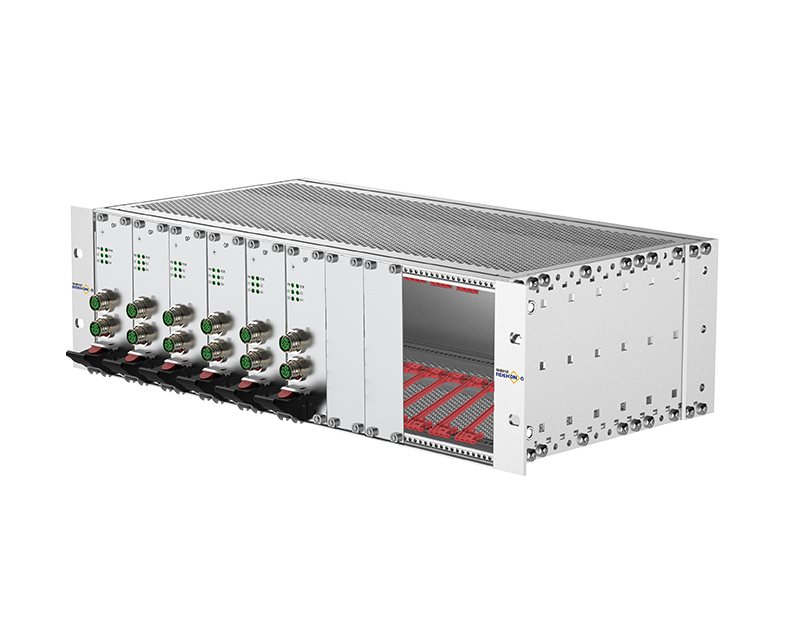

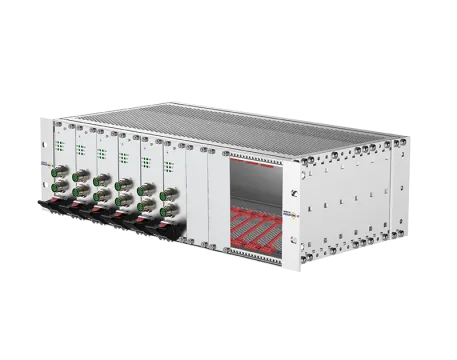

◆3U/4U Subrack

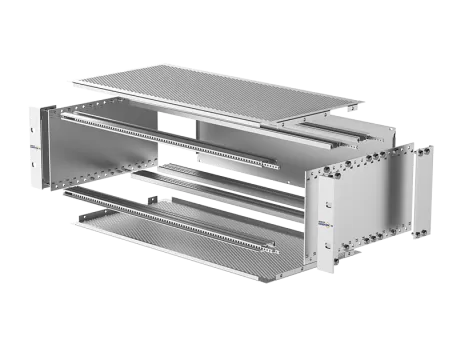

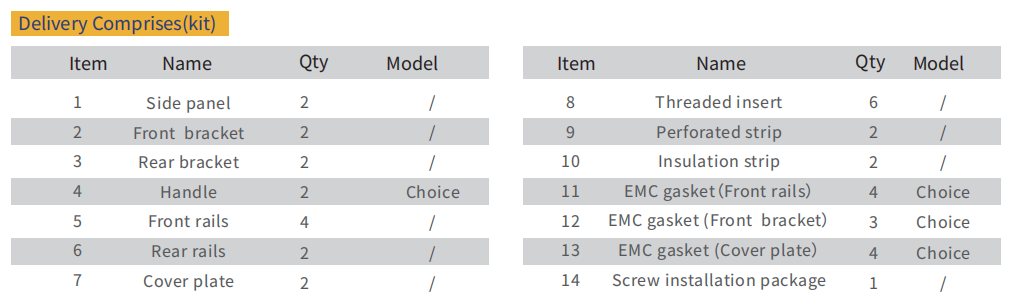

| Delivery Comprises(kit) | |||||||
| Item | Name | Qty | Model | Item | Name | Qty | Model |
| 1 | Side panel | 2 | / | 8 | Threaded insert | 6 | / |
| 2 | Front bracket | 2 | / | 9 | Perforated strip | 2 | / |
| 3 | Rear bracket | 2 | / | 10 | Insulation strip | 2 | / |
| 4 | Handle | 2 | Choice | 11 | EMC gasket(Front rails) | 4 | Choice |
| 5 | Front rails | 4 | / | 12 | EMC gasket(Front bracket) | 3 | Choice |
| 6 | Rear rails | 2 | 13 | EMC gasket (Cover plate) | 4 | Choice | |
| 7 | Cover plate | 2 | / | 14 | Screw installation package | 1 | |

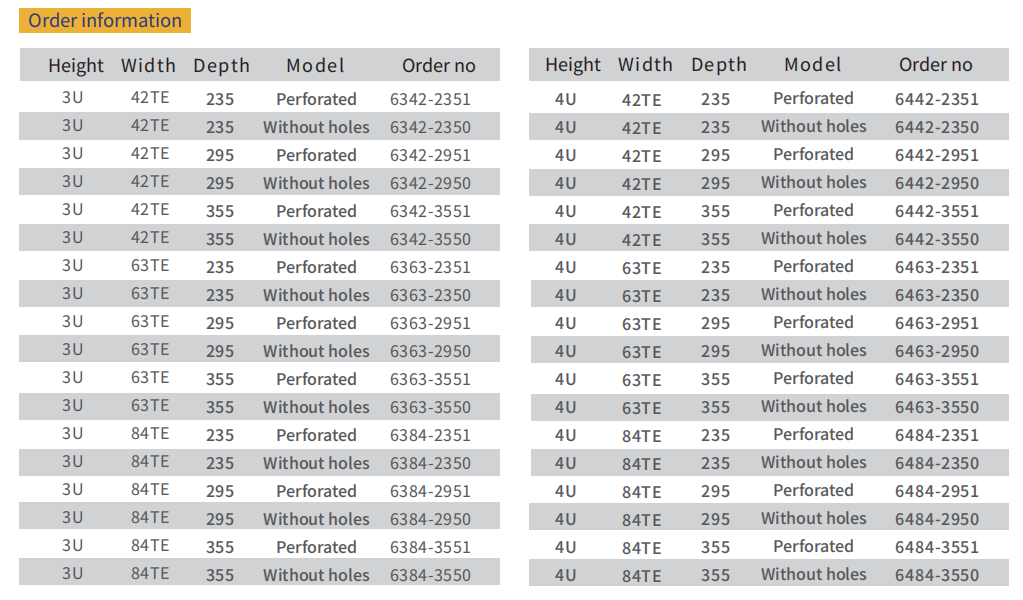

| Order information | |||||||||
| Height | Width | Depth | Model | Order no | Height | Width | Depth | Model | Order no |
| 3U | 42TE | 235 | Perforated | 6342-2351 | 4U | 42TE | 235 | Perforated | 6442-2351 |
| 3U | 42TE | 235 | Without holes | 6342-2350 | 4U | 42TE | 235 | Without holes | 6442-2350 |
| 3U | 42TE | 295 | Perforated | 6342-2951 | 4U | 42TE | 295 | Perforated | 6442-2951 |
| 3U | 42TE | 295 | Without holes | 6342-2950 | 4U | 42TE | 295 | Without holes | 6442-2950 |
| 3U | 42TE | 355 | Perforated | 6342-3551 | 4U | 42TE | 355 | Perforated | 6442-3551 |
| 3U | 42TE | 355 | Without holes | 6342-3550 | 4U | 42TE | 355 | Without holes | 6442-3550 |
| 3U | 63TE | 235 | Perforated | 6363-2351 | 4U | 63TE | 235 | Perforated | 6463-2351 |
| 3U | 63TE | 235 | Without holes | 6363-2350 | 4U | 63TE | 235 | Without holes | 6463-2350 |
| 3U | 63TE | 295 | Perforated | 6363-2951 | 4U | 63TE | 295 | Perforated | 6463-2951 |
| 3U | 63TE | 295 | Without holes | 6363-2950 | 4U | 63TE | 295 | Without holes | 6463-2950 |
| 3U | 63TE | 355 | Perforated | 6363-3551 | 4U | 63TE | 355 | Perforated | 6463-3551 |
| 3U | 63TE | 355 | Without holes | 6363-3550 | 4U | 63TE | 355 | Without holes | 6463-3550 |
| 3U | 84TE | 235 | Perforated | 6384-2351 | 4U | 84TE | 235 | Perforated | 6484-2351 |
| 3U | 84TE | 235 | Without holes | 6384-2350 | 4U | 84TE | 235 | Without holes | 6484-2350 |
| 3U | 84TE | 295 | Perforated | 6384-2951 | 4U | 84TE | 295 | Perforated | 6484-2951 |
| 3U | 84TE | 295 | Without holes | 6384-2950 | 4U | 84TE | 295 | Without holes | 6484-2950 |
| 3U | 84TE | 355 | Perforated | 6384-3551 | 4U | 84TE | 355 | Perforated | 6484-3551 |
| 3U | 84TE | 355 | Without holes | 6384-3550 | 4U | 84TE | 355 | Without holes | 6484-3550 |

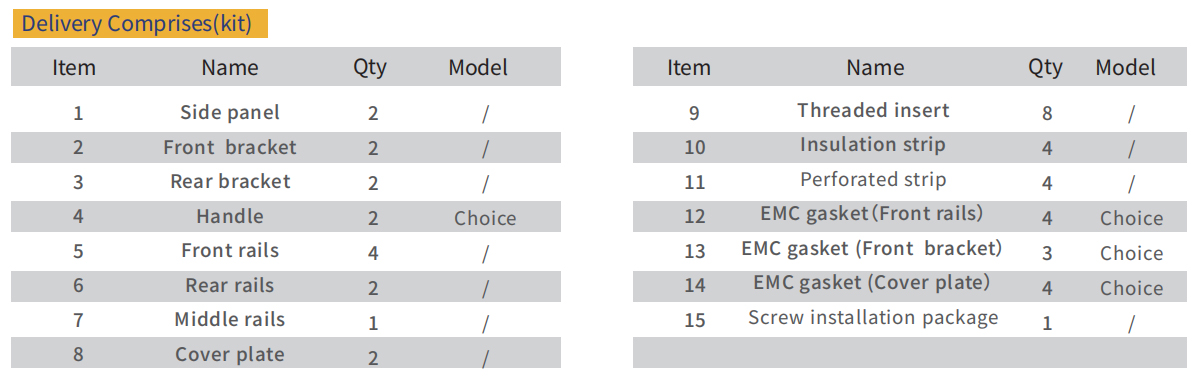

| Delivery Comprises(kit) | |||||||
| Item | Name | Qty | Model | Item | Name | Qty | Model |
| 1 | Side panel | 2 | / | 9 | Threaded insert | 8 | / |
| 2 | Front bracket | 2 | / | 10 | Insulation strip | 4 | / |
| 3 | Rear bracket | 2 | / | 11 | Perforated strip | 4 | / |
| 4 | Handle | 2 | Choice | 12 | EMC gasket(Front rails) | 4 | Choice |
| 5 | Front rails | 4 | / | 13 | EMC gasket(Front bracket) | 3 | Choice |
| 6 | Rear rails | 2 | / | 14 | EMC gasket(Cover plate) | 4 | Choice |
| 7 | Middle rails | 1 | / | 15 | Screw installation package | 1 | / |
| 8 | Cover plate | 2 | |||||

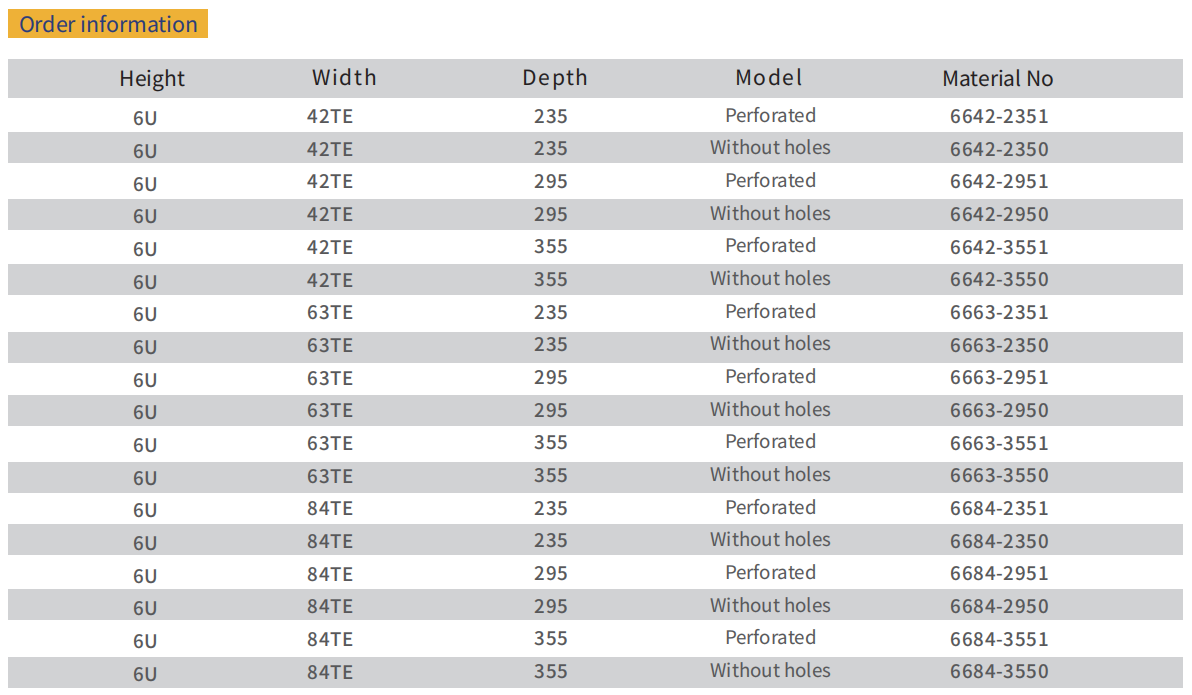

| Order information | ||||
| Height | Width | Depth | Model | Material No |
| 6U | 42TE | 235 | Perforated | 6642-2351 |
| 6U | 42TE | 235 | Without holes | 6642-2350 |
| 6U | 42TE | 295 | Perforated | 6642-2951 |
| 6U | 42TE | 295 | Without holes | 6642-2950 |
| 6U | 42TE | 355 | Perforated | 6642-3551 |
| 6U | 42TE | 355 | Without holes | 6642-3550 |
| 6U | 63TE | 235 | Perforated | 6663-2351 |
| 6U | 63TE | 235 | Without holes | 6663-2350 |
| 6U | 63TE | 295 | Perforated | 6663-2951 |
| 6U | 63TE | 295 | Without holes | 6663-2950 |
| 6U | 63TE | 355 | Perforated | 6663-3551 |
| 6U | 63TE | 355 | Without holes | 6663-3550 |
| 6U | 84TE | 235 | Perforated | 6684-2351 |
| 6U | 84TE | 235 | Without holes | 6684-2350 |
| 6U | 84TE | 295 | Perforated | 6684-2951 |
| 6U | 84TE | 295 | Without holes | 6684-2950 |
| 6U | 84TE | 355 | Perforated | 6684-3551 |
| 6U | 84TE | 355 | Without holes | 6684-3550 |
Note: 1TE=5.08mm, 1U=44.45mm
Catalog
BEK&BEG PRO Series Subracks.pdf
Our dedication to delivering top-notch products has propelled us to expand our presence in international markets. Over the years, we have successfully established ourselves in the United States, Australia, Britain, Germany, Russia, Japan, and South Korea. Our export products have garnered immense admiration from customers worldwide, reinforcing our reputation as a reliable and trusted supplier of mechanical structure solutions. By choosing our Subrack Shielded Protective Case, you align yourself with a brand that is globally recognized for its quality and innovation. Trust us to provide you with the finest mechanical structure solutions, and experience the difference that our Subrack Shielded Protective Case can make for your electronic equipment. Contact Rdekono today.
