CompactPCI (cPCI) Subrack & Chassis Engineering: Multi-Industry Applications

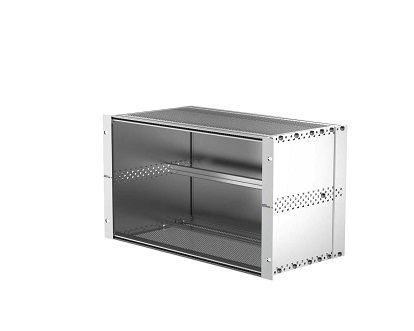

I. The Subrack as the Foundation of cPCI System Integrity

In high-reliability computing, a system is only as robust as its physical enclosure. For system integrators, the CompactPCI subrack (chassis) is an active platform that translates board-level performance into localized environmental survivability.

The core engineering pillars of a premium cPCI subrack include:

1.Precision Mechanical Alignment (IEEE 1101.10/11): Tolerant-controlled aluminum extrusions ensure high-density pin-and-socket connectors on 3U/6U cards align perfectly with the backplane, avoiding pin deformation.

2.Backplane Signal Integrity: High-layer PCBs with controlled impedance and robust copper planes prevent crosstalk in high-speed parallel (PICMG 2.0) and serial (cPCI-S.0) buses.

3.Advanced Thermal Management: Engineered forced-air wind tunnels with smart fan trays or conduction-cooled ATR slots route heat away from 100 W+ cards.

4.EMC & ESD Shielding: Conductive finishes (clear chromate), Beryllium Copper (BeCu) gaskets, and ESD card-guide clips isolate internal electronics from external EMI/ESD threats.

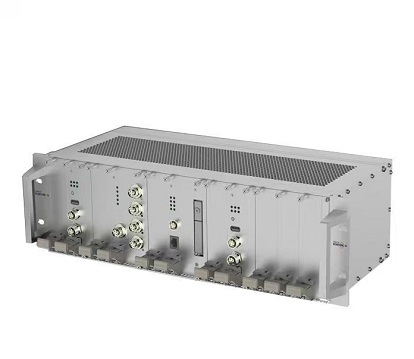

II. Subrack Engineering Across Key Industries

1. Industrial Automation & Energy

Challenge: Conductive dust, high EMI, and thermal stress in steel mills or power substations.

Subrack Solution: A 6U subrack featuring EMC textile gaskets, dust-filtered plenums, and ESD discharge clips in the card guides. It supports PICMG 2.11 redundant power backplanes and PICMG 2.1 hot-swapping for zero-downtime maintenance.

2.Telecom & Private Networks

Challenge: High thermal loads and strict telecom-grade high availability (99.999%).

Subrack Solution: A 9U chassis utilizing a PICMG 2.16 packet-switching backplane topology with dual-redundant fabric slots. Integrated hot-swappable fan trays communicate via IPMB (PICMG 2.9) to dynamically adjust fan speed based on card sensor telemetry.

3. Defense & Rugged Tactical Systems

Challenge: Severe mechanical shock (recoil), wide temperature swings (-40℃ to +85℃), and zero-airflow sealed requirements.

Subrack Solution: A 3U Conduction-Cooled ATR Chassis machined from a monoblock of 6061-T6 aluminum (VITA 30.1). Precision-machined slots interface with board wedge-locks to create a high-pressure thermal conduction path to the chassis wall, while MIL-DTL-38999 connectors seal all external I/O

4. Aerospace & Test Systems (ATE)

Challenge: Heavy cable congestion and complex avionics signal routing (MIL-STD-1553B/ARINC 429)

Subrack Solution: A 6U subrack featuring a Hybrid Backplane (parallel cPCI + avionics routing zones) and Rear Transition Modules (RTMs) per IEEE 1101.11. This isolates complex cabling to the rear, enabling rapid, tool-less front-card replacement.

5. Railway Transit (EN 50155)

Challenge: Continuous multi-axis vibration, fire safety compliance (EN 45545), and fail-safe redundancy.

Subrack Solution: A 3U subrack equipped with reinforced card guides and spring-loaded locks (replacing plastic rails) to resist continuous vibration. It implements an isolated "2-out-of-2" (2oo2) voting backplane architecture with physical metal partitions to prevent electrical/thermal failure propagation.

III. Subrack Selection and Design Matrix

Our focus as a premier subrack manufacturer goes beyond basic metal fabrication. By optimizing mechanical tolerances, backplane signal integrity, and thermal/EMC dynamics, we deliver the rugged physical foundation required for critical computing in the world's most unforgiving environments.
