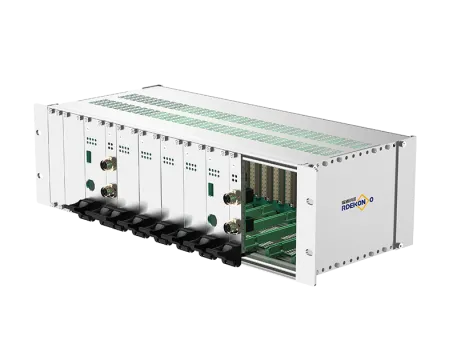

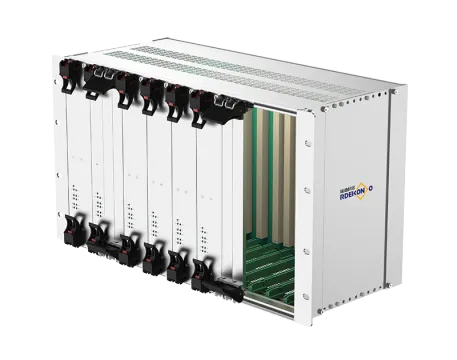

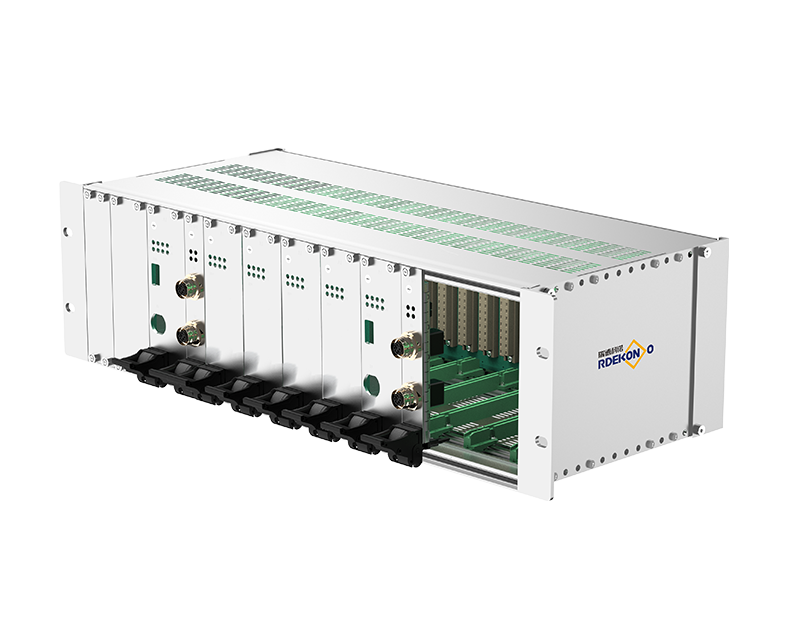

VERO Series Subracks
Can be used to build CompactPCl system platforms with full mounting accessory support; for the application of mounting backplane or connector.
Can be used to build CompactPCl system platforms with full mounting accessory support; for the application of mounting backplane or connector.
For rear panel installation, there is an insulating strip between the rear panel and the middle cross member;
for connector installation, the connector type should comply with IEC60603-2/DIN 41612 standard.
The crossbeams are all fixed with double holes, increasing the overall strength of the chassis structure. There are two types of KM6 series plug-in box rails, namely high rail and low rail. When directly inserting a PCB, use a high guide rail, and when inserting a shielding box or module box, use a low guide rail. There are two types of guide rails corresponding to different PCB board depths, 160mm and 220mm.
