VERO Series Subracks
VERO Shielded plug-in units is used in conjunction with the low rail and can be directly installed in the VERO subracks.
For circuit board protection against physical damage and mechanical damage.
Front panel is shielded or unshielded.
Suitable for subrack cases and instrument cases.
VERO 3U Shielded plug-in units

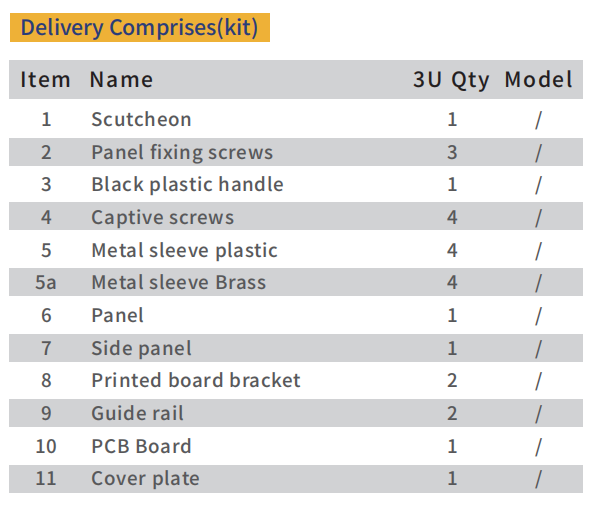

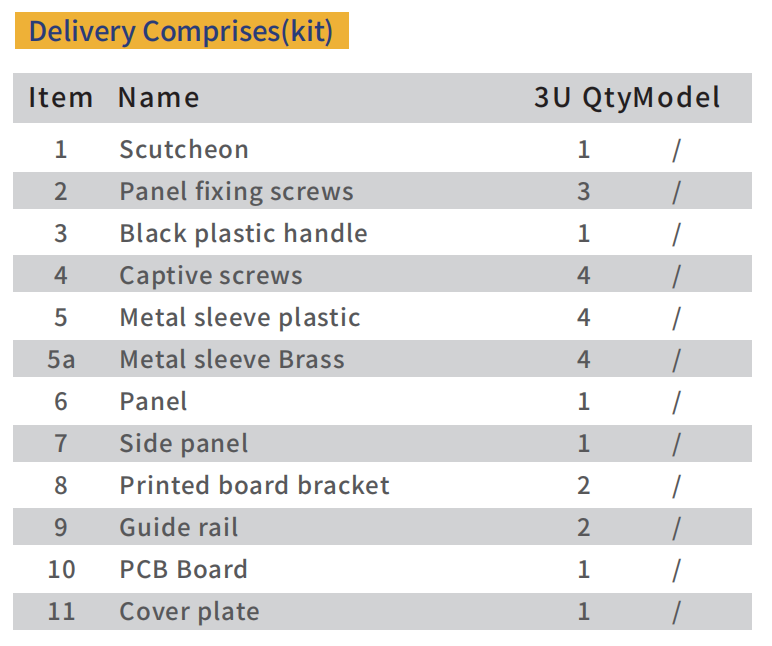

| Delivery Comprises(kit) | ||
| Item | Name | 3U QtyModel |
| 1 | Scutcheon | 1 / |
| 2 | Panel fixing screws | 3 / |
| 3 | Black plastic handle | 1 / |
| 4 | Captive screws | 4 / |
| 5 | Metal sleeve plastic | 4 / |
| 5a | Metal sleeve Brass | 4 / |
| 6 | Panel | 1 / |
| 7 | Side panel | 1 / |
| 8 | Printed board bracket | 2 / |
| 9 | Guide rail | 2 / |
| 10 | PCB Board | 1 / |
| 11 | Cover plate | 1 / |

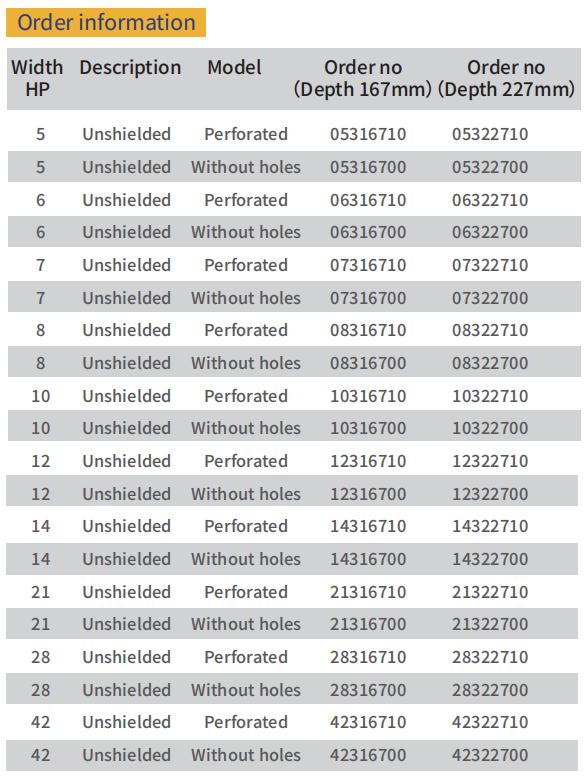

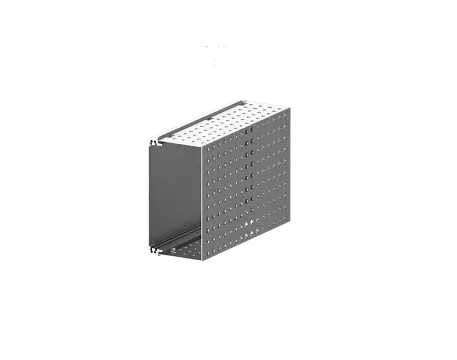

| Order information | ||||
| Width HP | Description | Model (D | Orderno epth 167mm) | Order no (Depth 227mm) |
| 5 | Unshielded | Perforated | 05316710 | 05322710 |
| 5 | Unshielded | Without holes | 05316700 | 05322700 |
| 6 | Unshielded | Perforated | 06316710 | 06322710 |
| 6 | Unshielded | Without holes | 06316700 | 06322700 |
| 7 | Unshielded | Perforated | 07316710 | 07322710 |
| 7 | Unshielded | Without holes | 07316700 | 07322700 |
| 8 | Unshielded | Perforated | 08316710 | 08322710 |
| 8 | Unshielded | Without holes | 08316700 | 08322700 |
| 10 | Unshielded | Perforated | 10316710 | 10322710 |
| 10 | Unshielded | Without holes | 10316700 | 10322700 |
| 12 | Unshielded | Perforated | 12316710 | 12322710 |
| 12 | Unshielded | Without holes | 12316700 | 12322700 |
| 14 | Unshielded | Perforated | 14316710 | 14322710 |
| 14 | Unshielded | Without holes | 14316700 | 14322700 |
| 21 | Unshielded | Perforated | 21316710 | 21322710 |
| 21 | Unshielded | Without holes | 21316700 | 21322700 |
| 28 | Unshielded | Perforated | 28316710 | 28322710 |
| 28 | Unshielded | Without holes | 28316700 | 28322700 |
| 42 | Unshielded | Perforated | 42316710 | 42322710 |
| 42 | Unshielded | Without holes | 42316700 | 42322700 |

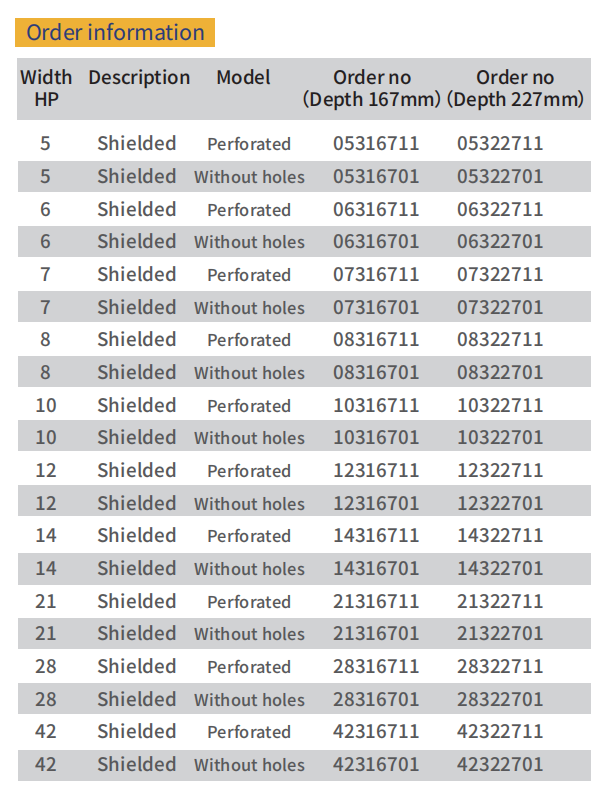

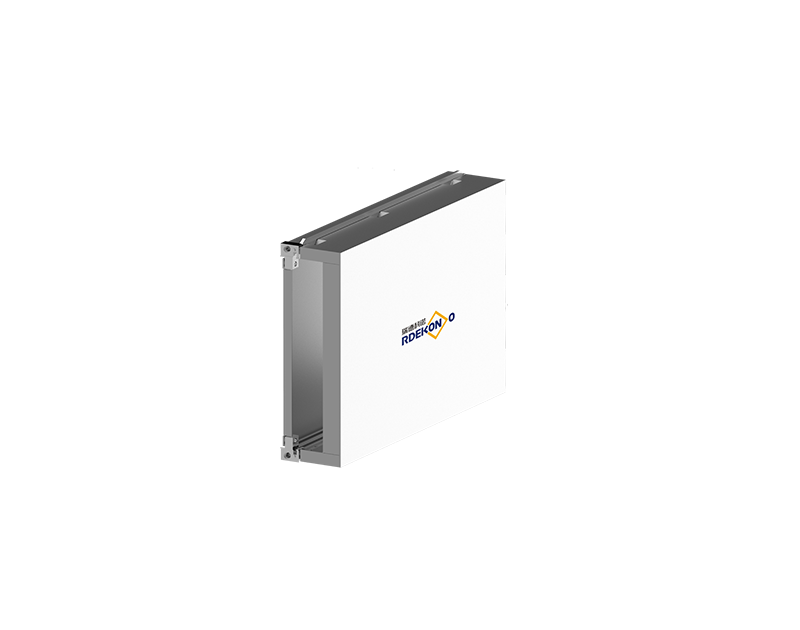

| Order information | |||
| Width HP | Description Model (D | Orderno epth 167mm) | Order no (Depth 227mm) |
| 5 | Shielded Perforated | 05316711 | 05322711 |
| 5 | Shielded Without holes | 05316701 | 05322701 |
| 6 | Shielded Perforated | 06316711 | 06322711 |
| 6 | Shielded Without holes | 06316701 | 06322701 |
| 7 | Shielded Perforated | 07316711 | 07322711 |
| 7 | Shielded Without holes | 07316701 | 07322701 |
| 8 | Shielded Perforated | 08316711 | 08322711 |
| 8 | Shielded Without holes | 08316701 | 08322701 |
| 10 | Shielded Perforated | 10316711 | 10322711 |
| 10 | Shielded Without holes | 10316701 | 10322701 |
| 12 | Shielded Perforated | 12316711 | 12322711 |
| 12 | Shielded Without holes | 12316701 | 12322701 |
| 14 | Shielded Perforated | 14316711 | 14322711 |
| 14 | Shielded Without holes | 14316701 | 14322701 |
| 21 | Shielded Perforated | 21316711 | 21322711 |
| 21 | Shielded Without holes | 21316701 | 21322701 |
| 28 | Shielded Perforated | 28316711 | 28322711 |
| 28 | Shielded Without holes | 28316701 | 28322701 |
| 42 | Shielded Perforated | 42316711 | 42322711 |
| 42 | Shielded Without holes | 42316701 | 42322701 |
VERO 6U Shielded plug-in units
| Delivery Comprises(kit) | |||
| Item | Name | 3U Qty | Model |
| 1 | Scutcheon | 1 | / |
| 2 | Panel fixing screws | 3 | / |
| 3 | Black plastic handle | 1 | / |
| 4 | Captive screws | 4 | / |
| 5 | Metal sleeve plastic | 4 | / |
| 5a | Metal sleeve Brass | 4 | / |
| 6 | Panel | 1 | / |
| 7 | Side panel | 1 | / |
| 8 | Printed board bracket | 2 | / |
| 9 | Guide rail | 2 | / |
| 10 | PCB Board | 1 | / |
| 11 | Cover plate | 1 | / |

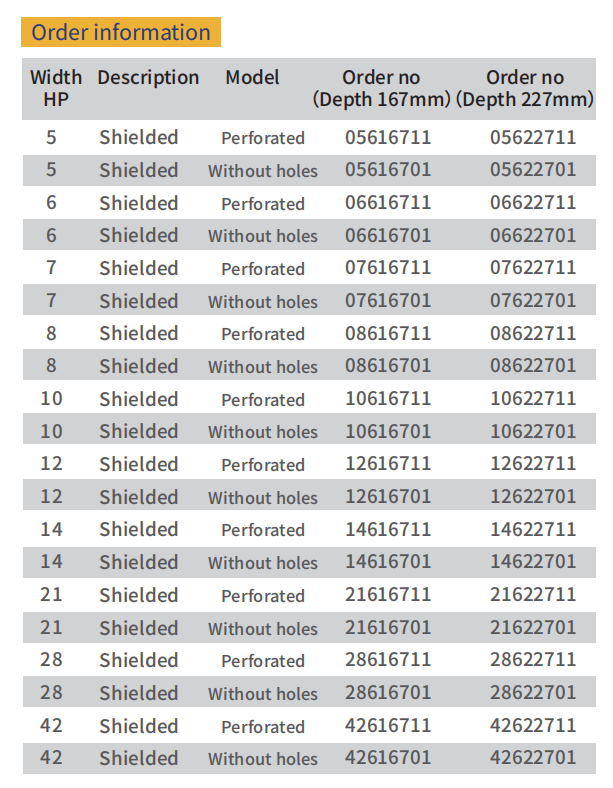

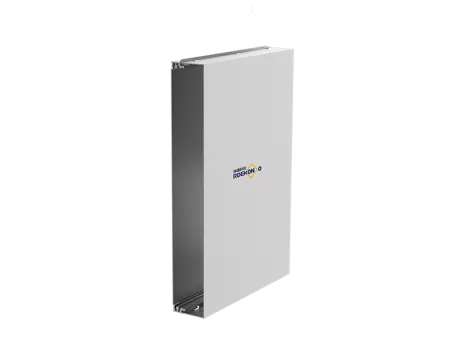

| Orderinformation | ||||
| Width HP | Description | Model (D | Order no epth 167mm)( | Order no Depth 227mm) |
| 5 | Shielded | Perforated | 05616711 | 05622711 |
| 5 | Shielded | Without holes | 05616701 | 05622701 |
| 6 | Shielded | Perforated | 06616711 | 06622711 |
| 6 | Shielded | Without holes | 06616701 | 06622701 |
| 7 | Shielded | Perforated | 07616711 | 07622711 |
| 7 | Shielded | Without holes | 07616701 | 07622701 |
| 8 | Shielded | Perforated | 08616711 | 08622711 |
| 8 | Shielded | Without holes | 08616701 | 08622701 |
| 10 | Shielded | Perforated | 10616711 | 10622711 |
| 10 | Shielded | Without holes | 10616701 | 10622701 |
| 12 | Shielded | Perforated | 12616711 | 12622711 |
| 12 | Shielded | Without holes | 12616701 | 12622701 |
| 14 | Shielded | Perforated | 14616711 | 14622711 |
| 14 | Shielded | Without holes | 14616701 | 14622701 |
| 21 | Shielded | Perforated | 21616711 | 21622711 |
| 21 | Shielded | Without holes | 21616701 | 21622701 |
| 28 | Shielded | Perforated | 28616711 | 28622711 |
| 28 | Shielded | Without holes | 28616701 | 28622701 |
| 42 | Shielded | Perforated | 42616711 | 42622711 |
| 42 | Shielded | Without holes | 42616701 | 42622701 |

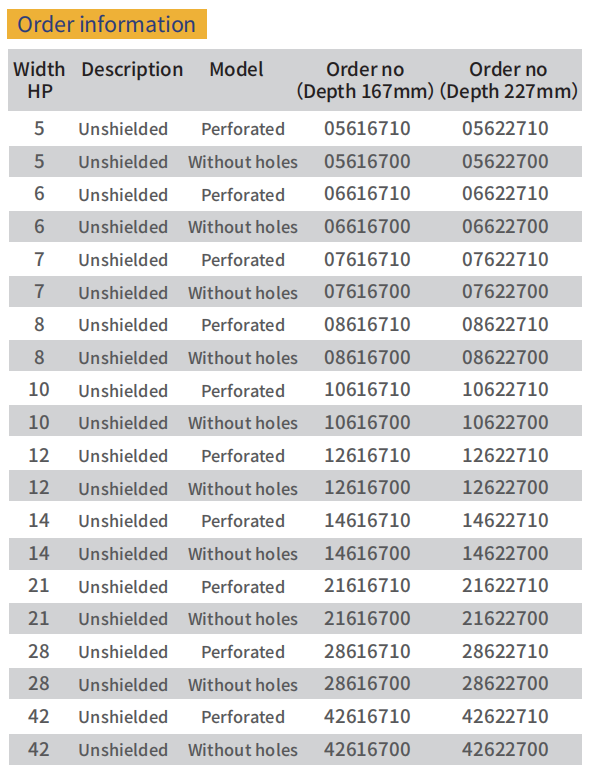

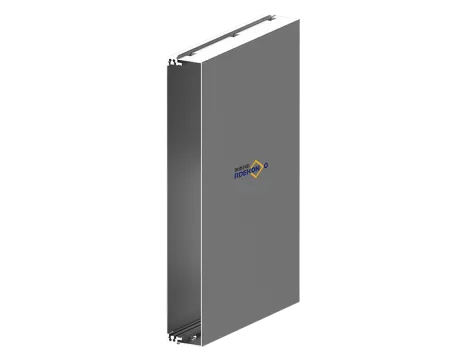

| Order information | ||||
| Width HP | Descriptio | n Model ( | Orderno Depth 167mm) | Order no (Depth 227mm) |
| 5 | Unshielded | Perforated | 05616710 | 05622710 |
| 5 | Unshielded | Without holes | 05616700 | 05622700 |
| 6 | Unshielded | Perforated | 06616710 | 06622710 |
| 6 | Unshielded | Without holes | 06616700 | 06622700 |
| 7 | Unshielded | Perforated | 07616710 | 07622710 |
| 7 | Unshielded | Without holes | 07616700 | 07622700 |
| 8 | Unshielded | Perforated | 08616710 | 08622710 |
| 8 | Unshielded | Without holes | 08616700 | 08622700 |
| 10 | Unshielded | Perforated | 10616710 | 10622710 |
| 10 | Unshielded | Without holes | 10616700 | 10622700 |
| 12 | Unshielded | Perforated | 12616710 | 12622710 |
| 12 | Unshielded | Without holes | 12616700 | 12622700 |
| 14 | Unshielded | Perforated | 14616710 | 14622710 |
| 14 | Unshielded | Without holes | 14616700 | 14622700 |
| 21 | Unshielded | Perforated | 21616710 | 21622710 |
| 21 | Unshielded | Without holes | 21616700 | 21622700 |
| 28 | Unshielded | Perforated | 28616710 | 28622710 |
| 28 | Unshielded | Without holes | 28616700 | 28622700 |
| 42 | Unshielded | Perforated | 42616710 | 42622710 |
| 42 | Unshielded | Without holes | 42616700 | 42622700 |
Note: 1TE=5.08mm, 1U=44.45mm
