Type V Series Handle Component

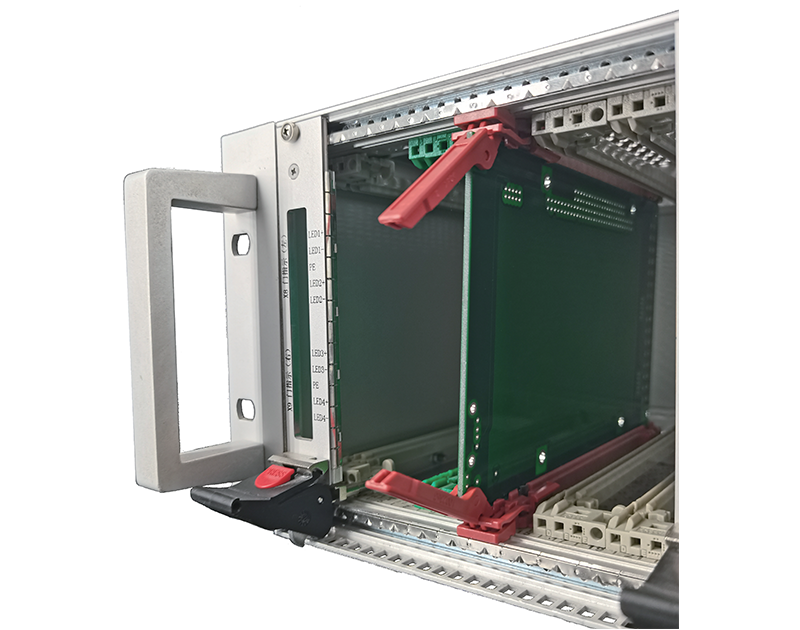

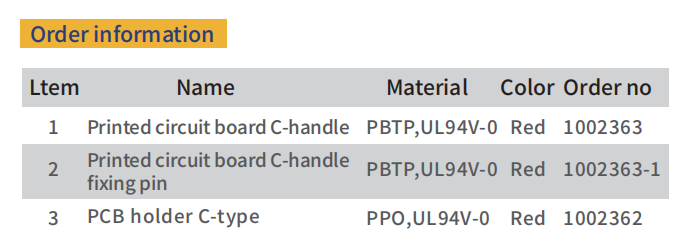

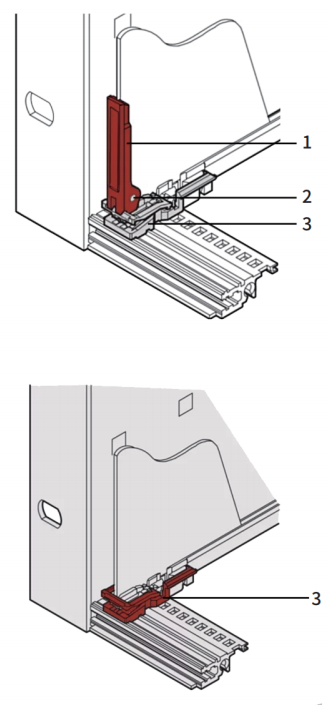

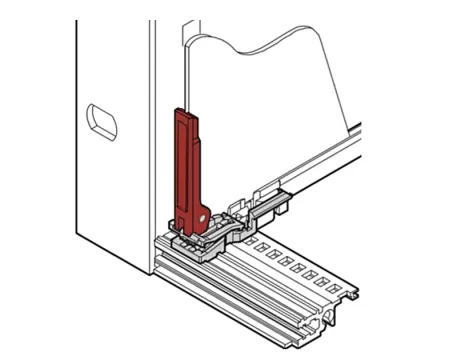

Printed circuit board C-type handle, can only be used in conjunction with PCB holder C-type

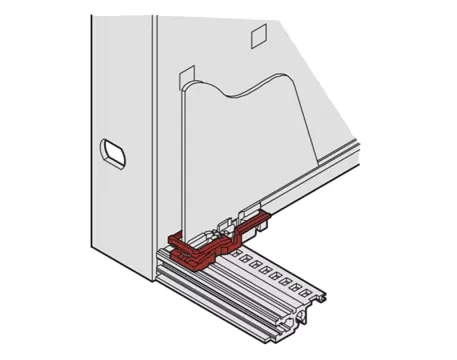

PCB holder C-type, can be used for fixing PCB boards without front panels
PCB holder C-type, can be installed on the upper and lower crossbeams of the subracks m
The component is only used in conjunction with B-type short end guide rails and B-type reinforced guide rails
Can be used for BEK series chassis and BEG series subracks
Contact Us
Whether you’d like to get more info on what, why and how we do what we do, need help with what you’re creating, would like to partner up or just say hi!---we’d love to hear from you.
Oct. 01, 2023
For PCB board of the subrack insertion and extraction, Provides assistance when pulled out.Composed of four parts: handle, scutcheon, printed board bracket, and shaft. Handle material: PC+GF20%, Fire retardant standard: UL94V1, printed board bracket material: die-cast zinc alloy surface nickel plating.
Oct. 08, 2023
The subrack does not have a series of profiles, and after receiving an order, it is usually customized and processed according to the drawings. Products from different customers and products of different specifications from the same customer all need to be redesigned and processed, resulting in higher costs;
