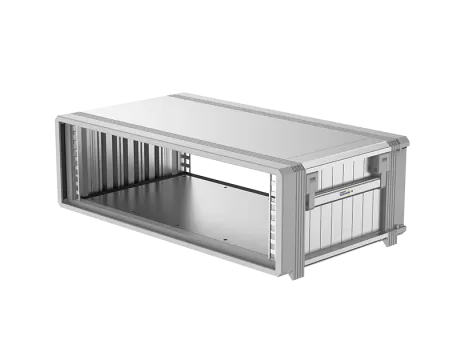

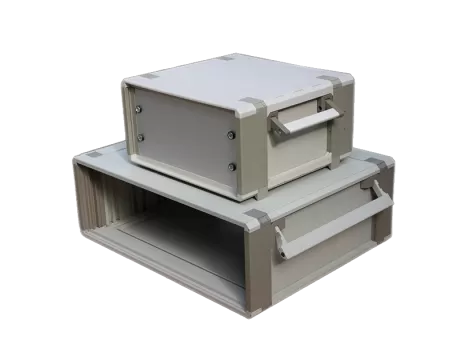

Type A Series-Instrument Case

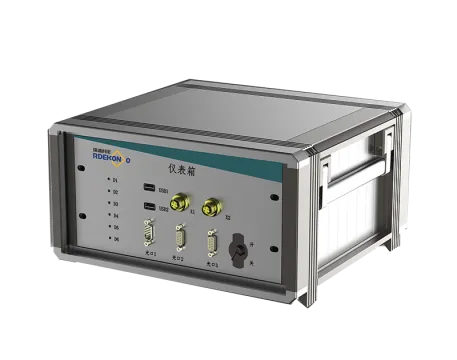

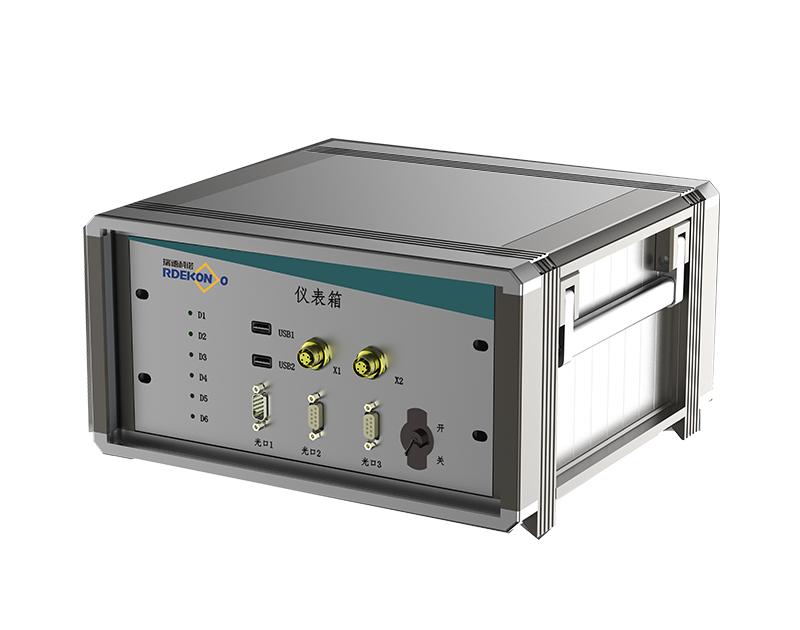

The subrack is used as a desktop case
The subrack is equipped with VC legs to prevent the chassis from sliding after stacking

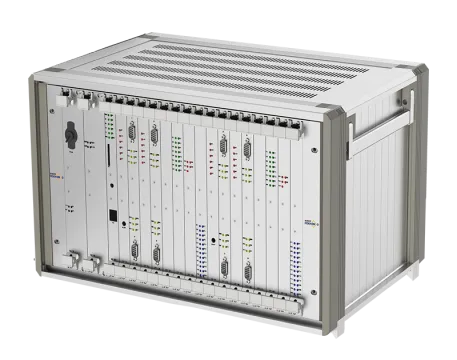

Composite standard plugin box can be installed inside the chassis
When supplying: the box has been partially assembled
The subrack is used as a desktop case
The subrack is equipped with VC legs to prevent the chassis from sliding after stacking
Composite standard plugin box can be installed inside the chassis
When supplying: the box has been partially assembled
Standard: 60297-3
When the non ventilated form is selected, the protection grade is IP42
A-II type subrack adopts splicing aluminum profiles,In increments of 50MM.
The chassis can also be equipped with a cover plate, which is used for installation in electronic cabinets or boxes. Horizontal or vertical hinged cover plates can also be selected
Product Type: CASES
Product Family：Type-A
Rack Width: 2U、3U、4U、6U，42HP，84HP
Product order number

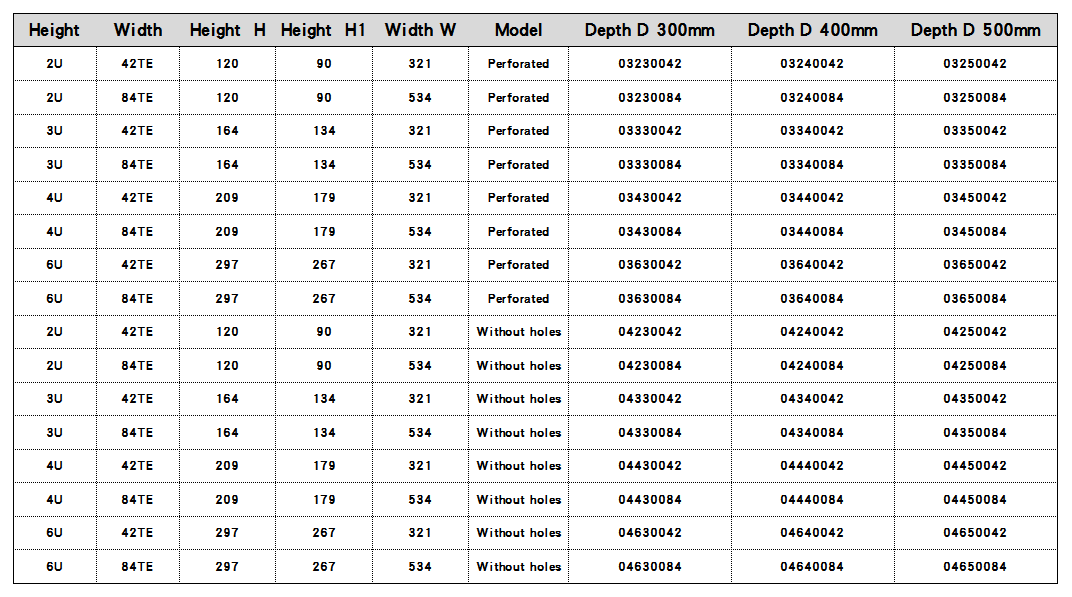

Product model and order number
| Height | Width | Height H | Width W | Height H1 | Model | Depth D 300mm | Depth D 400mm | Depth D 500mm |
| 2U | 42TE | 120 | 90 | 321 | Perforated | 03230042 | 03240042 | 03250042 |
| 2U | 84TE | 120 | 90 | 534 | Perforated | 03230084 | 03240084 | 03250084 |
| 3U | 42TE | 164 | 134 | 321 | Perforated | 03330042 | 03340042 | 03350042 |
| 3U | 84TE | 164 | 134 | 534 | Perforated | 03330084 | 03340084 | 03350084 |
| 4U | 42TE | 209 | 179 | 321 | Perforated | 03430042 | 03440042 | 03450042 |
| 4U | 84TE | 209 | 179 | 534 | Perforated | 03430084 | 03440084 | 03450084 |
| 6U | 42TE | 297 | 267 | 321 | Perforated | 03630042 | 03640042 | 03650042 |
| 6U | 84TE | 297 | 267 | 534 | Perforated | 03630084 | 03640084 | 03650084 |
| 2U | 42TE | 120 | 90 | 321 | Without holes | 04230042 | 04240042 | 04250042 |
| 2U | 84TE | 120 | 90 | 534 | Without holes | 04230084 | 04240084 | 04250084 |
| 3U | 42TE | 164 | 134 | 321 | Without holes | 04330042 | 04340042 | 04350042 |
| 3U | 84TE | 164 | 134 | 534 | Without holes | 04330084 | 04340084 | 04350084 |
| 4U | 42TE | 209 | 179 | 321 | Without holes | 04430042 | 04440042 | 04450042 |
| 4U | 84TE | 209 | 179 | 534 | Without holes | 04430084 | 04440084 | 04450084 |
| 6U | 42TE | 297 | 267 | 321 | Without holes | 04630042 | 04640042 | 04650042 |
| 6U | 84TE | 297 | 267 | 534 | Without holes | 04630084 | 04640084 | 04650084 |
Note: 1TE=5.08mm, 1U=44.45mm

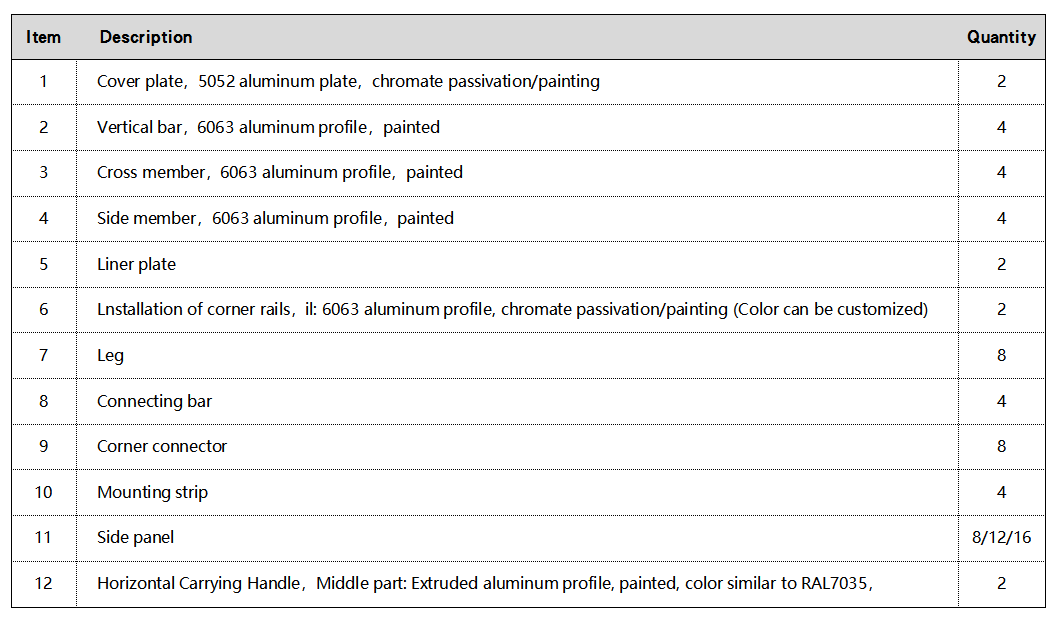

ITEM(S) DELIVERED
