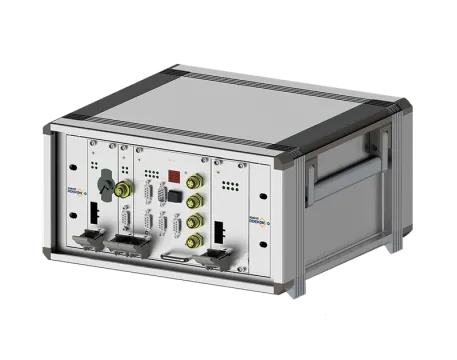

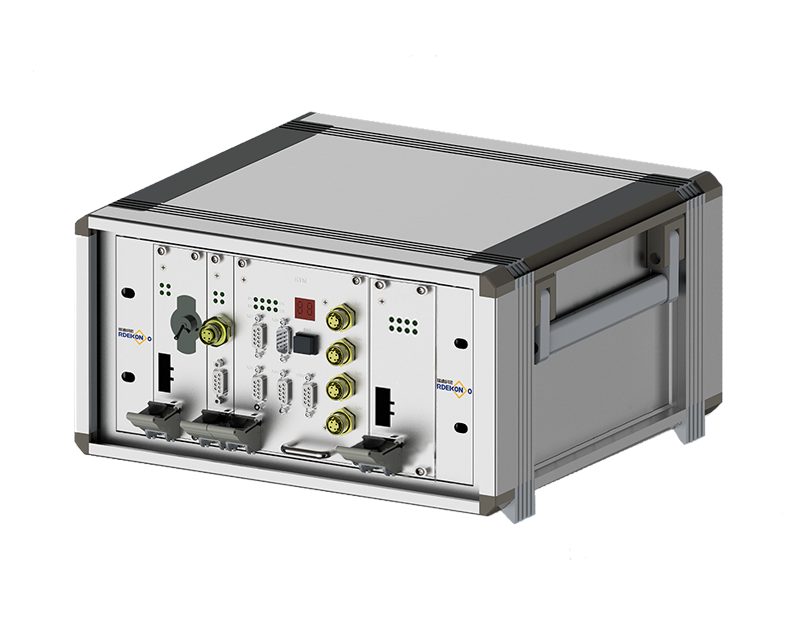

Type A Series-Instrument Case
The subrack is used as a desktop case
The subrack is equipped with VC legs to prevent the chassis from sliding after stacking
Composite standard plugin box can be installed inside the chassis
When supplying: the box has been partially assembled
Standard: 60297-3
When the non ventilated form is selected, the protection grade is IP42
A-I type subrack side panel is made of integral aluminum plate;
The chassis can also be equipped with a cover plate, which is used for installation in electronic cabinets or boxes. Horizontal or vertical hinged cover plates can also be selected.
● The subrack is used as a desktop case
● The subrack is equipped with VC legs to prevent the chassis from sliding after stacking
● A composite standard plug-in box can be installed inside the chassis
● When supplying, the box has been partially assembled
● Standard: 60297-3
● When the non-ventilated form is selected, the protection grade is IP42
Electronics Rack Enclosure is a crucial component in the world of electronic equipment. It provides a secure and organized environment for various electronic components, ensuring their proper functioning and protection from external factors. Our company, Beijing Rdekono Electronic Equipment Co., Ltd., is a professional supplier of mechanical structure solutions for electronic equipment, including Electronics Rack Enclosures.
Our Type A-I Series Subracks are designed to meet the highest standards of quality and functionality. These subracks serve as desktop cases, providing a sturdy and reliable platform for your electronic components. They are equipped with VC legs, which prevent the chassis from sliding after stacking, ensuring stability and safety during transportation and installation.
The subracks also feature a composite standard plugin box that can be installed inside the chassis. When supplied, the box has been partially assembled, saving you time and effort in assembly. The standard used for our subracks is 60297-3, ensuring compatibility with various electronic components.
In addition, when the non-ventilated form is selected, the protection grade of our subracks is IP42, providing excellent protection against dust and water splashes. The A-I type subrack side panel is made of integral aluminum plate, offering durability and resistance to corrosion.
Our company has several advantages that set us apart from our competitors. Firstly, we rely on our own product strength to successfully open up overseas markets in recent years. Our export products are distributed to countries such as the United States, Australia, Britain, Germany, Russia, Japan, and South Korea, and are well received by customers.
Secondly, our products have obtained numerous patents, reflecting our commitment to innovation and excellence. Our design team is a professional group based on the whole machine engineering technology platform. They possess a wide range of technical integration design capabilities and focus on researching the integrated development of the whole machine system. This ensures that our products are designed with user-friendliness, manufacturing efficiency, and cost-effectiveness in mind.
Our Electronics Rack Enclosures are suitable for various applications in the electronic industry. They can be used in electronic cabinets or boxes, providing a secure and organized environment for your electronic components. The chassis can also be equipped with a cover plate, allowing for horizontal or vertical hinged options depending on your specific requirements.
If you are interested in our Electronics Rack Enclosures or any other products offered by Beijing Rdekono Electronic Equipment Co., Ltd., please do not hesitate to contact us. Our dedicated technical team will be happy to provide customized solutions tailored to your specific needs. Through innovative design and advanced manufacturing technology, we aim to help our customers improve their product competitiveness and reduce costs.
Product Type: CASES
Product Family：Type-A
Rack Width: 2U、3U、4U、6U，42HP，84HP
Product order number

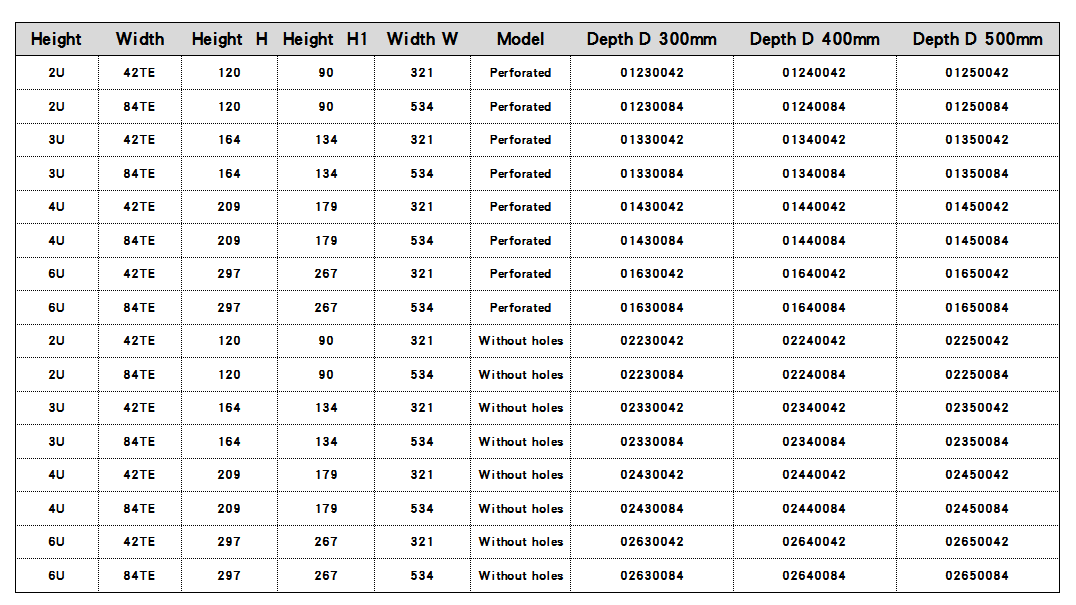

Product model and order number
| Height | Height | Height H | Height H1 | Width W | Model | Depth D 300mm | Depth D 400mm | Depth D 500mm |
| 2U | 42TE | 120 | 90 | 321 | Perforated | 01230042 | 01240042 | 01250042 |
| 2U | 84TE | 120 | 90 | 534 | Perforated | 01230084 | 01240084 | 01250084 |
| 3U | 42TE | 164 | 134 | 321 | Perforated | 01330042 | 01340042 | 01350042 |
| 3U | 84TE | 164 | 134 | 534 | Perforated | 01330084 | 01340084 | 01350084 |
| 4U | 42TE | 209 | 179 | 321 | Perforated | 01430042 | 01440042 | 01450042 |
| 4U | 84TE | 209 | 179 | 534 | Perforated | 01430084 | 01440084 | 01450084 |
| 6U | 42TE | 297 | 267 | 321 | Perforated | 01630042 | 01640042 | 01650042 |
| 6U | 84TE | 297 | 267 | 534 | Perforated | 01630084 | 01640084 | 01650084 |
| 2U | 42TE | 120 | 90 | 321 | Without holes | 02230042 | 02240042 | 02250042 |
| 2U | 84TE | 120 | 90 | 534 | Without holes | 02230084 | 02240084 | 02250084 |
| 3U | 42TE | 164 | 134 | 321 | Without holes | 02330042 | 02340042 | 02350042 |
| 3U | 84TE | 164 | 134 | 534 | Without holes | 02330084 | 02340084 | 02350084 |
| 4U | 42TE | 209 | 179 | 321 | Without holes | 02430042 | 02440042 | 02450042 |
| 4U | 84TE | 209 | 179 | 534 | Without holes | 02430084 | 02440084 | 02450084 |
| 6U | 42TE | 297 | 267 | 321 | Without holes | 02630042 | 02640042 | 02650042 |
| 6U | 84TE | 297 | 267 | 534 | Without holes | 02630084 | 02640084 | 02650084 |
Note: 1TE=5.08mm, 1U=44.45mm

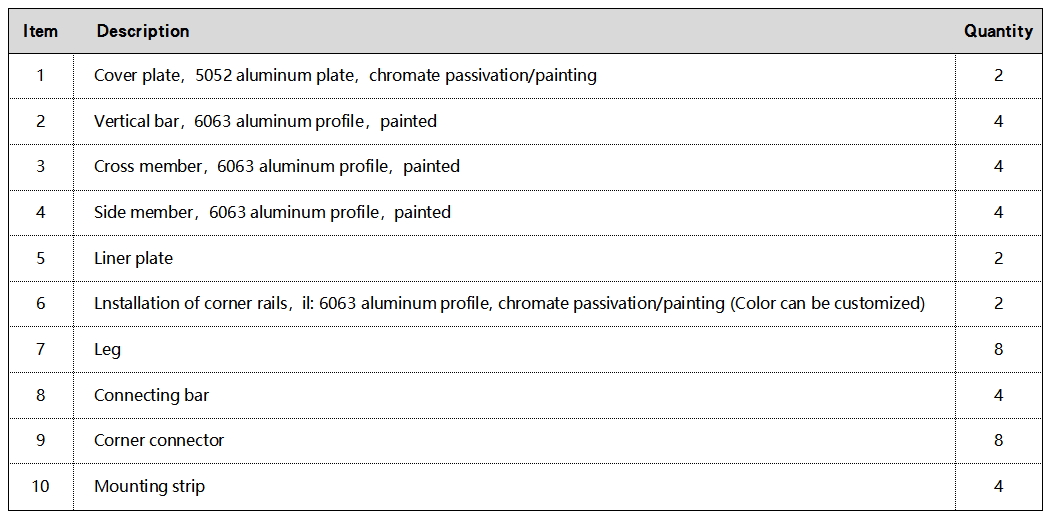

ITEM(S) DELIVERED
Delivery of this product includes the following item(s):
