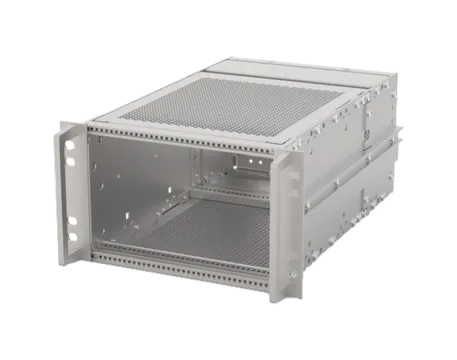

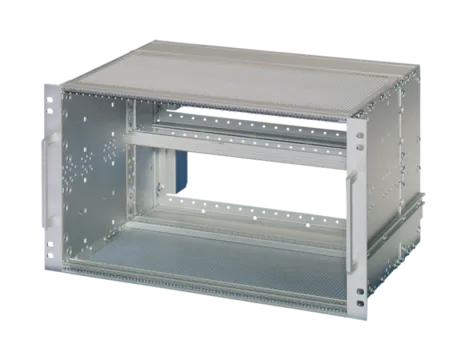

SNCF Series Subracks
Tested according to NF F61-005 and NF F60-002 standards.
3U, 6U, 21HP, 320mm deep, for board depth 220mm.
Subracks compliant with IEEE 1101.10 standard for Compact PCl systems.
This chassis is equipped with a shielding kit, which enhances the shielding effect after installation.
Our SNCF Shielded Subracks provide robust electromagnetic compatibility (EMC) protection, engineered specifically for demanding railway environments. To ensure reliable performance, these subracks are rigorously tested in accordance with NF F61-005 and NF F60-002 standards. This commitment to quality is backed by the technical expertise of Beijing Rdekono Electronic Equipment Co., Ltd., delivering trusted shielding solutions for critical rail applications.
Available in 3U and 6U heights
84HP width configuration
320mm depth for board depth of 220mm
1T = 4HP measurement standard
Comprehensive EMC shielding
Railway control systems
Signal processing equipment
Communication systems
Industrial automation in railway environments

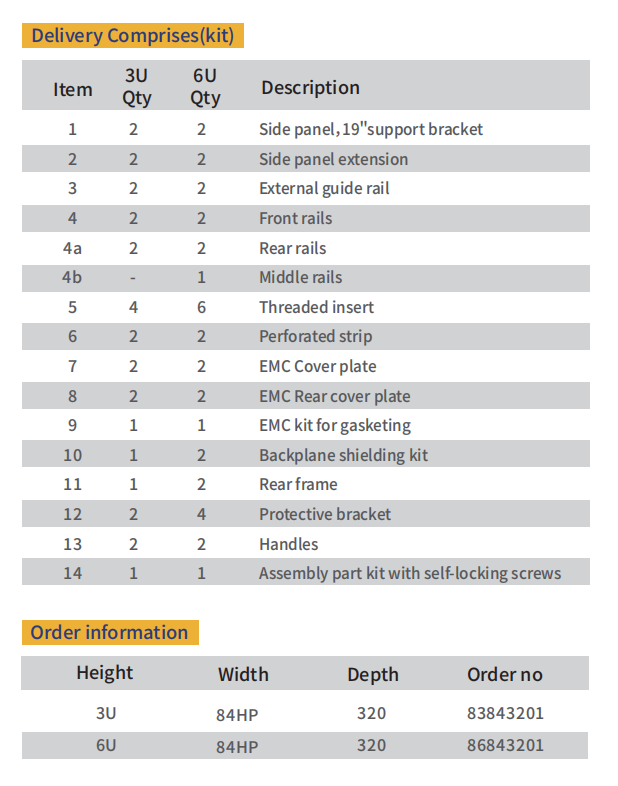

| Item | 3U Qty | 6U Qty | Description |
|---|---|---|---|
| 1 | 2 | 2 | Side panel, 19" support bracket |
| 2 | 2 | 2 | Side panel extension |
| 3 | 2 | 2 | External guide rail |
| 4 | 2 | 2 | Front rails |
| 4a | 2 | 2 | Rear rails |
| 4b | - | 1 | Middle rails |
| 5 | 4 | 6 | Threaded insert |
| 6 | 2 | 2 | Perforated strip |
| 7 | 2 | 2 | EMC Cover plate |
| 8 | 2 | 2 | EMC Rear cover plate |
| 9 | 1 | 1 | EMC kit for gasketing |
| 10 | 1 | 2 | Backplane shielding kit |
| 11 | 1 | 2 | Rear frame |
| 12 | 2 | 4 | Protective bracket |
| 13 | 2 | 2 | Handles |
| 14 | 1 | 1 | Assembly part kit with self-locking screws |
Tested according to NF F61-005 and NF F60-002 standards
3U, 6U, 21T, 320mm deep
Designed for board depth of 220mm
1T = 4HP
