SNCF Series Subracks
Tested according to NF F61-005 and NF F60-002 standards.

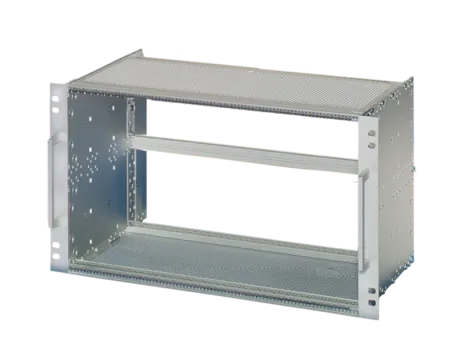

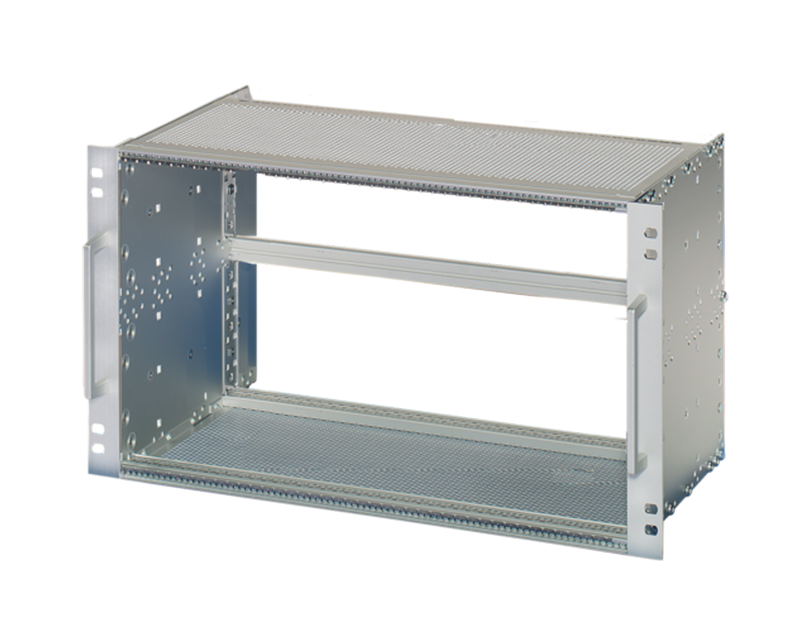

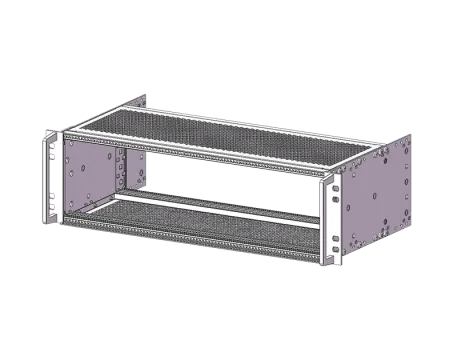

3U, 6U, 84T, 235mm deep, for board depth 160mm.
Subracks compliant with IEEE 1101.10 standard for Compact PCl systems.
This chassis is equipped with a shielding kit, which enhances the shielding effect after installation.
Welcome to the home of high-performance electronic subracks engineered for the most demanding environments. Our SNCF EMC Shielded Subracks are meticulously designed to provide superior protection and reliability for railway and industrial control systems, ensuring uninterrupted operation where it matters most.
Our subracks are not just enclosures; they are a complete shielding solution. Built to meet the rigorous standards of the railway industry, they guarantee performance integrity in the face of electromagnetic interference.
Rigorously Tested: Validated in accordance with NF F61-005 (EMC) and NF F60-002 (environmental conditions) standards, ensuring they can withstand the specific challenges of railway applications.
Standardized Design: Fully compliant with the IEEE 1101.10 standard for CompactPCI systems, guaranteeing mechanical interoperability and ease of integration.
Optimized Dimensions: Available in versatile 3U and 6U heights with an 84HP width and a 235mm depth, specifically designed to accommodate board depths of up to 160mm.
The primary role of these SNCF EMC Shielded Subracks is to protect sensitive electronic components from electromagnetic interference. The integrated shielding tapes and cover plates create a continuous Faraday cage, preventing both emissions and ingress of disruptive signals, which is critical for safety-critical train control systems.
Crafted for durability, the subrack features a solid mechanical structure that resists vibration and shock. The inclusion of threaded inserts and robust rails ensures your PCBs are securely mounted and remain connected even under strenuous operating conditions.
We deliver a fully comprehensive kit, eliminating the need for sourcing additional parts. Each package includes side panels, front and rear rails, handles for easy extraction, perforated strips for grounding, and all necessary shielding components and hardware for a straightforward and reliable assembly process.

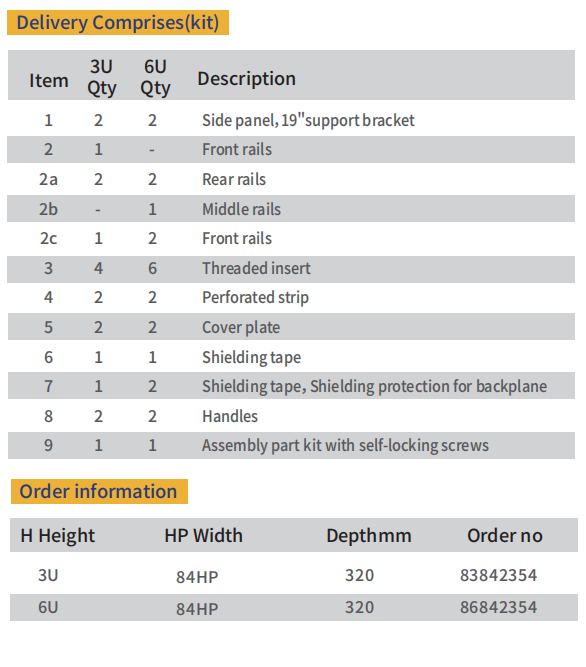

| Height | Width | Depth | Order Number |
|---|---|---|---|
| 3U | 84HP | 320 mm | 83842354 |
| 6U | 84HP | 320 mm | 86842354 |

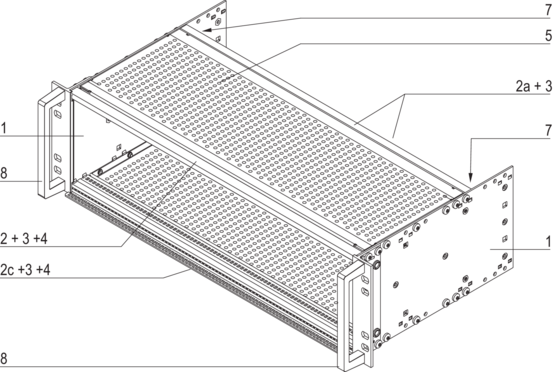

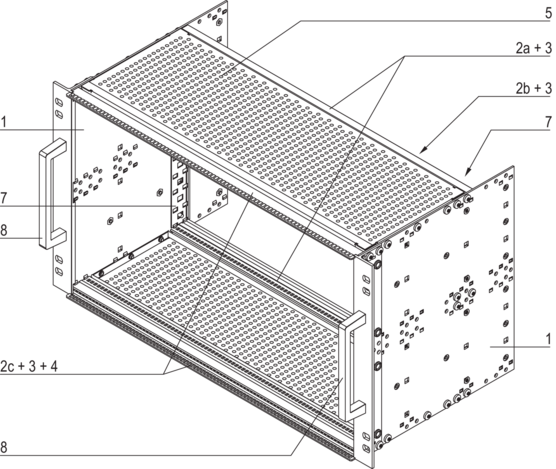

Your SNCF EMC Shielded Subrack kit contains all the components required for a fully assembled and shielded system. The kit includes side panels with 19-inch support brackets, front and rear rails (with an additional middle rail for the 6U model), threaded inserts, perforated strips, cover plates, specialized EMC shielding tape, handles, and a complete set of self-locking screws for secure assembly.
The SNCF EMC Shielded Subracks are the enclosure of choice for a wide range of critical applications, including:
Onboard Train Control and Management Systems
Railway Signaling and Interlocking Equipment
Trackside Communication and Control Units
Industrial Automation in Electrically Noisy Environments
Any application requiring robust, standards-compliant EMC protection.
Proven Reliability: Designed and tested specifically for railway standards, ensuring long-term performance.
Seamless Integration: Standard-compliant design allows for easy integration into existing racks and systems.
Complete Solution: Everything you need for a shielded assembly is included in one kit, saving time and reducing complexity.
Superior Protection: Our focus on comprehensive EMC shielding safeguards your sensitive electronics, minimizing downtime and failure risks.
Ready to secure your critical electronics? Contact the technical experts at Beijing Rdekono Electronic Equipment Co., Ltd. today to discuss your project requirements or to place an order for the reliable SNCF EMC Shielded Subracks.
