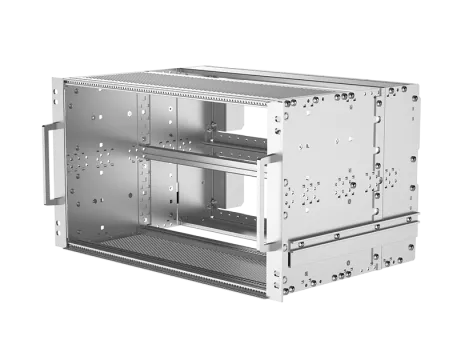

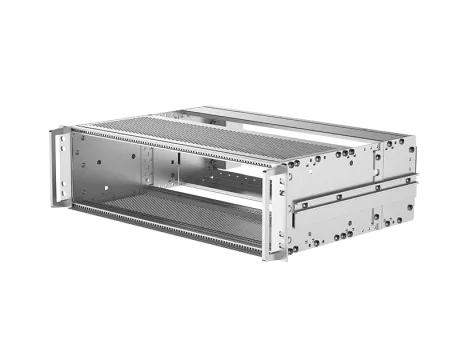

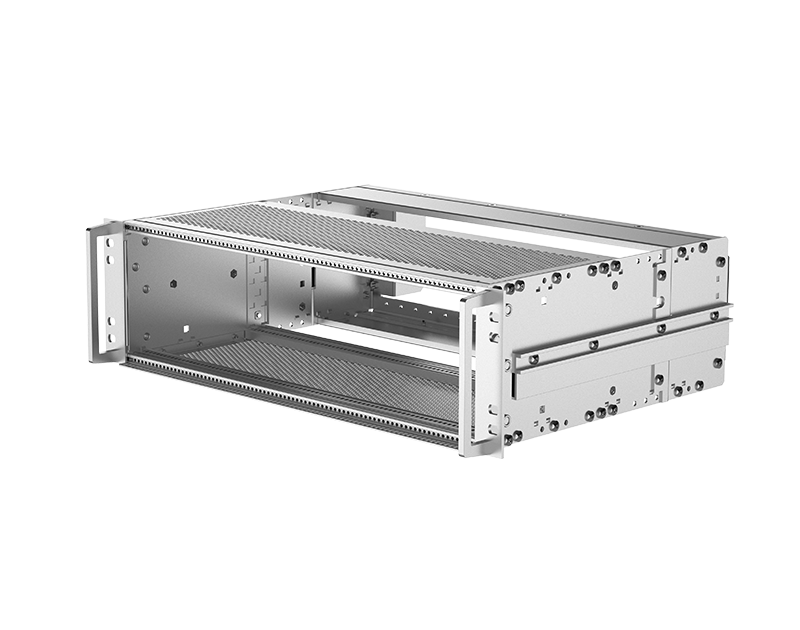

SNCF Series Subracks
Tested according to NF F61-005 and NF F60-002 standards.
3U, 6U, 21T, 320mm deep, for board depth 160mm.
Used in conjunction with sliding rails, installed on the cabinet to allow the chassis to be freely pulled out.
Subracks compliant with IEEE 1101.10 standard for Compact PCl systems.
Engineered for critical applications in rail transport and industrial environments, our SNCF-compliant CompactPCI shielded subracks deliver robust mechanical construction and superior electromagnetic compatibility. These subrack systems are validated against stringent railway standards, ensuring reliable performance in demanding operational conditions.
Key Features & Benefits
Railway Compliance: Independently tested and certified in accordance with NF F61-005 and NF F60-002 standards for railway applications.
CompactPCI Standardization: Fully compliant with the IEEE 1101.10 specification, guaranteeing interoperability with standard CPCI components.
Optimized EMC Shielding: Integrated shielding solutions, including cover plates and gasketing kits, minimize electromagnetic interference for enhanced system integrity.
Robust Mechanical Design: A sturdy structure with reinforced rails and protective brackets provides excellent vibration and shock resistance.
Modular & Scalable: Available in 3U and 6U heights with a 320mm depth, supporting board depths of 160mm for flexible system configuration.

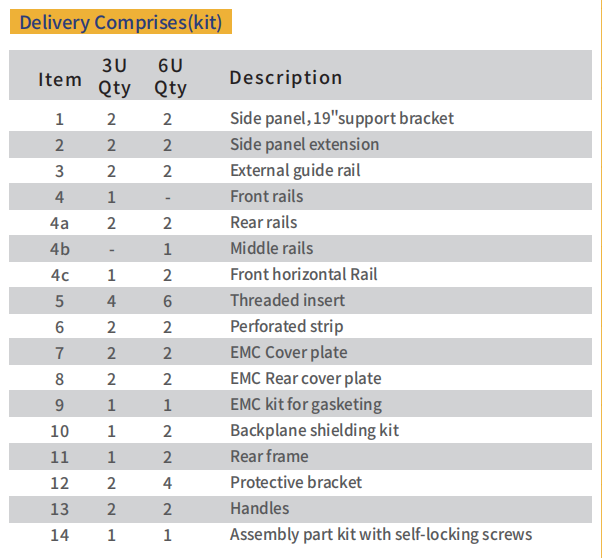

Complete System Solution: Supplied as a comprehensive kit with all necessary components for full assembly, including handles for easy extraction.
Technical Specifications
| Attribute | Specification |
|---|---|
| Standards | IEEE 1101.10, NF F61-005, NF F60-002 |
| Available Heights | 3U, 6U |
| Width | 84HP |
| Chassis Depth | 320 mm |
| Supported Card Depth | 160 mm |

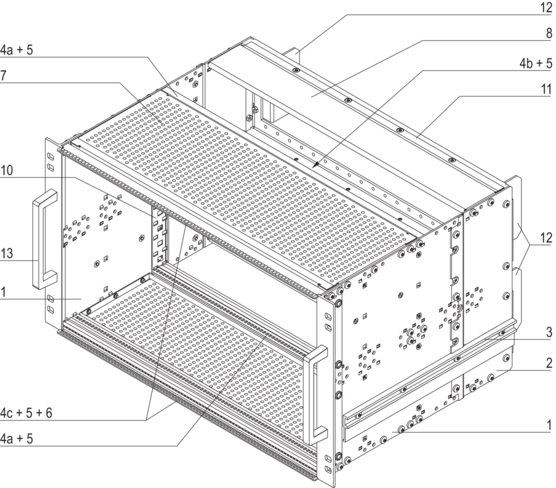

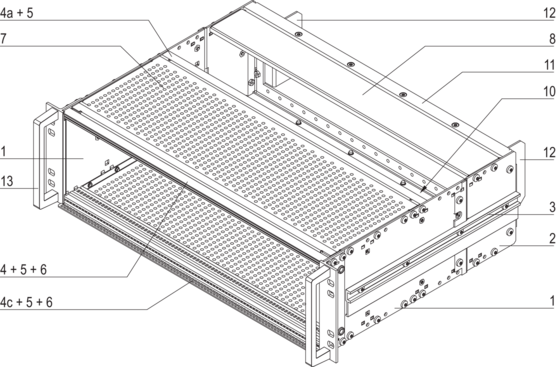

Ordering Configuration

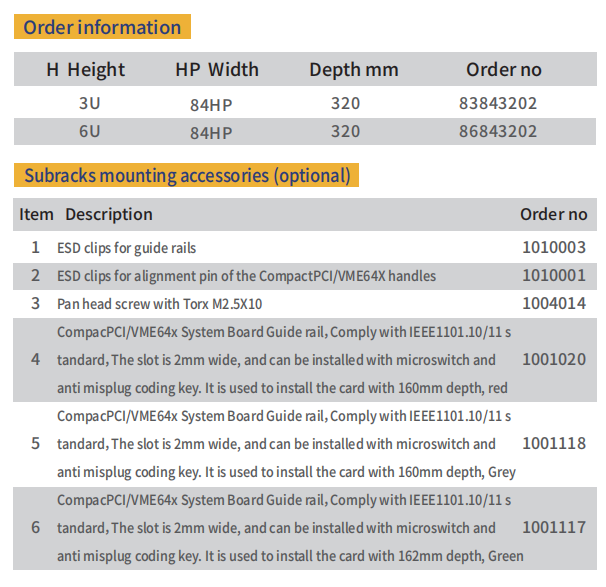

| Height | HP Width | Depth (mm) | Order Number |
|---|---|---|---|
| 3U | 84HP | 320 | 83843202 |
| 6U | 84HP | 320 | 86843202 |
Enhance Your System with Accessories
Maximize functionality and safety with our selection of optional accessories:
ESD Protection: Clip-on ESD contacts for guide rails and connector alignment pins to safeguard sensitive electronics.
Secure Fastening: Specialized Torx pan-head screws for reliable and tam-resistant assembly.
Precision Guidance: A range of standardized system board guide rails, color-coded for different card depths (160mm, 162mm) and featuring slots for microswitches and anti-misplug coding keys.
Typical Applications
Onboard and trackside railway control systems
Mission-critical industrial computing and automation
Telecommunication infrastructure
Defense and aerospace electronics
Any application requiring high immunity to harsh environmental and EMC conditions
