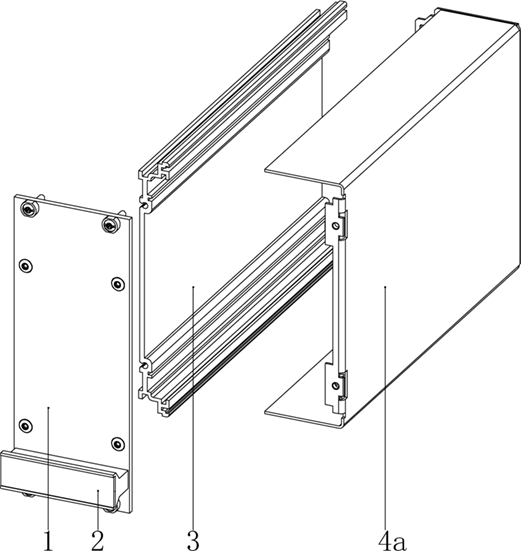

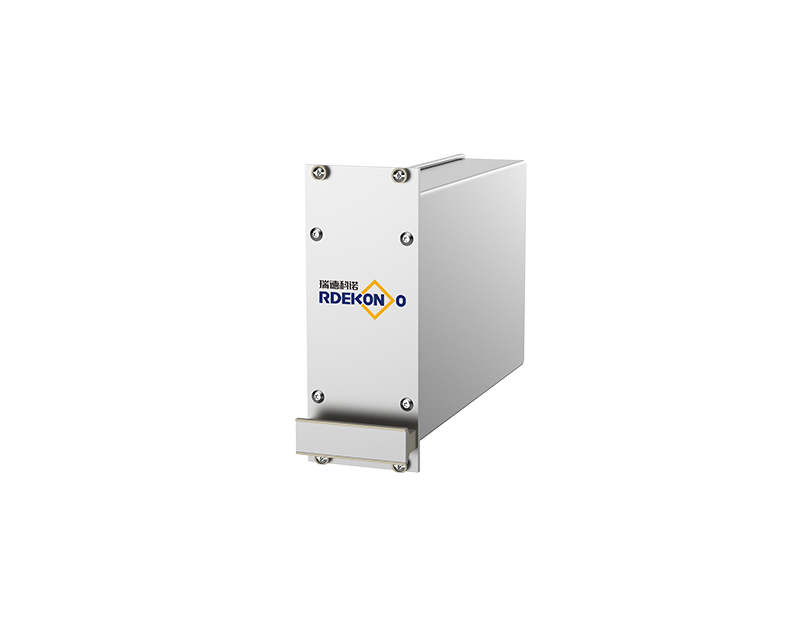

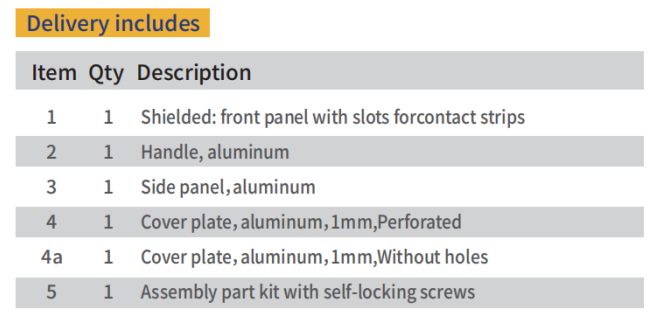

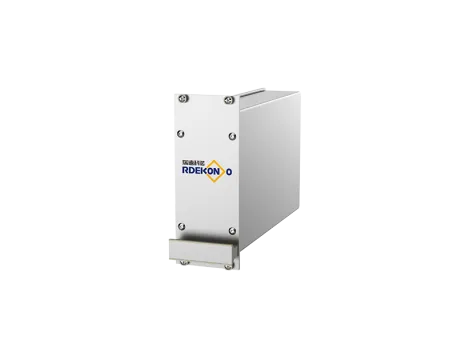

Shielded plug-in units Series Subracks
For circuit board protection against physical damage and mechanical damage.
Front panel is shielded orunshielded.
Suitable for Subrack cases and instrument cases.
Robust Protection - Shields PCBs from physical & mechanical damage
EMI Shielding Options - Available with shielded or unshielded front panels
Dual Size Support - Compatible with 3U and 6U subrack cases
Standard Compliance - Connectors meet EN 60603 (DIN 41612) standards
Product Name: Physically Protected Shielded Plug-in Units
Core Function: Professional enclosure solution for circuit board protection in subrack and instrument cases, providing comprehensive physical and mechanical damage prevention.
Detailed Description:
Our shielded plug-in units offer reliable protection for sensitive electronic components in demanding industrial environments. Designed for both 3U and 6U subrack configurations, these units safeguard PCBs against physical stress and mechanical damage while providing optional EMI shielding. With compatibility for standard PCB sizes and certified connectors, they ensure seamless integration into existing systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Protection Type | Physical & Mechanical Damage Protection |
| Front Panel Options | Shielded / Unshielded |
| Compatible Cases | Subrack Cases, Instrument Cases |
| Subrack Compatibility | 3U, 6U |
| Supported PCB Sizes | 100×160mm, 100×220mm |
| Connector Standard | EN 60603 (DIN 41612) |
| Connector Types | B, C, D, F, H, R |

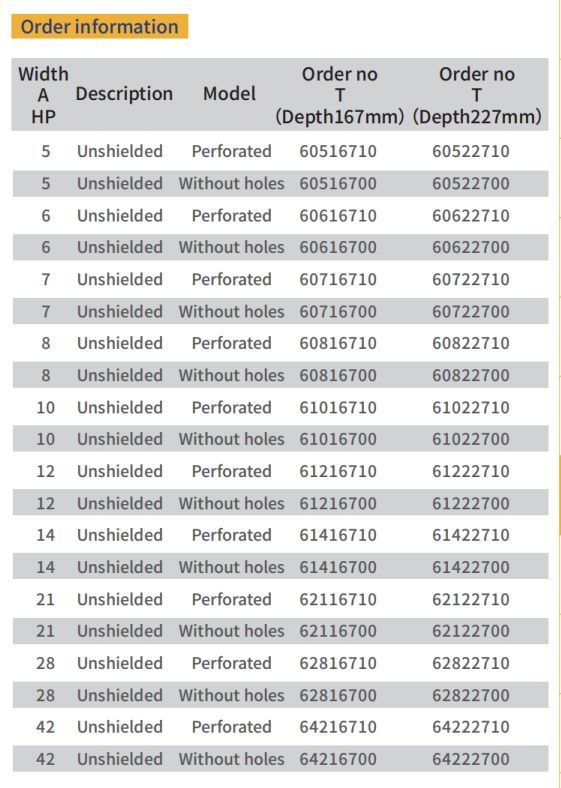

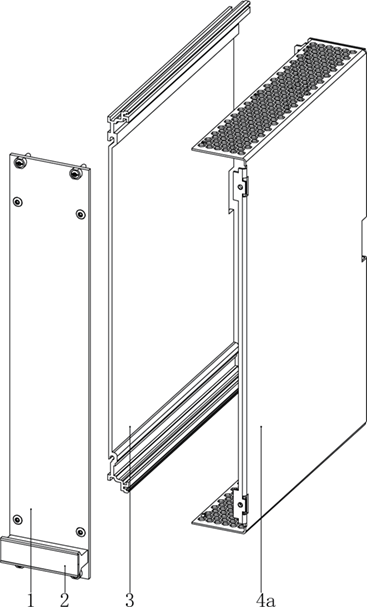

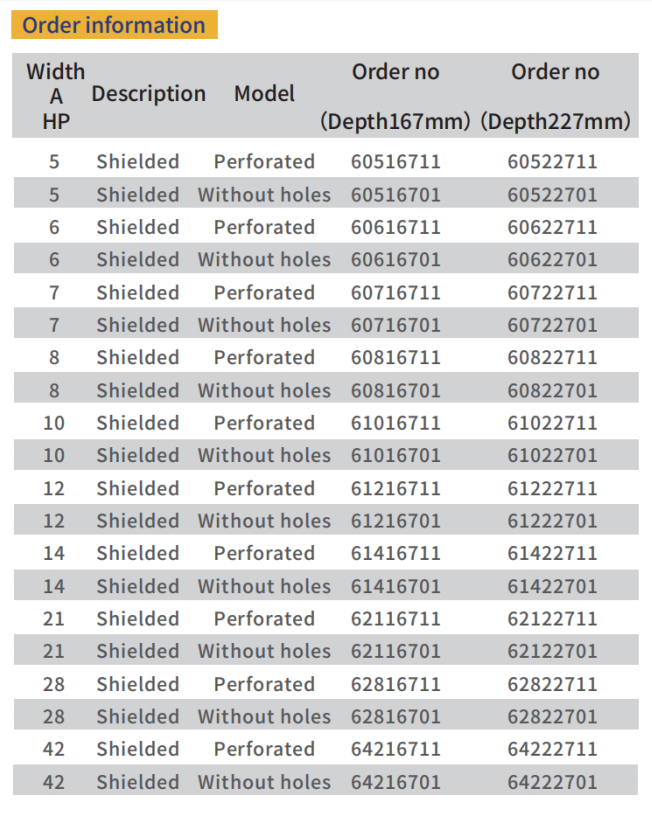

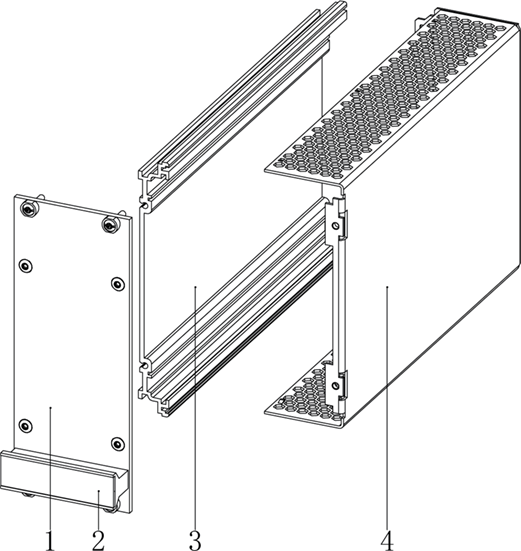

| Cover Plate Options | Perforated, Without Holes |
Applications & Benefits
Ideal Applications:
Industrial control systems
Test and measurement equipment
Telecommunications infrastructure
Power distribution systems
Railway and transportation electronics
Key Advantages:
Enhanced Reliability - Protects sensitive electronics in harsh environments
Flexible Configuration - Multiple sizing and shielding options
Easy Integration - Standard-compliant connectors ensure compatibility
Optimized Thermal Management - Choice of ventilated or solid covers

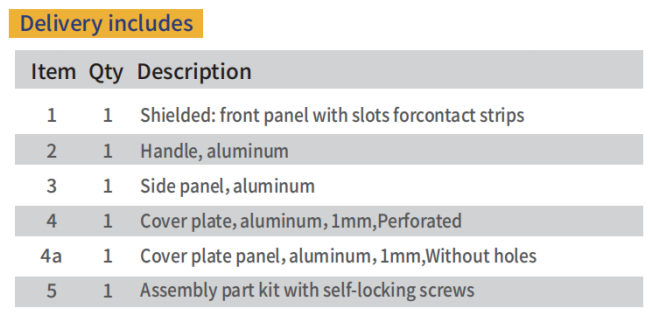

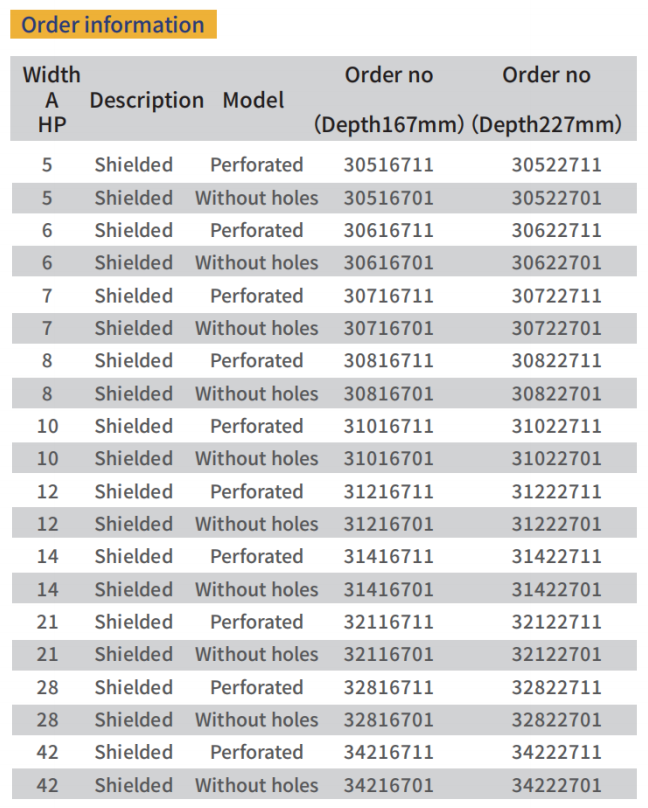

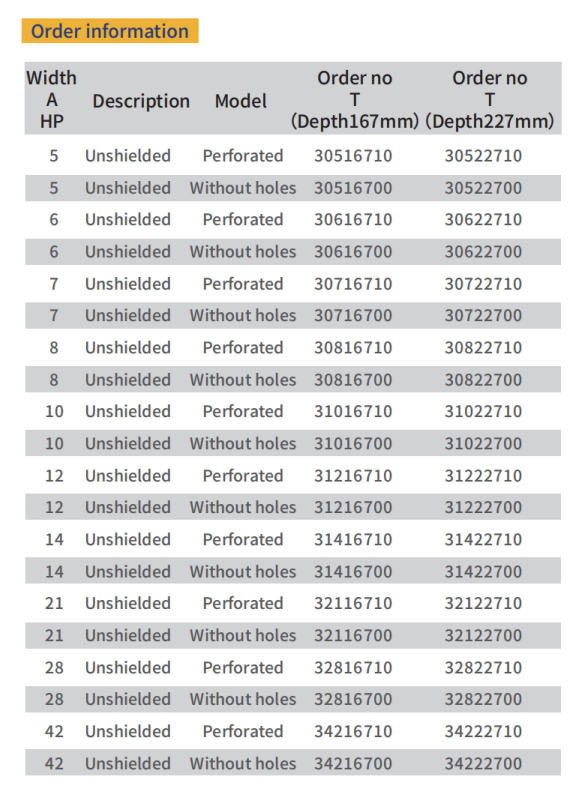

Configuration Options
Subrack Height: 3U or 6U configurations
PCB Size: 100×160mm or 100×220mm
Front Panel: Shielded or unshielded versions
Cover Plate: Perforated (for ventilation) or solid (for maximum protection)
Compliance & Quality
Connectors comply with EN 60603 (DIN 41612) standard
Compatible with types B, C, D, F, H, R connectors
Industrial-grade construction for reliable performance

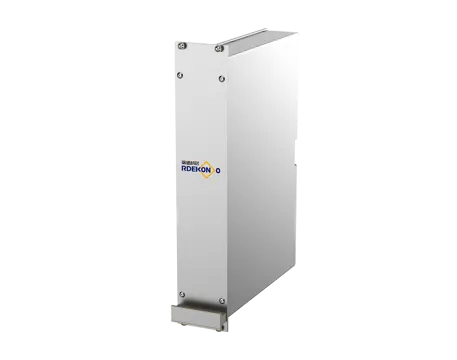

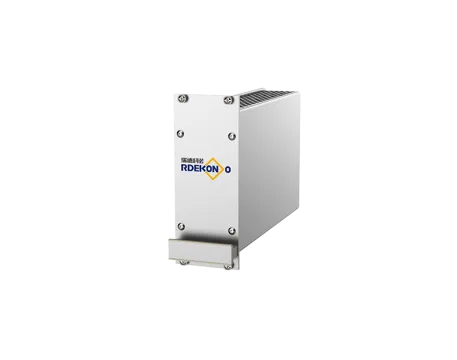

3U Subrack

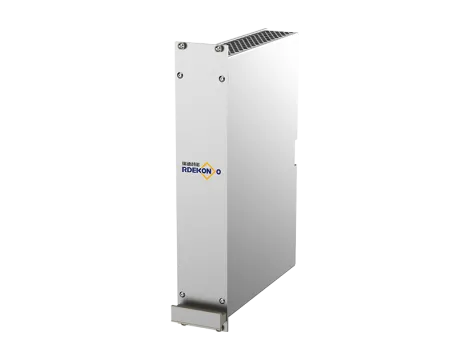

6U Subrack
