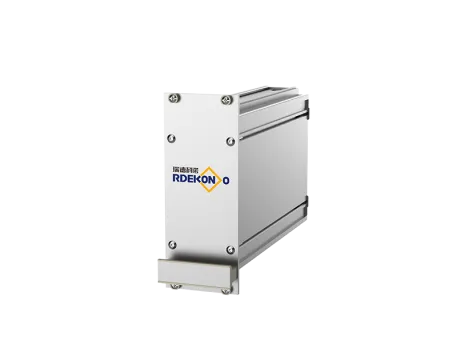

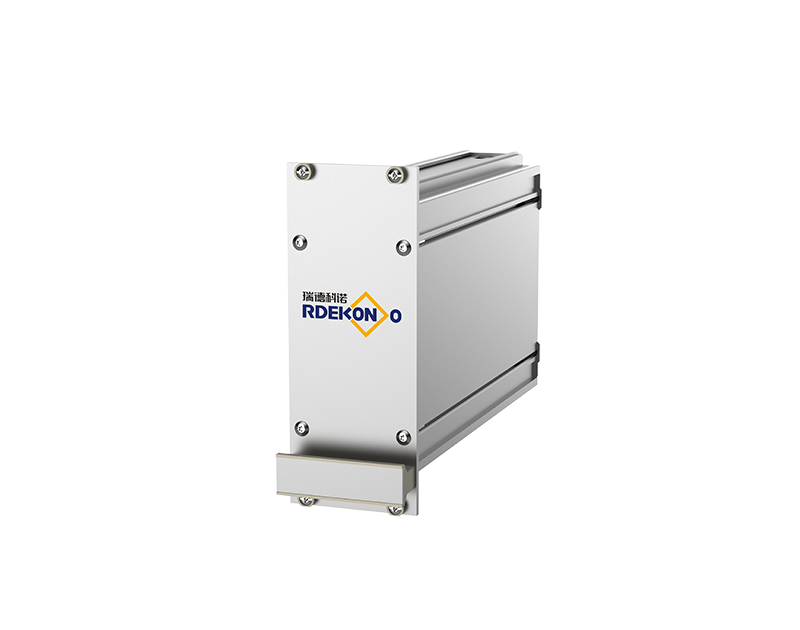

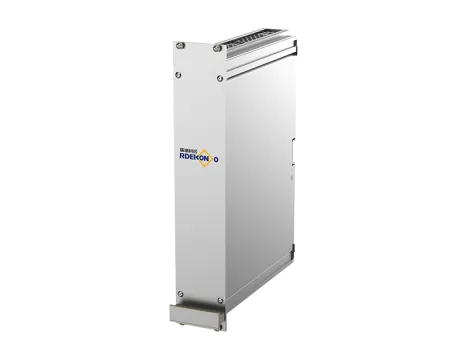

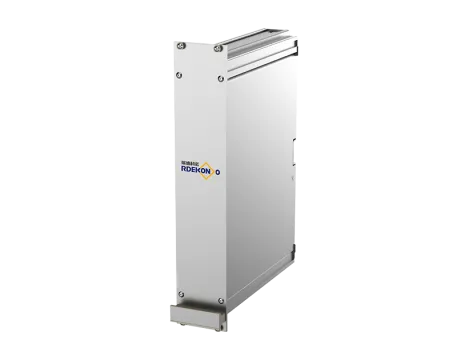

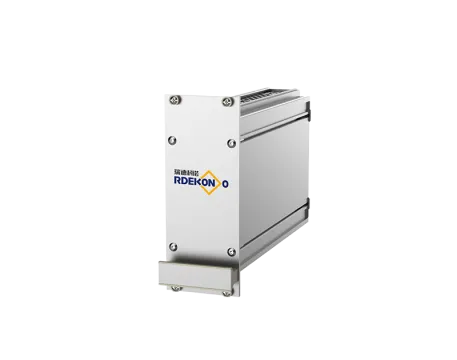

Shielded plug-in units Series Subracks
For circuit board protection against physical damage and mechanical damage.
Front panel is shielded orunshielded.
Suitable for Subrack cases and instrument cases.
In the area of framing shielded plug-in units, Beijing Rdekono Electronic Equipment Co., Ltd. excels. Our shielded enclosures offer exceptional performance and reliability, ensuring the utmost protection for sensitive electronic components.
Rdekono is a trusted partner specializing in mechanical structure solutions for electronic equipment. Our diverse product range includes Standard Subrack, Custom Enclosure, Cabinet, and Accessories, all tailored to meet your specific needs. As industry leaders, we are dedicated to delivering superior quality and service.
For circuit board protection against physical damage and mechanical damage.
Front panel is shielded orunshielded.
Suitable for Subrack cases and instrument cases.
Use PCB board size: 100x160 or100x220.
When using this Shielded plug-in units, the type of connectorshould comply with EN 60603(DIN 41612), types;B, C, D, F, H, Rstandard.
The height of the components on the PCB is<8.5mm when the 5HP module box is selected.

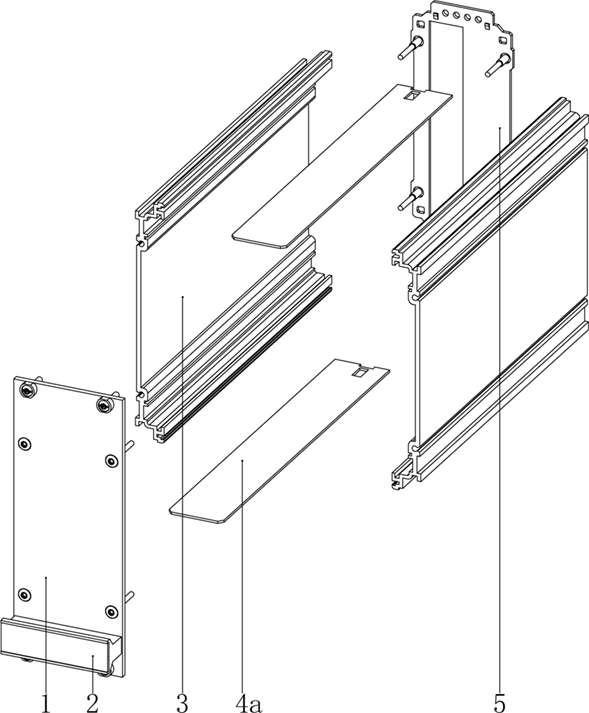

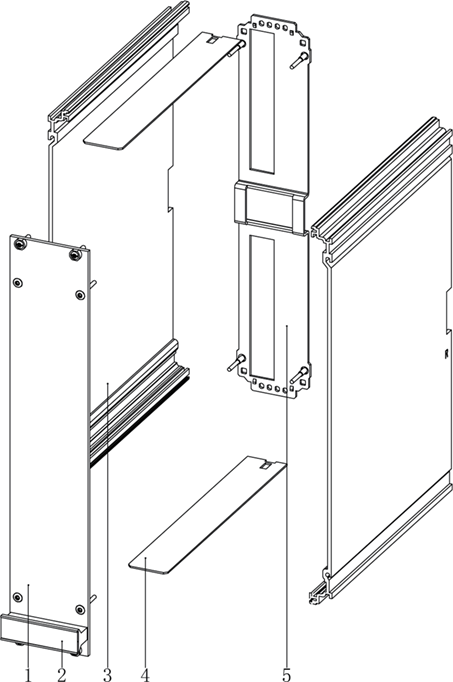

The cover plate is divided into two types: perforated and without holes
We possess a wide range of patents and have a team of skilled designers who specialize in comprehensive machine engineering technology and the overall advancement of complete system solutions. This includes usability, structural, heat dissipation, electromagnetic shielding, power distribution, reliability protection, and other professional design areas.
We collaborate closely with our clients to comprehend their specific requirements and deliver customized solutions.
We have expanded into overseas markets, including the United States, Australia, Britain, Germany, Russia, Japan, and South Korea, with our export products receiving widespread acclaim for their performance and reliability.
Experience the difference of working with Beijing Rdekono Electronic Equipment Co., Ltd. Contact us today to discuss your specific requirements and discover how our comprehensive solutions can elevate your electronic equipment to new levels of excellence. Trust us to be your reliable partner in achieving success in the dynamic world of electronic equipment.
