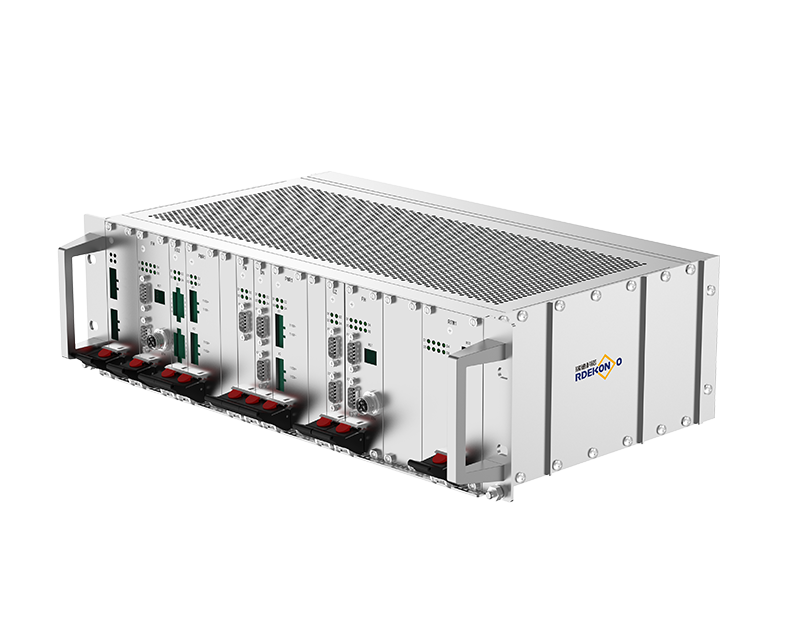

Rugged Subracks Side Panel
Ruggedized subracks with lightweight

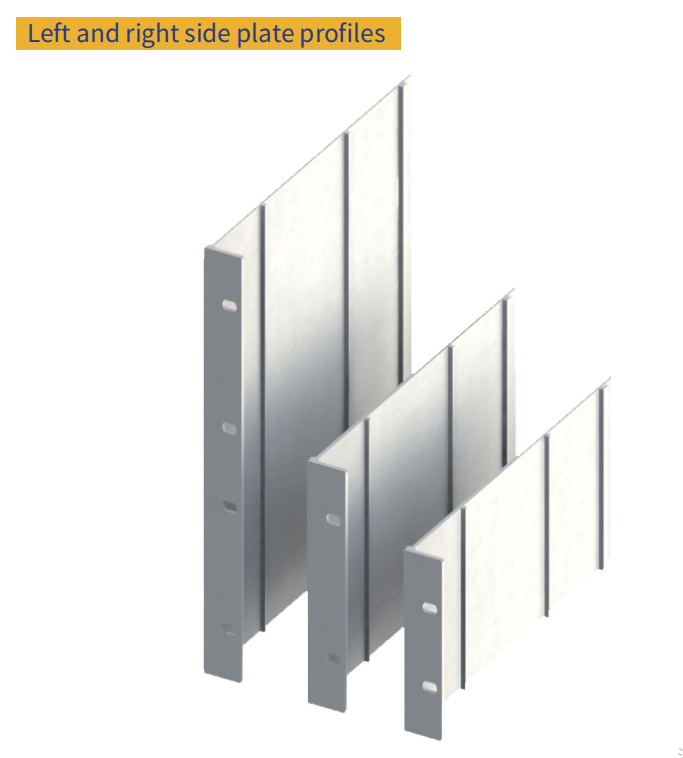

Front bracket and side plate are designed in an integrated way, and the stiffener designis added, so the structure is strong, Obvious degree improvement (see the figure below).
As a leading manufacturer in the field, Rdekono offers top-quality mechanical structural solutions for electronic devices. One of our notable offerings is the premium rugged EMC subrack components, which are well-liked for their exceptional design and performance. These panels are suitable for use in chassis and can also be combined with other components of BEG and EG+ subracks. They fulfill EMC standards.
Ruggedized subracks with lightweight
Front bracket and side plate are designed in an integrated way, and the stiffener designis added, so the structure is strong, Obvious degree improvement (see the figure below).
This reinforced subracks side panel can be used in conjunction with other components of BEG, EG+ subracks, and is relatively lightweight.
EMC electromagnetic compatibility structure design meets the requirements of EMC demand.
Meet thevibration and impact test standards IEC 61587-1, 50155, BN411002, NF67012, NF F67002, electromagnetic compatibility VG95373, Part5 Test Standards.
Suitable for board depths of 160 mm and 220 mm (depending on subracks depth)
Support the installation of cooling fans (3U+1U) and (3U+3U+1U)

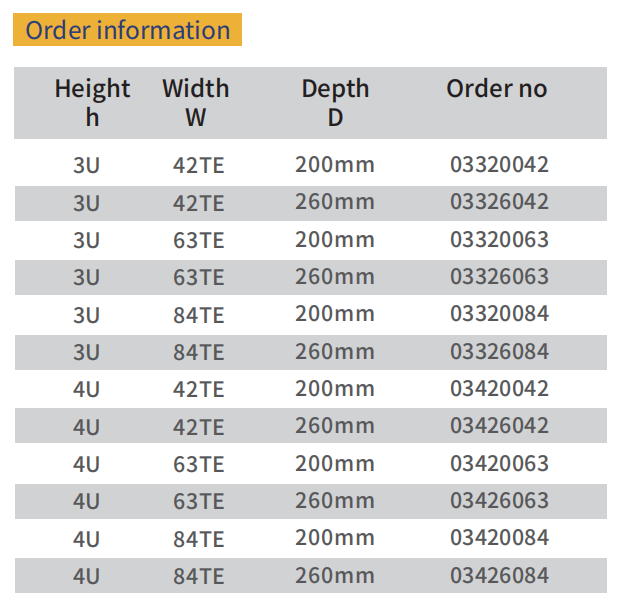

| Orderinformation | |||
| Height h | Width W | Depth D | Order no |
| 3U | 42TE | 200mm | 03320042 |
| 3U | 42TE | 260mm | 03326042 |
| 3U | 63TE | 200mm | 03320063 |
| 3U | 63TE | 260mm | 03326063 |
| 3U | 84TE | 200mm | 03320084 |
| 3U | 84TE | 260mm | 03326084 |
| 4U | 42TE | 200mm | 03420042 |
| 4U | 42TE | 260mm | 03426042 |
| 4U | 63TE | 200mm | 03420063 |
| 4U | 63TE | 260mm | 03426063 |
| 4U | 84TE | 200mm | 03420084 |
| 4U | 84TE | 260mm | 03426084 |

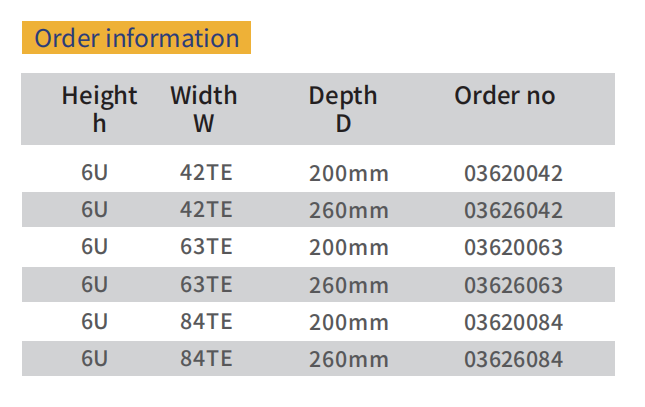

| Order information | |||
| Height h | Width W | Depth D | Order no |
| 6U | 42TE | 200mm | 03620042 |
| 6U | 42TE | 260mm | 03626042 |
| 6U | 63TE | 200mm | 03620063 |
| 6U | 63TE | 260mm | 03626063 |
| 6U | 84TE | 200mm | 03620084 |
| 6U | 84TE | 260mm | 03626084 |

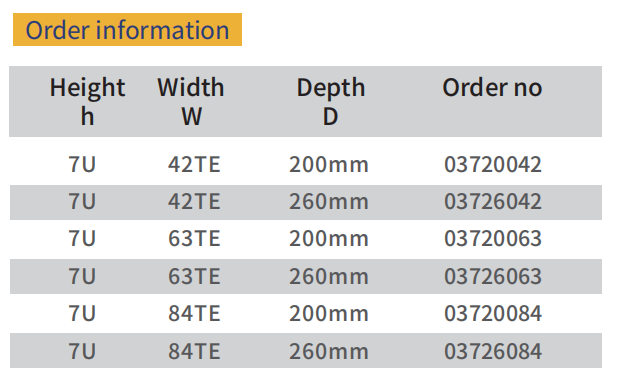

| Order information | |||
| Height h | Width W | Depth D | Order no |
| 7U | 42TE | 200mm | 03720042 |
| 7U | 42TE | 260mm | 03726042 |
| 7U | 63TE | 200mm | 03720063 |
| 7U | 63TE | 260mm | 03726063 |
| 7U | 84TE | 200mm | 03720084 |
| 7U | 84TE | 260mm | 03726084 |
We take pride in our ability to provide customized solutions tailored to your specific requirements. Our dedicated technical team excels in integrating design innovation and advanced manufacturing technology to meet your unique needs. With our expertise, we can help you improve your product competitiveness while reducing time-to-market.
Our commitment to excellence has enabled us to establish a strong presence in both domestic and international markets, with our export products being highly regarded by customers in the United States, Australia, Britain, Germany, Russia, Japan, and South Korea. For inquiries about our reinforced rugged EMC subrack side panels,, please reach out to our team.
