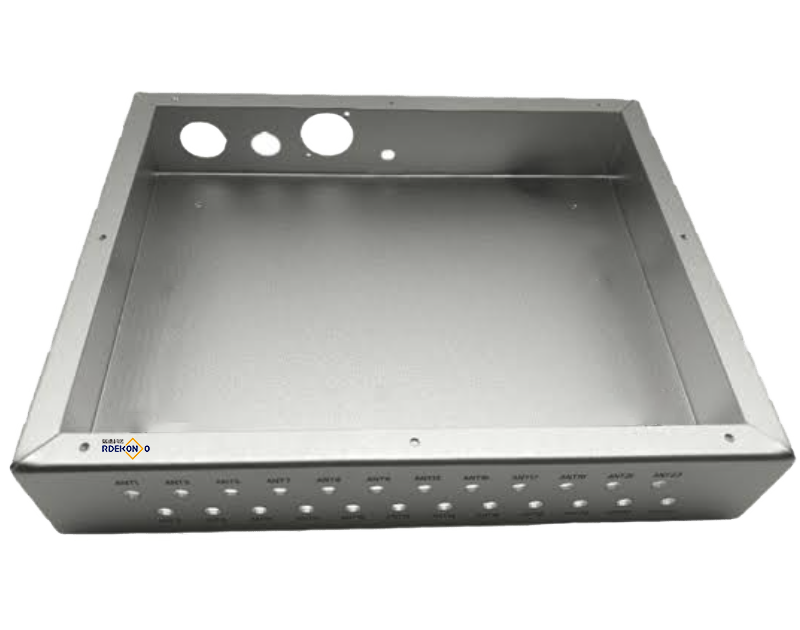

Sheet Metal Chassis

FAQ:

I. Design & Selection

Q1: What is the difference between a sheet metal chassis and a die-cast chassis? How do I choose between them?

A1: The main differences are as follows:

Recommendation: For small batches (<1,000 units), frequent design iterations, or fast-turnaround requirements, sheet metal is the preferred choice. For mass production (>5,000 units) with stable designs, die-casting may offer better cost efficiency.

Q2: How do I select the right material for a sheet metal chassis?

A2: Common materials and their applications are as follows:

• SPCC (Cold-Rolled Steel): Lowest cost, good formability, suitable for general industrial chassis. Requires rust-proof treatment (e.g., painting).

• SGCC (Hot-Dip Galvanized Steel): Pre-coated with zinc layer, offering better corrosion resistance than SPCC. Suitable for outdoor or humid environments.

• SUS304 (Stainless Steel): Excellent corrosion resistance with a bright finish. Ideal for medical devices, food machinery, or high-end instruments, but at a higher cost.

• Aluminum Sheet (5052/6061): Lightweight with good thermal dissipation. Suitable for portable devices where weight is a concern or products requiring good heat dissipation.

Q3: What is the minimum wall thickness for a sheet metal chassis?

A3: There is no absolute "minimum thickness" in sheet metal fabrication, but the typical range is 0.5mm–6mm. General guidelines:

• Small chassis or internal brackets: 0.8mm–1.5mm

• Standard 19-inch racks: 1.2mm–2.0mm

• Large cabinets or load-bearing structures: 2.0mm–4.0mm

Note: Thinner materials are more challenging to control for bending and welding distortion.

II. Manufacturing Processes

Q4: What is the difference between laser cutting and CNC punching? How do I choose?

A4:

Recommendation: For prototyping and small batches (<500 units), laser cutting is recommended. For mass production (>2,000 units) with regular shapes, CNC punching offers higher efficiency.

Q5: What are the key design considerations for sheet metal bending?

A5: Key points to consider in bending design:

• Minimum Flange Height: Should be at least 4 times the material thickness; otherwise, stable forming is difficult.

• Bend Radius: Recommended inside radius should be no smaller than the material thickness to avoid cracking.

• Avoid Interference: Bends should be positioned at a sufficient distance from edges to prevent material tearing.

• Springback Consideration: Aluminum and stainless steel have greater springback, requiring compensation in tool design.

Q6: What are the common welding methods for sheet metal chassis?

A6: Common welding methods include:

• MIG Welding (CO₂ Gas Shielded): High efficiency, low cost, suitable for general carbon steel chassis, but with greater distortion requiring post-weld grinding.

• TIG Welding (Argon Arc): High-quality welds with a clean appearance, suitable for stainless steel and aluminum chassis, but slower and more costly.

• Spot Welding (Resistance Welding): Used for lap joint fixation, fast and wire-free, suitable for internal bracket welding, but limited to thin sheets.

• Laser Welding: High precision, small heat-affected zone, minimal distortion, ideal for high-end precision chassis, but requires significant capital investment.

Q7: How do you control welding distortion?

A7: Controlling welding distortion is a key focus in sheet metal fabrication. Common measures include:

• Reserving distortion allowances during design

• Using symmetrical welding sequences to reduce stress concentration

• Employing welding fixtures to secure workpieces

• Using intermittent welding instead of continuous welding to reduce heat input

• Performing post-weld straightening (e.g., flattening, hammering to relieve stress)

• Applying heat treatment (annealing) when necessary to eliminate residual stress

III. Surface Finishing

Q8: What are the common surface finishing options for sheet metal chassis?

A8:

Q9: What is the difference between powder coating and liquid painting?

A9:

• Powder Coating (Electrostatic Powder Spraying): Uses solid powder paint, applied via electrostatic charge and cured at high temperature. Coating thickness is 60–120μm, providing high hardness, wear resistance, and corrosion resistance. It is environmentally friendly (solvent-free) and is the mainstream choice for industrial chassis.

• Liquid Painting (Wet Spraying): Uses liquid paint with thinner coating thickness (20–40μm). Offers better surface gloss and a wider color selection, but has greater environmental impact and relatively higher cost.

IV. EMC & Thermal Management

Q10: How does a sheet metal chassis achieve electromagnetic shielding?

A10: As a conductive material, sheet metal has inherent electromagnetic shielding capability. To achieve effective shielding, consider the following:

• Conductive Continuity: Ensure good electrical contact between all panels, doors, and covers; use conductive gaskets or finger stock at joints.

• Slot/Gap Control: Gap length should be less than 1/20 of the shielding target wavelength, especially critical at high frequencies.

• Ventilation Hole Design: Use honeycomb ventilation panels to allow airflow while maintaining shielding effectiveness.

• Grounding: The chassis must be reliably grounded to provide a low-impedance discharge path.

• Avoid Long Slots: Avoid continuous long slots in critical areas.

Q11: How do you design a sheet metal chassis for heat dissipation?

A11: Thermal management for sheet metal chassis is achieved through the following methods:

• Natural Convection: Design cooling fins or corrugated structures on the chassis surface to increase heat dissipation area.

• Forced Air Cooling: Provide ventilation openings and install fans to create convective airflow channels.

• Heat Source Isolation: Position high-heat-generating components near ventilation openings.

• Material Selection: Aluminum chassis dissipates heat significantly better than carbon steel (aluminum thermal conductivity ≈ 237 W/m·K vs. carbon steel ≈ 45 W/m·K).

  Ventilation Layout: Arrange openings following the natural rise principle of hot air—"intake from below, exhaust from above."
