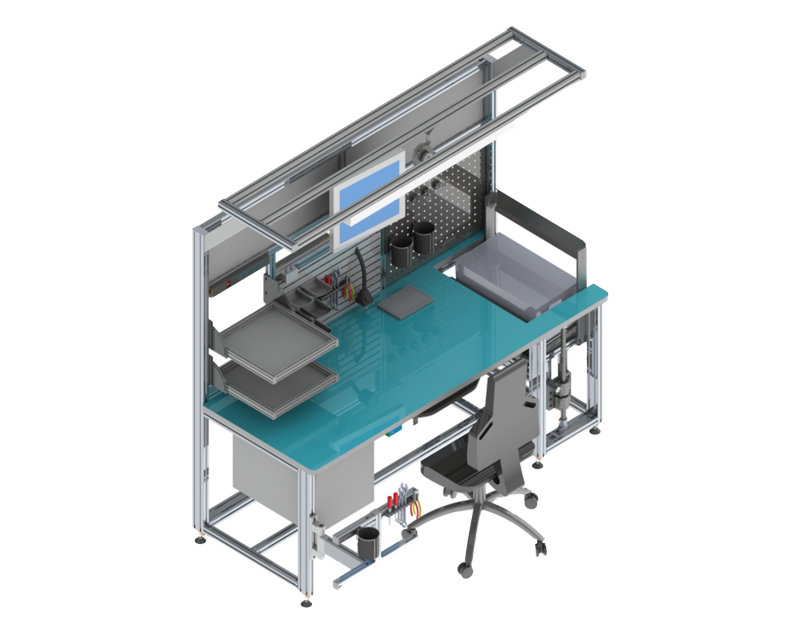

Modular Industrial Workbench (DLB Series)

Complete Customization with Plug-and-Play Accessories:
The workbench can be equipped with a comprehensive suite of optional modules to create a true turnkey workstation:

• Back Panel Systems (GB Series): Choose from square-hole panels (compatible with standard hooks for hanging tools like screwdrivers, wrenches, and pliers), louvered panels (ideal for small parts bins and organized storage), slot panels, or combination panels for ultimate versatility.

• Lighting (ZM Series): Select from vapor-tight tri-proof LED lights or standard workbench lamps to ensure optimal illumination and reduce eye strain.

• Power & Connectivity: Integrated power outlet strips (3, 5, or 8 outlets) and optional network ports (DLB071) keep your tools and devices powered and connected.

• Pneumatic & Tool Management: Built-in air distributors (DLB064 with 4 ports) supply pneumatic tools, while tool balancers (DLB021) suspend heavy tightening tools, reducing operator fatigue and improving productivity.

• ESD Protection: For sensitive electronics environments, the optional ESD wrist strap (DLB031) safely grounds static electricity,protecting components from electrostatic discharge damage.

• AIO Mount: The multi-angle adjustable all-in-one computer mount (DLB041) allows for seamless integration of digital work instructions, schematics, or MES interfaces.

• Storage Solutions: Optional 2- or 3-drawer cabinets (DLB052/DLB053) provide secure, organized storage for tools and documents.

• Mobility & Stability: Choose between heavy-duty leveling feet (D1) for fixed positioning or retractable casters (D2) for easy relocation.

• Waste Management: Custom sheet metal or standard commercial waste bins (DLB081/DLB082) keep your workspace clean and clutter-free.

Built for Efficiency, Engineered for Safety:
Every component of the DLB Series is designed to enhance workflow, improve safety, and adapt to evolving operational needs. Whether you are building a precision assembly line, a testing station, or a maintenance depot, this modular workbench delivers the performance, durability, and configurability you require.

Key Advantages:

• Modular construction allows for future upgrades and reconfiguration

• Heavy-duty aluminum frame with excellent load capacity and stability

• ESD-safe options for electronics manufacturing

• Integrated pneumatic, power, and data connectivity

• Ergonomic design reduces worker fatigue and boosts productivity

Application Scenarios

This workbench is ideally suited for inspection, maintenance, and product assembly operations in the aerospace, rail transportation, automotive, and robotics industries.

Typical Applications:

1. Assembly Workstation – For assembly of components and small-to-medium-sized products.

2. Maintenance & Repair Workstation – For servicing and overhaul of components and small-to-medium-sized products.

3. Inspection & Quality Control Workstation – For checking and verifying components and small-to-medium-sized products.

4. Welding & Dispensing Workstation – For welding and adhesive dispensing operations on components and small-to-medium-sized products.

5. Warehousing & Logistics Workstation – For sorting, material verification, and packaging tasks in storage and distribution centers.

FAQ:

I. Product Selection & Configuration

Q1: How do I choose the right worktop material for my application?

A1: The three worktop options are designed for different use cases:

• TM11 Compact Laminate (High-Pressure Laminate): Features a dense, wear-resistant, and easy-to-clean surface with good chemical resistance. Ideal for electronics assembly, precision inspection, and cleanroom environments.

• TM12 Multi-ply Wood Board with Rubber Mat: The rubber mat provides anti-slip and cushioning protection, suitable for placing precision or fragile components. The wood board offers high strength and is ideal for general mechanical assembly and maintenance.

• TM13 Carbon Steel: Offers the highest load-bearing capacity, wear resistance, and impact resistance. Perfect for heavy-duty component assembly, welding, dispensing, and other high-temperature or high-load operations.

Q2: What is the difference between 4040C and 4040N profiles, and which one should I choose?

A2:

• 4040C (Slot Profile): Features standard T-slots on the surface, allowing for easy installation of various hooks, brackets, and accessories. Offers greater mounting flexibility.

• 4040N (N-Face Profile): Features a flat, smooth surface for a cleaner, more streamlined appearance. Easier to clean and better suited for environments with high aesthetic or hygiene requirements.
  Both profiles offer the same frame strength and structural stability. The main differences lie in accessory mounting methods and visual appearance.

Q3: Can the workbench dimensions be customized?

A3: The standard dimension ranges are: length 800–1600mm, width 600–800mm, and height 1800–2000mm. Within these ranges, you can select specific dimensions in 100mm increments. For sizes outside these ranges, please consult our sales team to confirm customization possibilities.

Q4: What is the load capacity of the workbench?

A4: Load capacity mainly depends on the worktop material and overall dimensions. Generally, the carbon steel worktop (TM13) offers the highest load capacity. The compact laminate (TM11) and wood board (TM12) provide ample capacity for most assembly and inspection scenarios. Please refer to the product specification sheet or consult our sales engineer for detailed load parameters.

Q5: What is the difference between the square-hole panel and the louvered panel?

A5:

• Square-Hole Panel (GB11): Features an array of square holes compatible with dedicated hooks for hanging hand tools such as screwdrivers, wrenches, pliers, and tweezers for easy access.

• Louvered Panel (GB12): Features a louvered slot structure for mounting small parts bins, making it convenient for categorized storage of small components like screws, washers, and fittings.

• Combination Panels (GB13/GB15): Combine both square-hole and louvered functions (or square-hole and slot functions), offering maximum storage flexibility.

II. Functional Modules & Accessories

Q6: What is a tool balancer, and do I need one?

A6: A tool balancer is a spring-loaded retracting mechanism used to suspend heavy tightening tools such as pneumatic screwdrivers and torque wrenches. It counterbalances the tool's weight, allowing the operator to easily pull the tool up and down with minimal effort. This significantly reduces arm fatigue, improves work efficiency, and enhances safety. If your workbench involves frequent screw tightening operations, configuration (DLB021) is highly recommended.

Q7: How does the ESD wrist strap (DLB031) work?

A7: The ESD wrist strap uses a conductive fabric band that contacts the skin and safely channels static electricity generated by the human body to the ground through a grounding wire. This prevents electrostatic discharge (ESD) from damaging sensitive electronic components. This configuration is particularly important for assembly and inspection operations in the aerospace, automotive electronics, and precision instrument industries.

Q8: How many ports does the air distributor (DLB064) provide? How many pneumatic tools can it support?

A8: The DLB064 comes standard with 4 ports, allowing up to 4 pneumatic tools (such as pneumatic screwdrivers, pneumatic grinders, and blow guns) to be connected simultaneously. If more ports are required, custom configurations are available upon request.

Q9: What sizes of all-in-one computers are compatible with the AIO mount (DLB041)?

A9: The DLB041 mount uses the universal VESA mounting standard (75×75mm and 100×100mm), making it compatible with most mainstream all-in-one PC brands and sizes on the market. The mount supports multi-angle adjustment, allowing operators to view drawings, process documents, or MES interfaces from the most comfortable angle.

Q10: Can the power outlets be changed to other countries' plug standards?

A10: The standard configuration uses universal outlets. If you require plugs that meet specific countries' or regions' standards (such as US, EU, UK standards, etc.), please specify this when ordering, and we can provide corresponding outlet configurations upon request.

III. Installation & Operation

Q11: Is the workbench shipped fully assembled or as a kit?

A11: The workbench is shipped as modular components with a detailed installation manual and all necessary assembly tools included. Generally, two people can complete assembly within 30–60 minutes. On-site installation services are also available upon request (subject to location; please consult sales for details).

Q12: What tools are required for assembly?

A12: The main tools required are hex wrenches (included with the shipment), an adjustable wrench, and a Phillips screwdriver. All are basic tools; no specialized equipment is needed.

Q13: Do the retractable casters (D2) have brakes?

A13: Yes. The retractable casters combine mobility and stability. When movement is required, the wheels engage for easy rolling. When a fixed position is needed, the feet are lowered to lift the wheels off the ground for stable support. Each caster also features a locking mechanism to prevent accidental movement during operation.

Q14: Can I add accessories to the workbench later?

A14: Absolutely. The workbench features a modular design, allowing all accessories (back panels, lighting, power outlets, drawers, mounts, etc.) to be added or replaced at a later stage. You can configure the workbench in phases according to your actual needs without purchasing everything at once.
