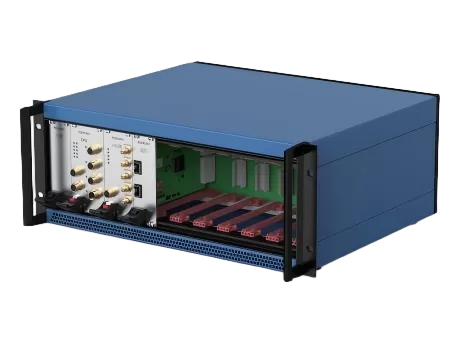

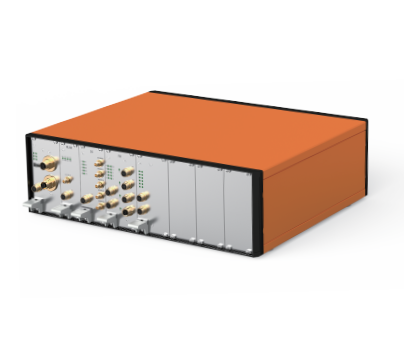

IN-S Series Subrack

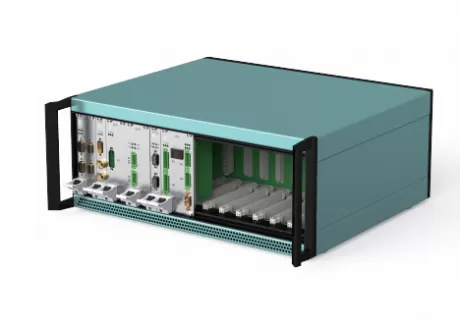

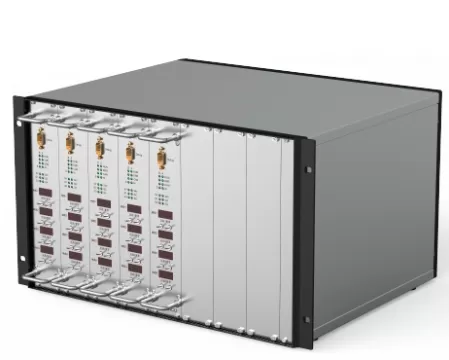

IN-S Series Subracks
Suitable for pull-out handle
According to IEEE 1101.10/11 standard
applicable to CompactPCl and VME64xapplications
PDF Desktop chassis pre configured according to IEC 60297-3-101 standard, suitable for Europeanstyle boards and backboards with insulation strips
This version comes with an outer panel and novisible screws
Symmetrical design, front and rear identical/frontflange (including handle integrated profile)
Suitable for board depths of 160mm, 220mm,280mm, and 340mm (depending on chassis depth) Compliant with DIN EN 62368-1

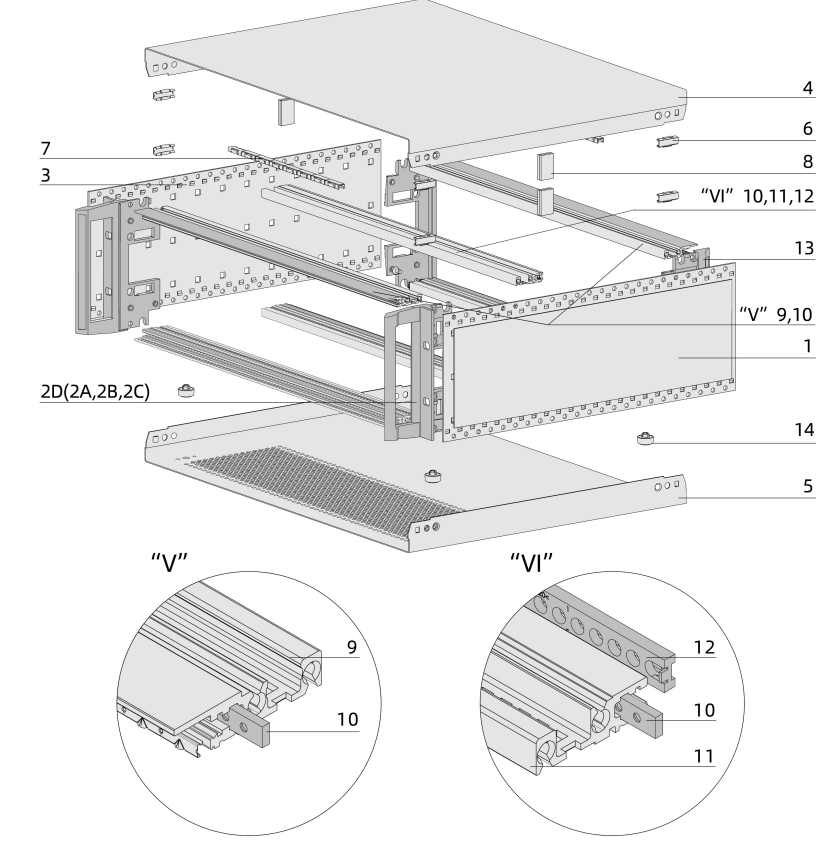

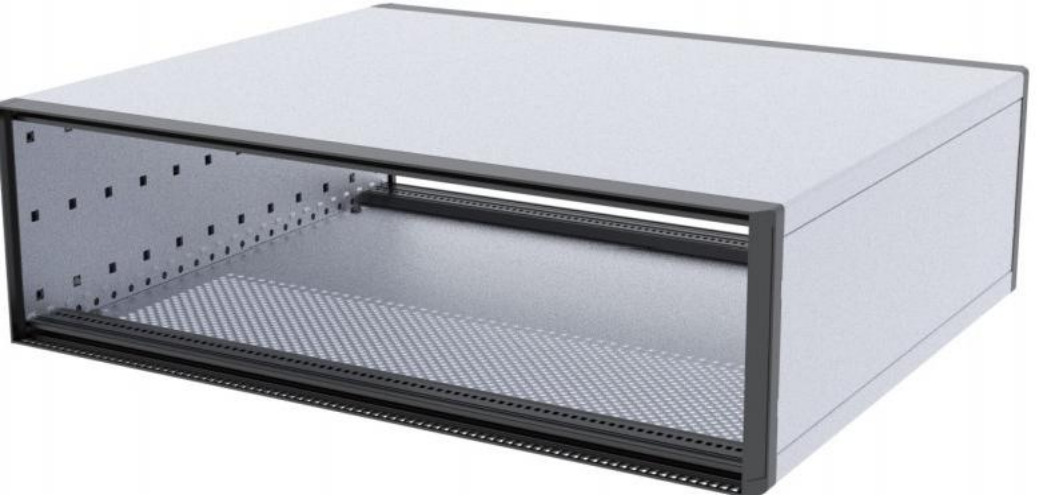

| Delivery Comprises(kit) | ||||
| Item Name | 3U/6U | Color | Note | |
| Qty | Code | |||
| 1 The outer side panel | 2 | RAL9006 | / | |
| 2A Front flange | 2 | RAL9004 | Optional | |
| 2B front handle | 2 | RAL9004 | Optional | |
| 2C Front flange | 2 | RAL9004 | Optional | |
| 2D front handle | 2 | RAL9004 | Optional | |
| 3 side panel | RAL9006 | |||
| 4 top cover plate | RAL9006 | |||
| 5 bottom coverplate | RAL9006 | |||
| 6 side panel gasket | ||||
| 7 cover plate gasket | 4 | |||
| 8 Velcro | ||||
| 9 Front rails | RAL9004 | |||
| 10 Threaded insert | 6 | |||
| 11 Rearrails | RAL9004 | |||
| 12 Insulation strip | 2 | |||
| 13 After Bracket | 2 | RAL9004 | ||
| 14 Supporting Foot | 4 | PC Black | ||
| 15 Install components | ||||

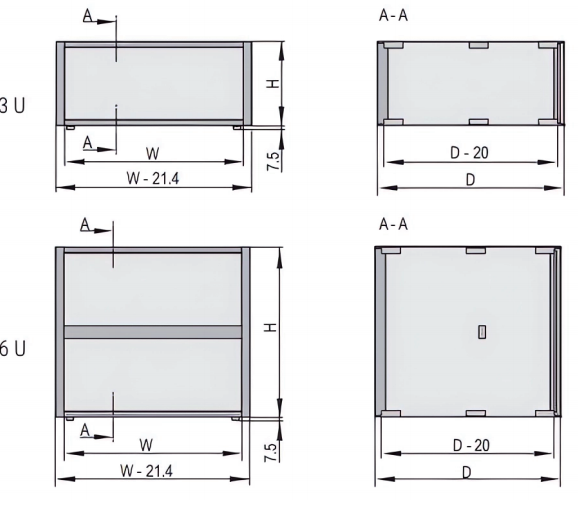

| height H=U | width W=HP | depth D=mm | Material No |
| 63 | 255.5 | A24571-026 | |
| 3U | 63 | 315.5 | A24571-029 |
| 63 | 375.5 | A24571-030 | |
| 84 | 255.5 | A24571-038 | |
| 84 | 315.5 | A24571-041 | |
| 84 | 375.5 | A24571-042 | |
| 84 | 435.5 | A24571-043 | |
| 84 | 495.5 | A24571-044 | |
| 6U | 63 | 255.5 | A24571-122 |
| 63 | 315.5 | A24571-125 | |
| 63 | 375.5 | A24571-126 | |
| 84 | 255.5 | A24571-134 | |
| 84 | 315.5 | A24571-137 | |
| 84 | 375.5 | A24571-138 | |
| 84 | 435.5 | A24571-139 | |
| 84 | 495.5 | A24571-140 |
