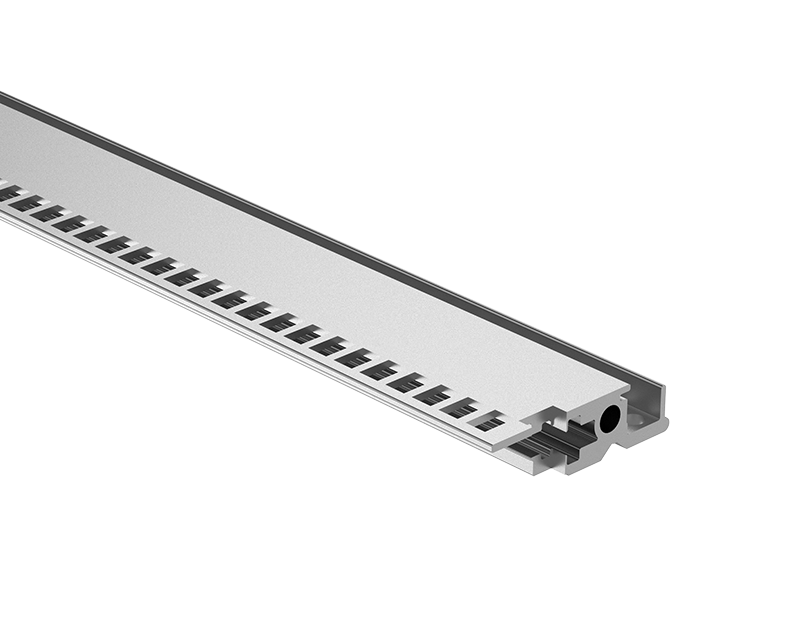

Horizontal Rail for EK&EG Subrack
Used for mounting PCB guide rail and fixing panel
Mounting top and bottom
Aluminum extrusion, anodized finish, conductive contact surface
PRODUCT ATTRIBUTES
Product Type: Horizontal Rail
Product Family：EK
Type: Lightweight
Rack Width: 42HP、63HP、84HP、104HP

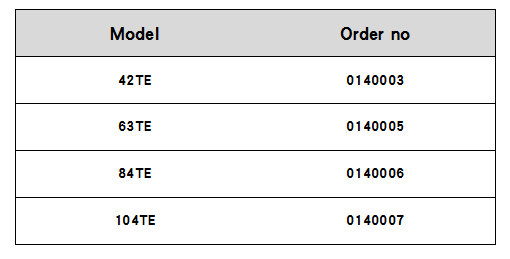

Product order number
Product model and order number

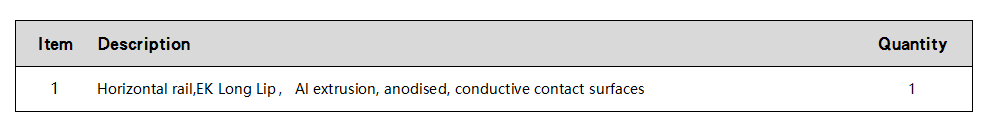

ITEM(S) DELIVERED
Delivery of this product includes the following item(s):
