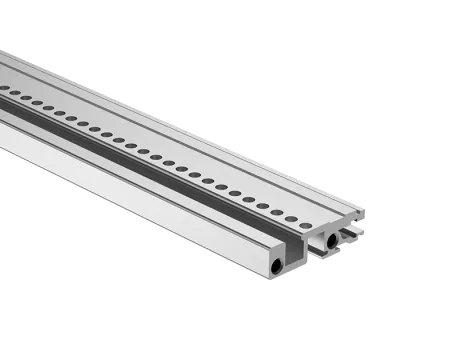

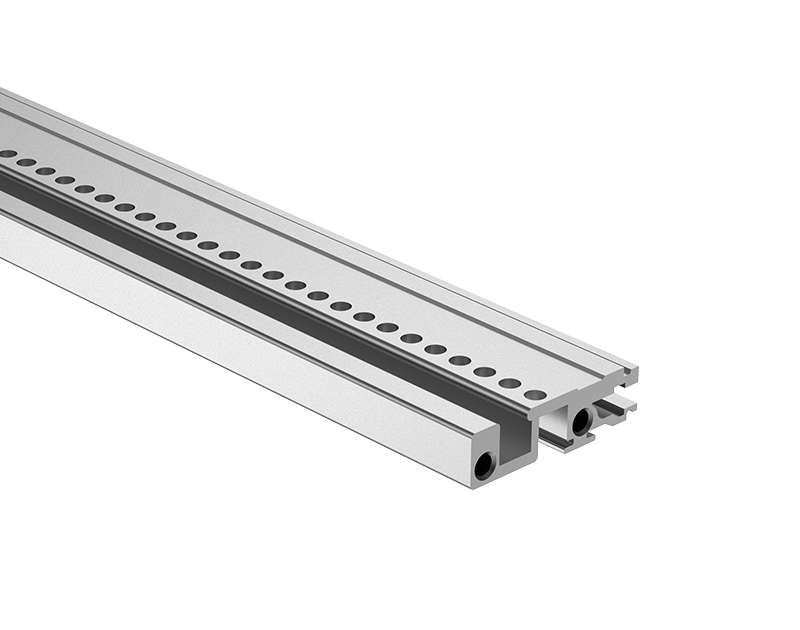

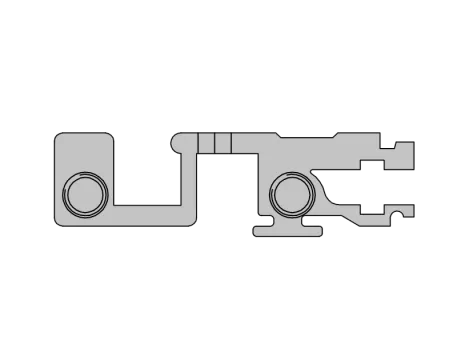

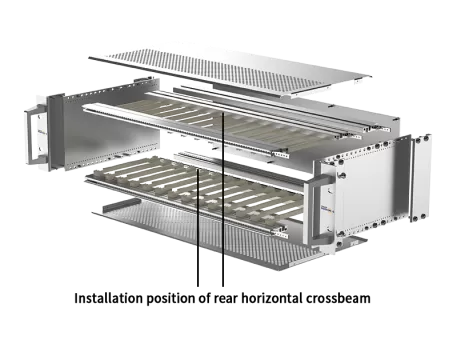

Horizontal Rail for EK&EG Subrack
For indirect backplane mounting with insulation strip
Mounting top and bottom
Aluminum extrusion, anodized finish, conductive contact surface
Heavy-Duty Structure: Designed for high load capacity and long-term stability.
Multi-Width Compatibility: Supports 42HP, 63HP, 84HP, and 104HP standard rack widths.
Ready to Install: Includes all necessary components for simple setup.
Designed for EG Series: Ensures perfect compatibility with EG subrack systems.
Product Name: Heavy Type-EG-II Rear (Heavy-Duty Rear Horizontal Rail for EG Series)
Core Function: A heavy-duty rear horizontal rail designed for the EG subrack system, providing robust structural support and precise module alignment.
Detailed Description:
The Heavy Type-EG-II Rear is a critical structural component for EG subrack systems. Its heavy-duty design effectively enhances the overall structural rigidity of the subrack, preventing deformation under full load or in multi-cabinet stacks. With multiple width options from 42HP to 104HP, it meets the installation requirements of various scale equipment, making it an ideal choice for building highly reliable industrial electronic cabinets.
Technical Specifications Table
| Parameter | Specification |
|---|---|
| Product Type | Rear Horizontal Rail |
| Product Family | EG |
| Model Type | Heavy Type |
| Compatible Rack Widths | 42HP, 63HP, 84HP, 104HP |

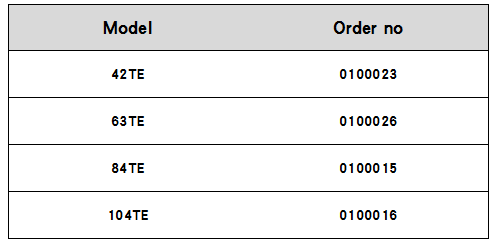

| Product Order Number | Heavy Type-EG-II Rear |
Application Scenarios & Value Proposition
Ideal For Use In:
Industrial Automation Control Cabinets
Power and Energy System Cabinets
Data Processing & Telecommunication Equipment
Test and Measurement Systems
Why Choose This Rail?
The Problem: Standard rails can bend under heavy loads or in wide racks (e.g., 84HP, 104HP), leading to difficult module insertion/removal and poor connectivity.
The Solution: This heavy-duty rear horizontal rail provides solid longitudinal support for the core chassis through its reinforced design and materials, ensuring structural integrity and stability even in the most demanding applications.
Product order number

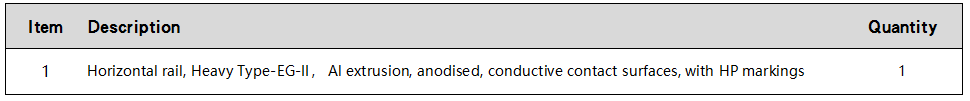

Delivery of this product includes the following item(s):
