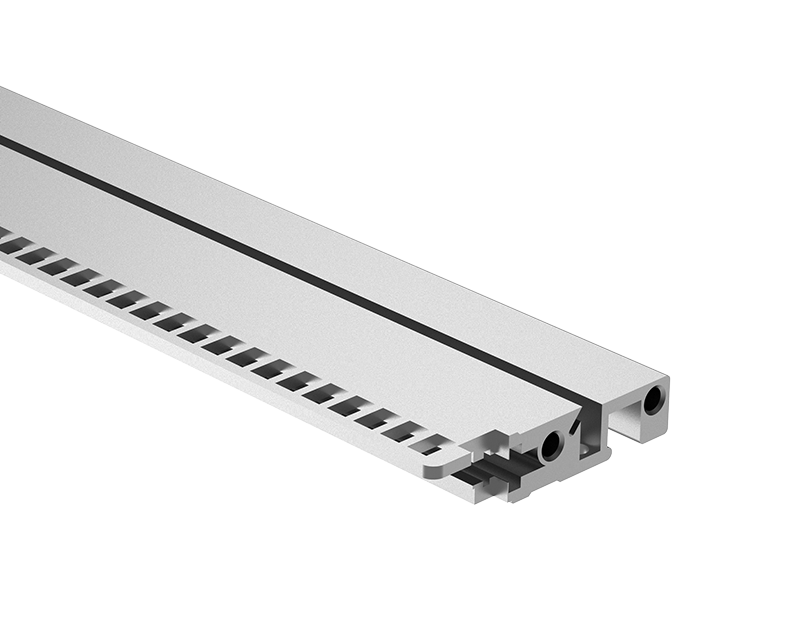

Horizontal Rail for EK&EG Subrack
For EG Series subrack mounting
Front horizontal rail for heavy duty load.
Compliance with standards:IEC-60297/IEEE1101.10
Material: Extruded al profile AL Alloy6063
Surface treatment: Anodized/Chromated
Product Type: Front Horizontal Rail
Product Family：EG
Type: Heavy duty load
Standard dimension: 42HP 63HP 84HP 104HP(1HP=5.08mm)
Custom dimension: Support

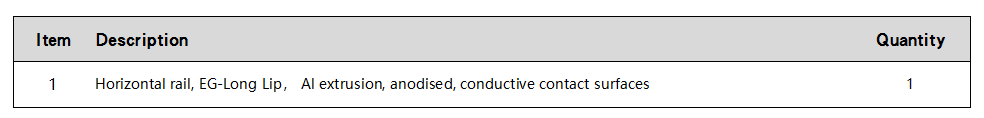

Product order number

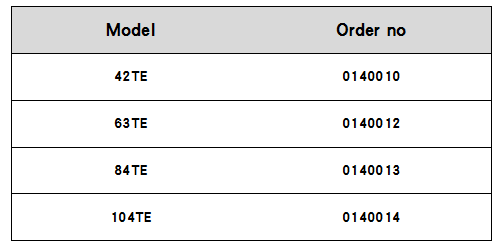

Product model and order number

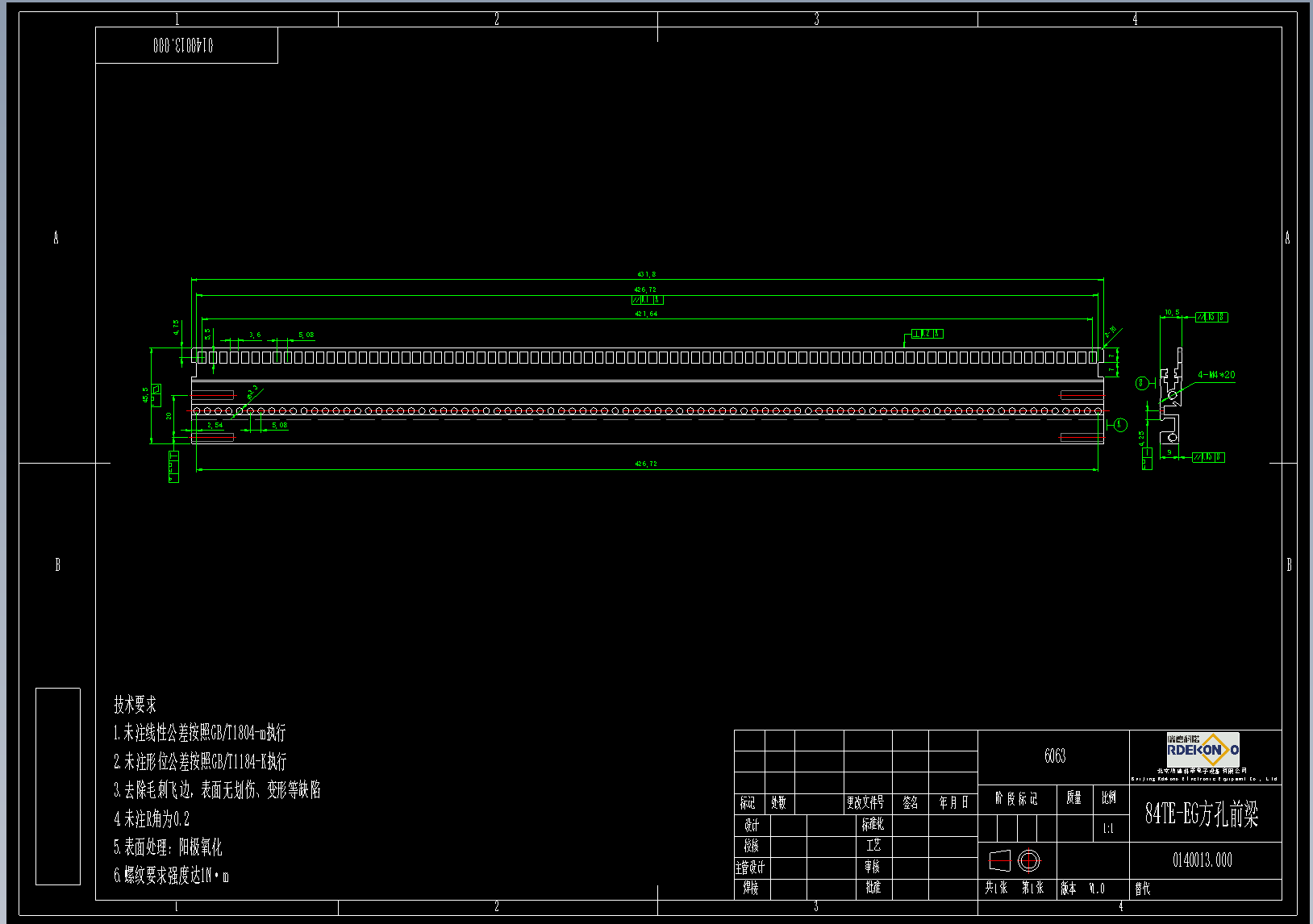

Drawing for Front horizontal rail EG-Long Lip Heavy:

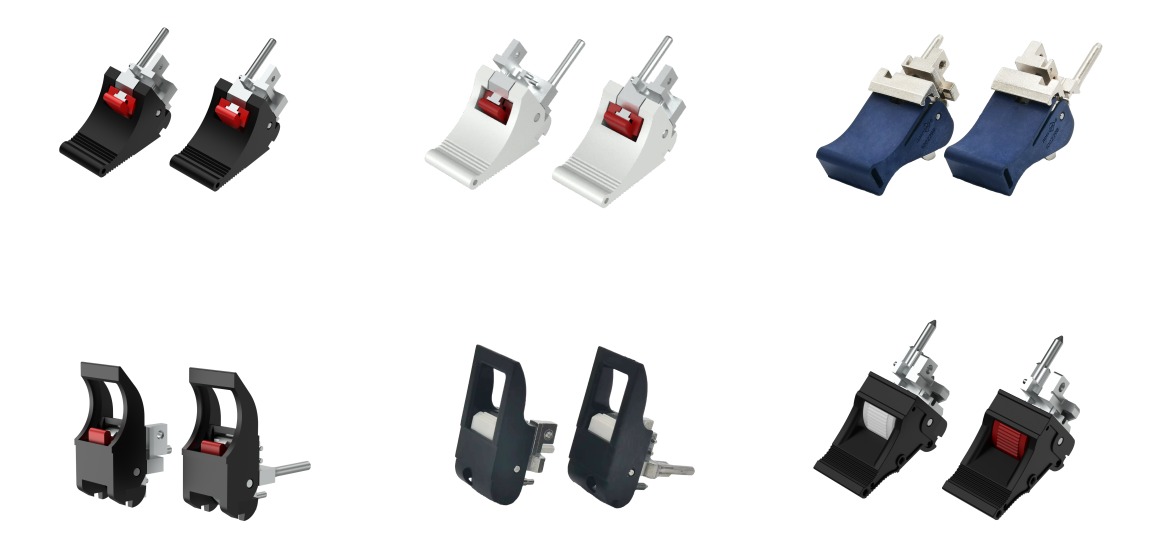

Related CompctPCI handle/Ejector/Puller/Extractor:
