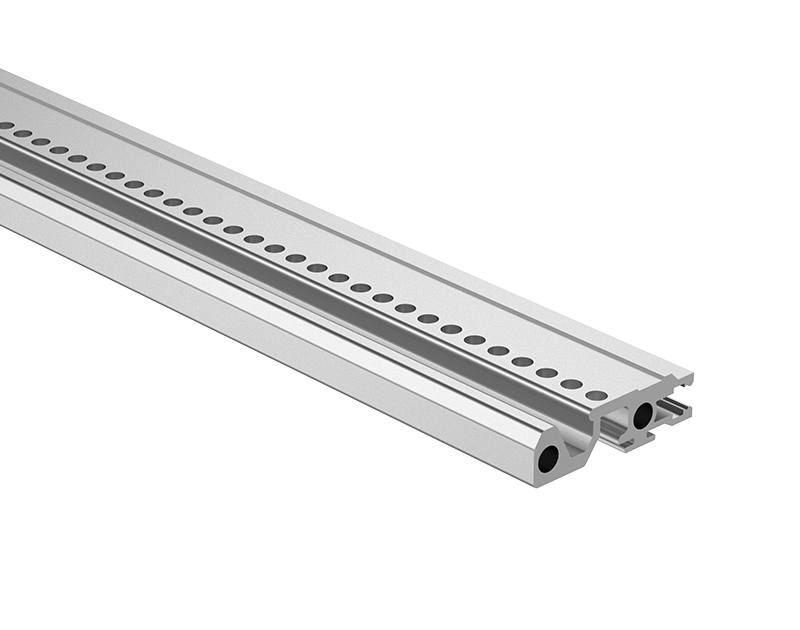

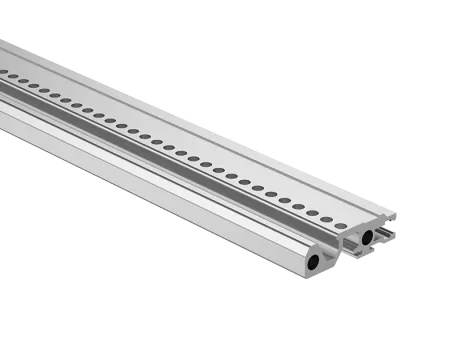

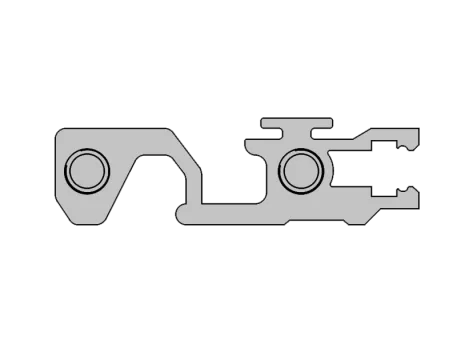

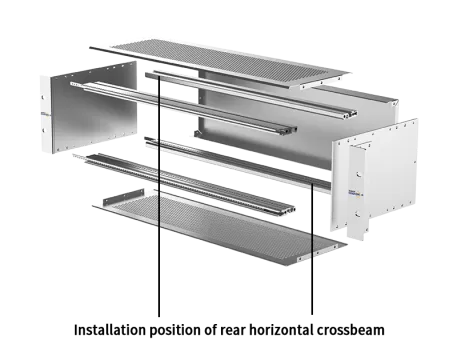

Horizontal Rail for EK+&EG+ Subrack
The Front horizontal Rail is used in conjunction with a puller for the installation of PCB boards, rails, and panel fixation .
heavy-type EG+subrack beam horizontal rail is specifically designed for high-load chassis applications. It adopts reinforced structures and high-strength materials, significantly improving overall rigidity and load capacity. It effectively prevents deformation and embrittlement, complies with stringent standards such as EN 45545, and ensures long-term stable operation under vibration, shock, and high-temperature environments. It is suitable for high-reliability fields such as railways and power systems.
Material: AL Alloy 6063
Surface treatment: Anodized
Rear horizontal rails install backplane directly with threaded insert.

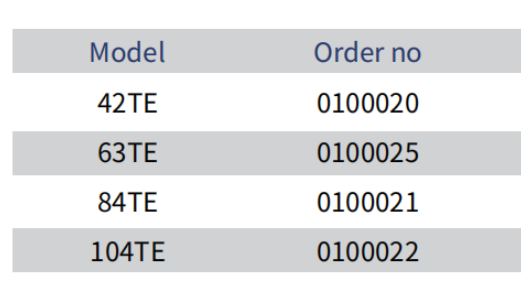

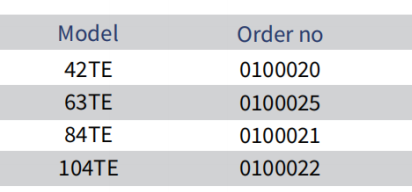

Standard dimension: 42HP,63HP,84HP,104HP. (1HP=5.08mm)
Custom dimension: Support

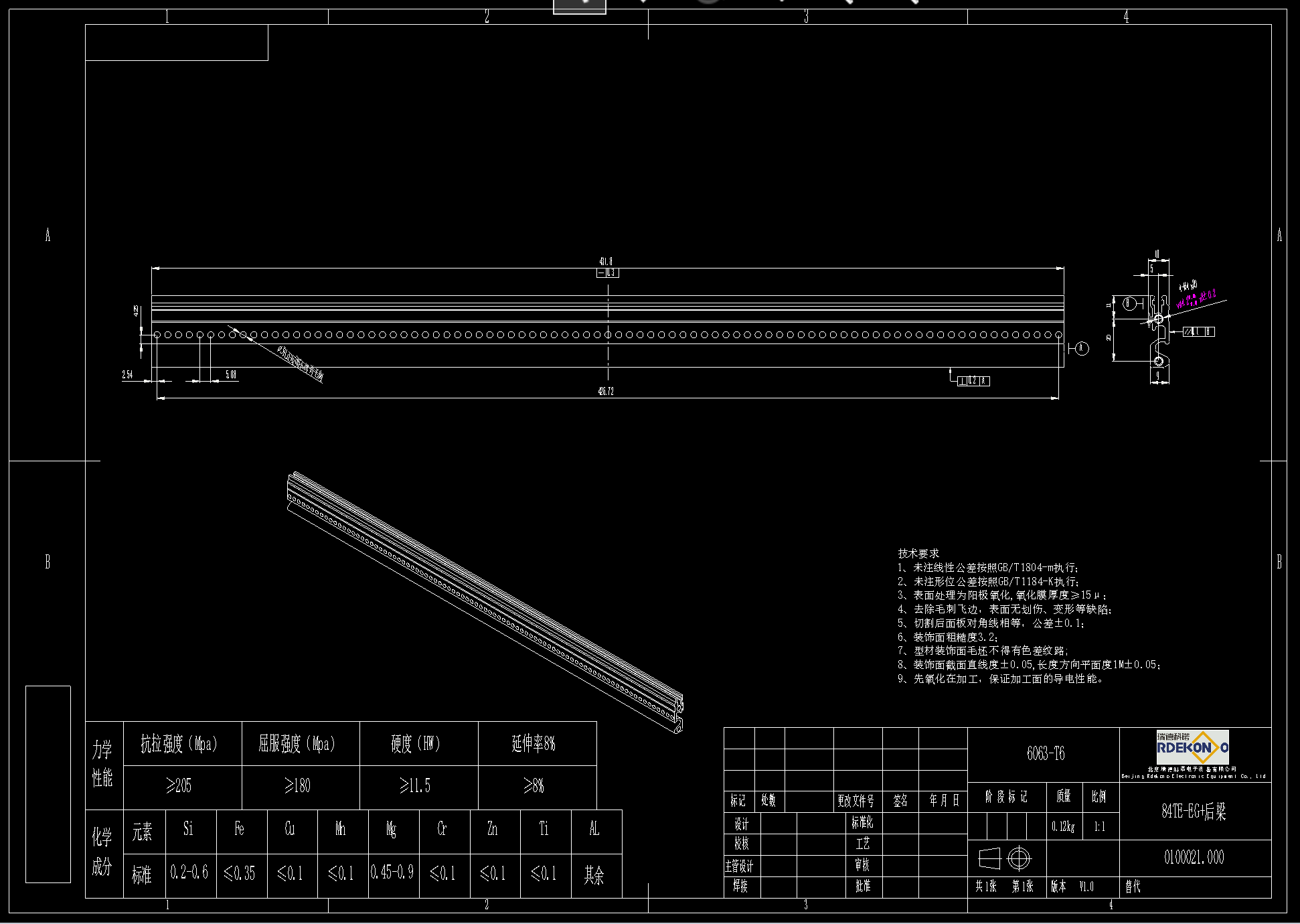

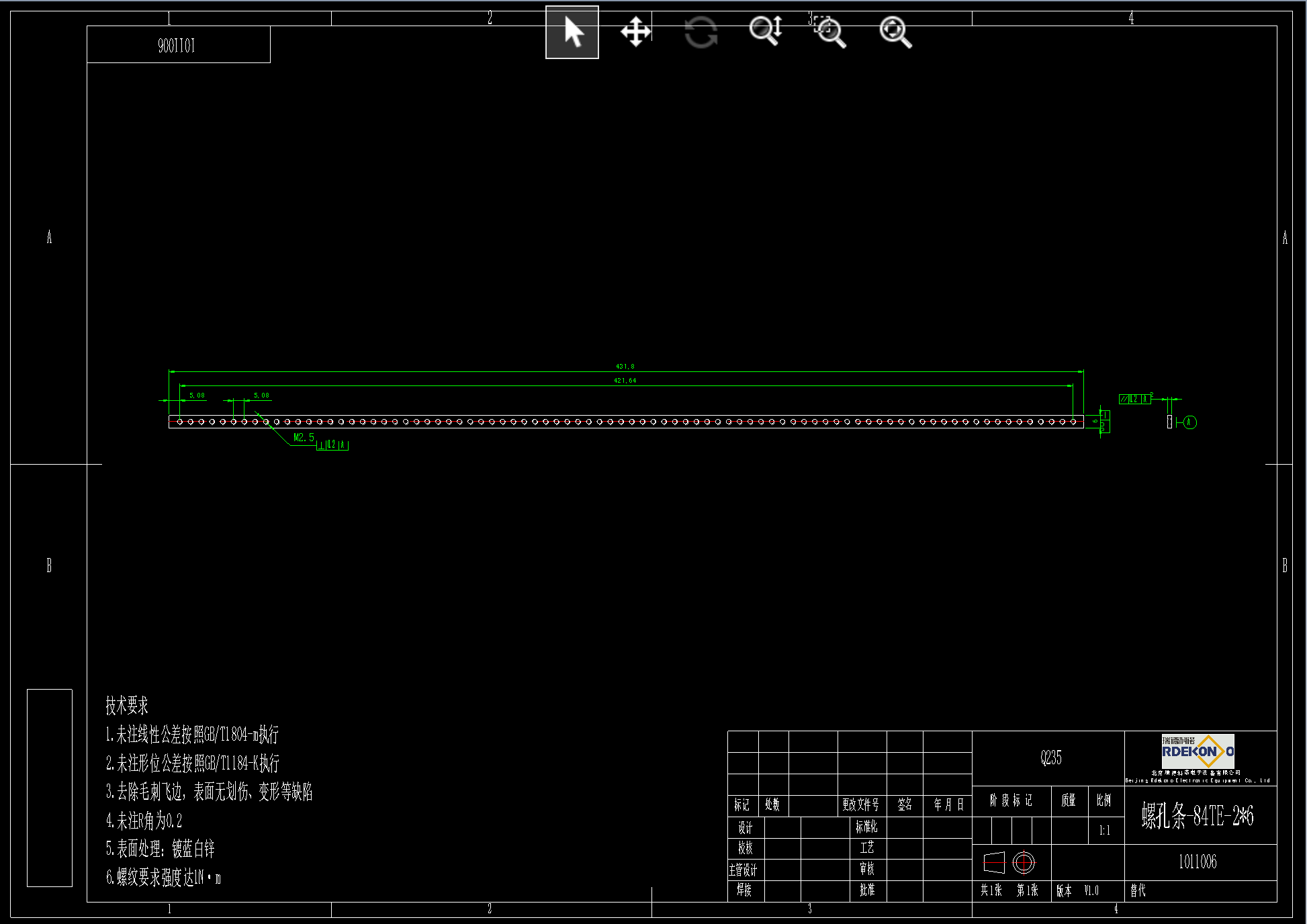

Drawing for Heavy Type EG+ 84HP:
related threaded insert:

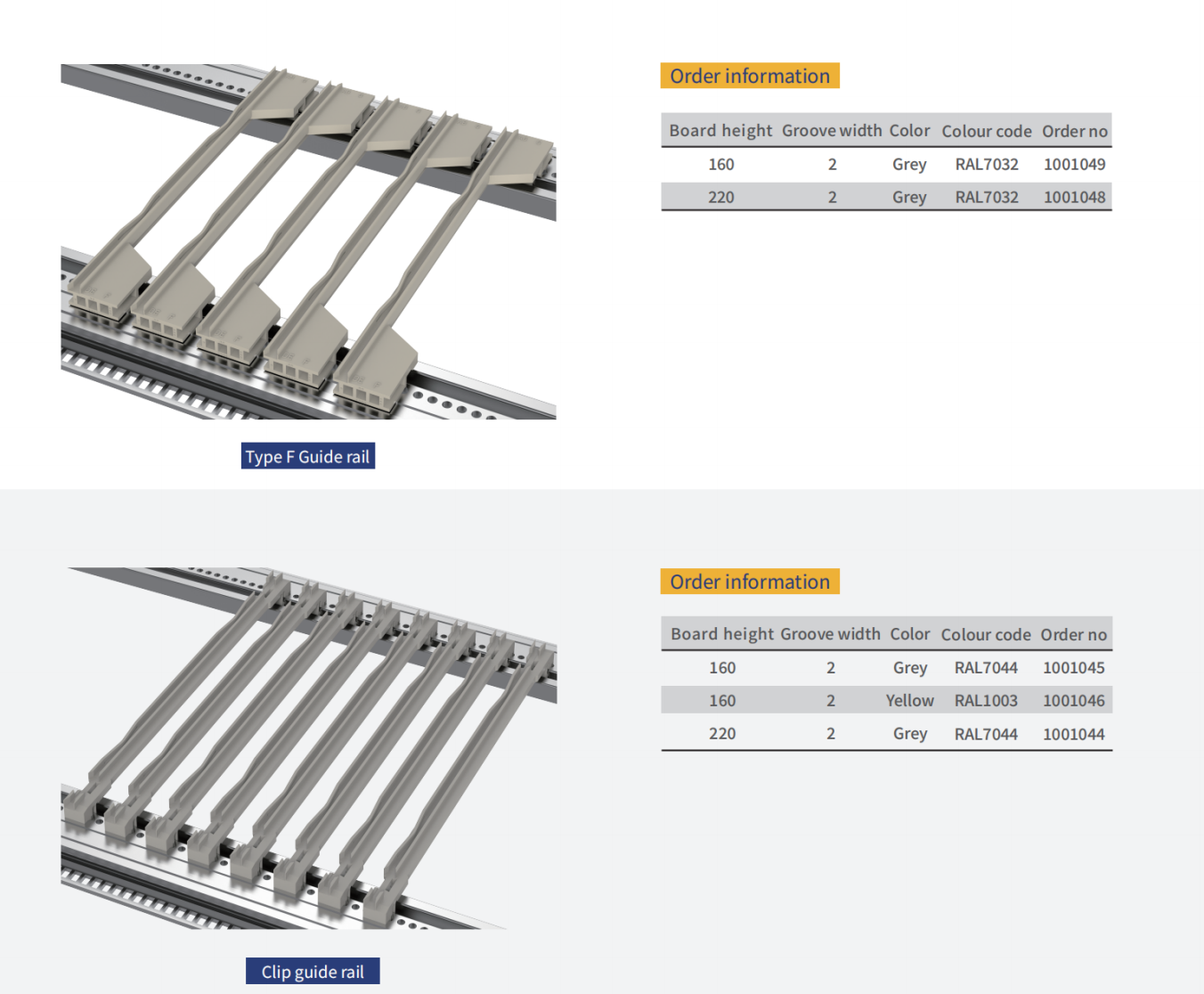

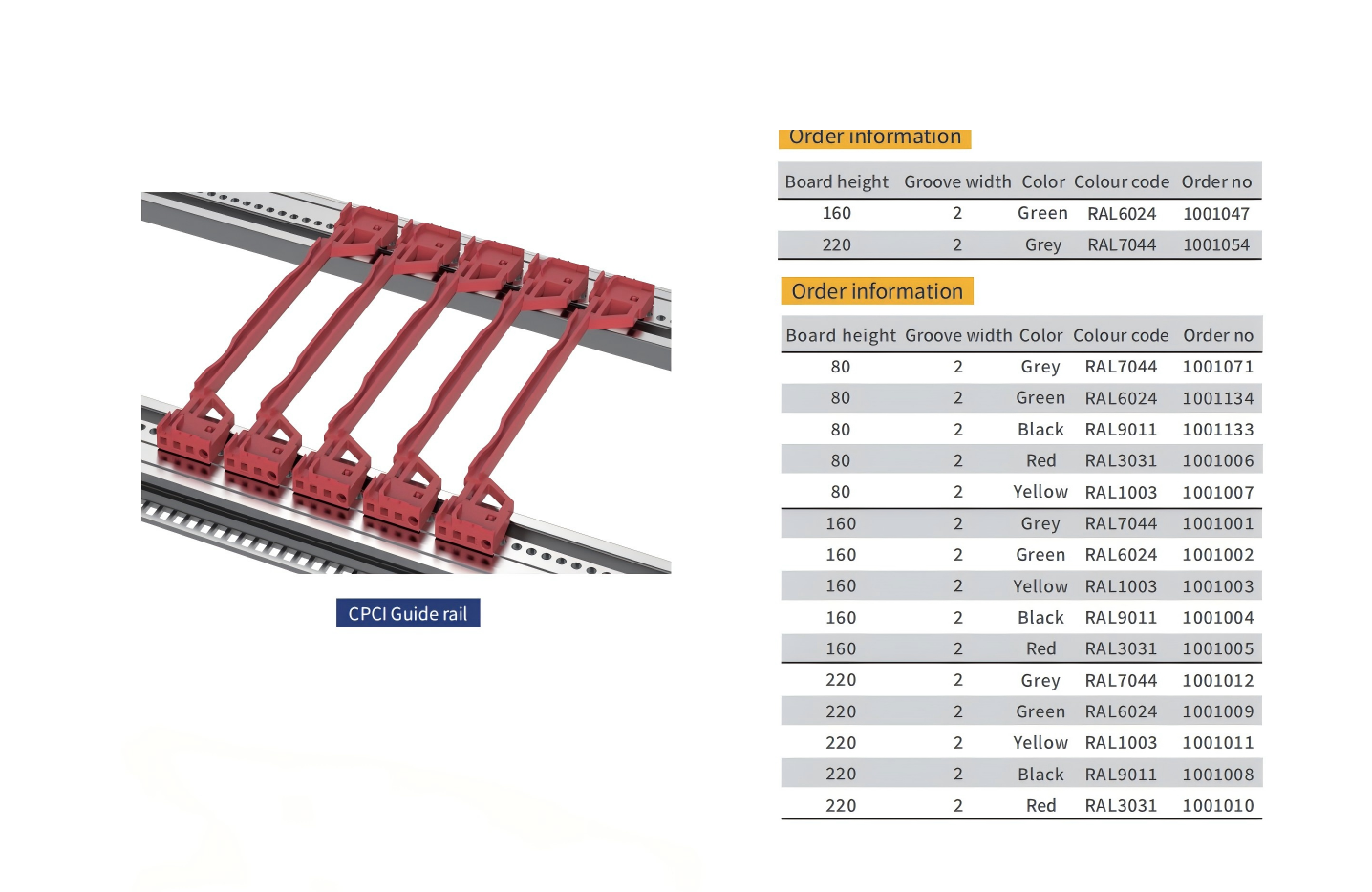

related guide rails:
