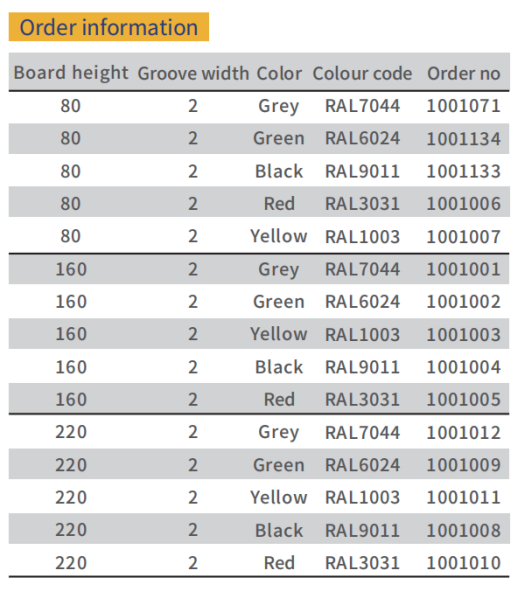

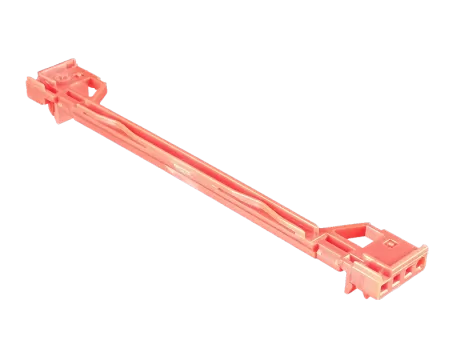

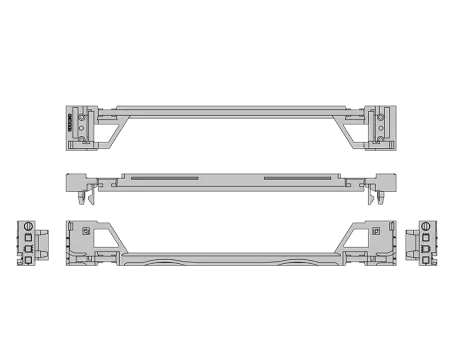

Guide Rail for EK&EG Subrack
For1.6-2.0mm thickness PCB boards.
Codable, coding chamber for mounting coding pegs.
Different color forms are used to identify different slots.
Red for system slots.
Green for power supply.
Grey and yellow for plug-in components.
Only available for EK&EG、EK+&EG+series subracks.
comformity to standards:
EN45545-2:2013+A1:2015E
Aging standard:GB/T7141-2008,90℃，6h
Fire protection standard:
EN45545-2:2013+ A1:2015E
Embrittlement resistance standard:
GB/T5470-2008,-55℃
ROHS:2011/65/EU
Material: PC+20%GF
application:

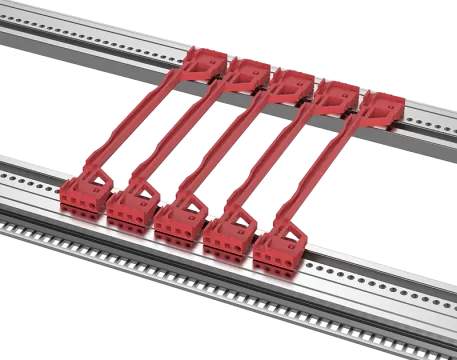

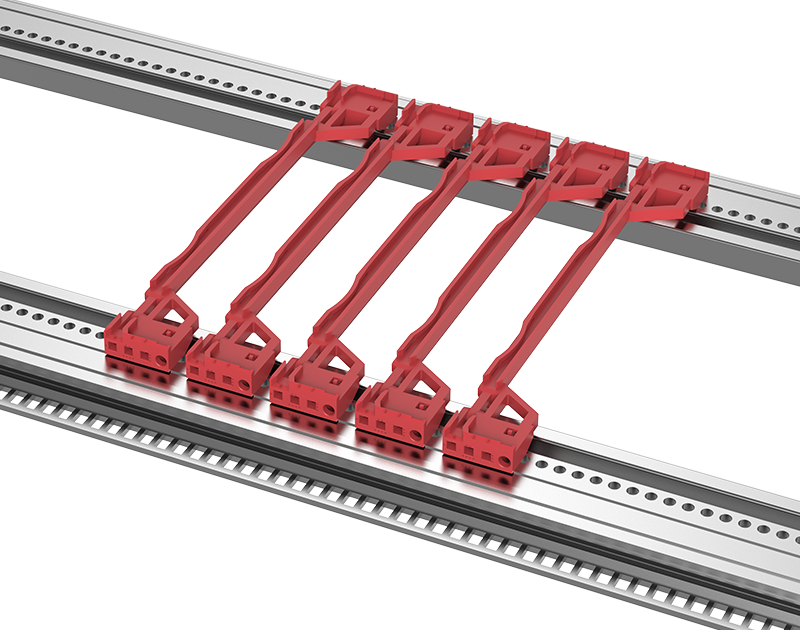

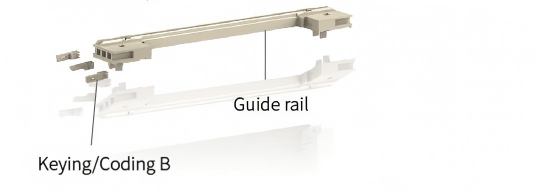

work with EG EK horizontal rails, Compact PCI ejectors and coding pins.

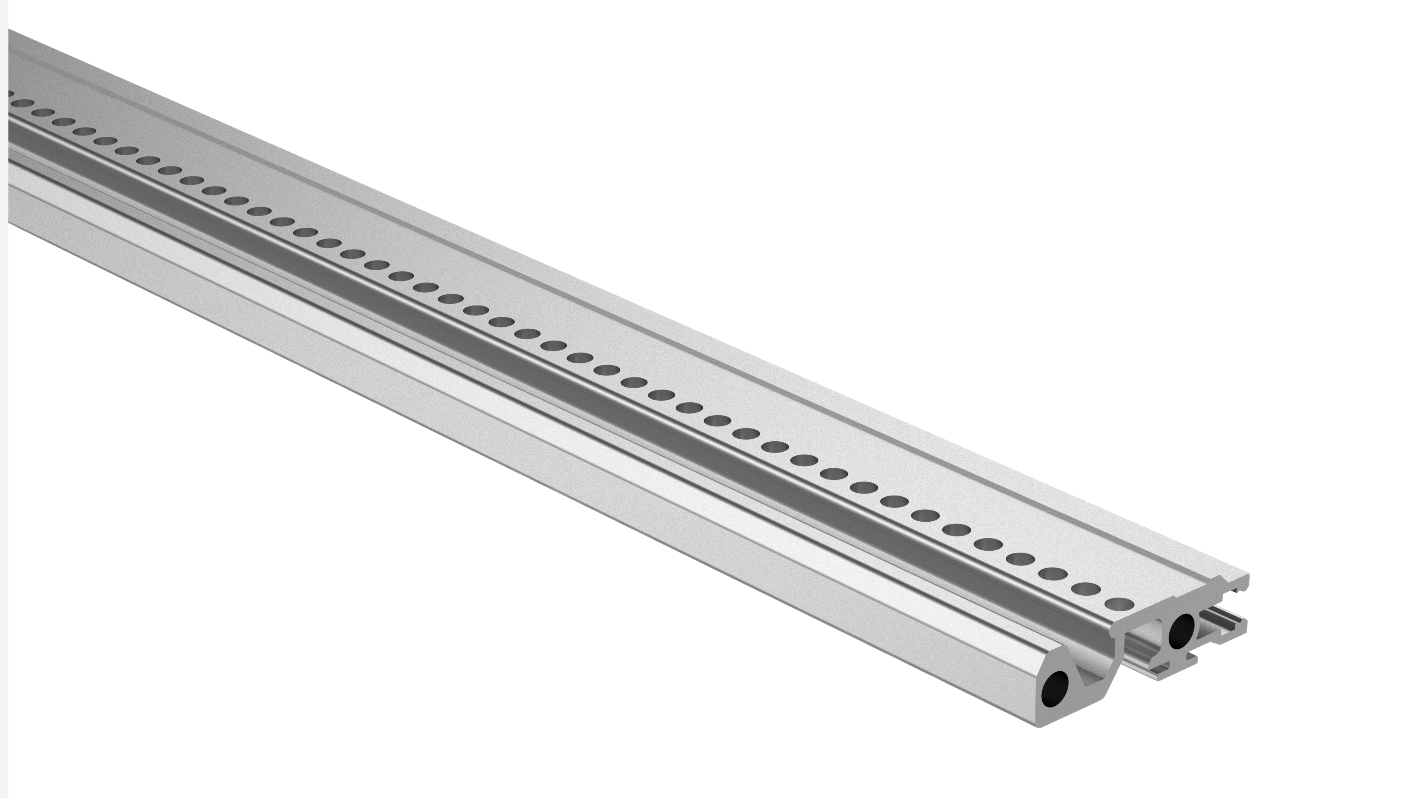

horizontal rails :

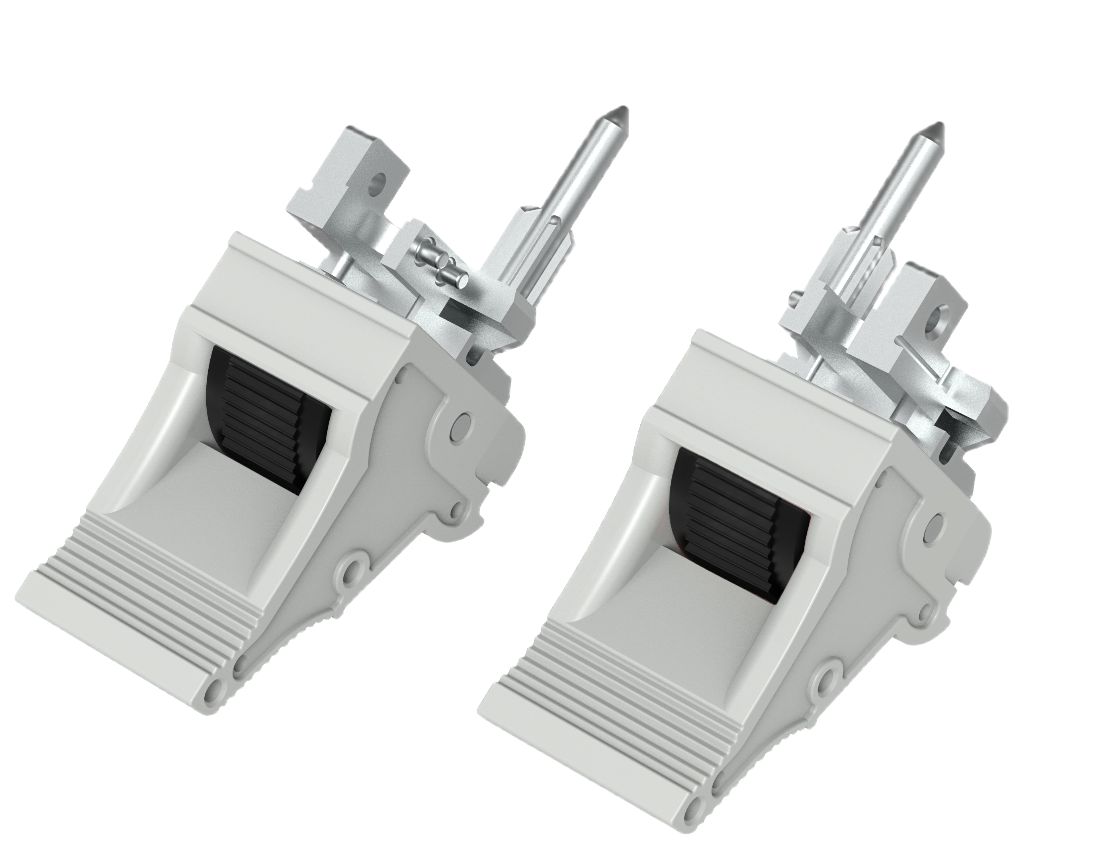

CompactPCI handles/ejectors/extractors
Coding pins:
