EK&EG PRO Series Subracks
The current models of the EG series chassis are divided into:
Chassis height: 3U chassis, 4U chassis, 6U chassis, 4U chassis can add fan disks,
Chassis width: 42TE, 63TE, 84TE
Chassis depth: 245, 285, 345
The Subrack Shielded Protective Case (CompactPCI) adopts a heavy-duty crossbeam, with the crossbeam widened and two sets of ends fixed by two screws and side panels, which can provide better load-bearing performance and improve structural strength.
Suitable for CompactPCl and VME64x insertion and extractor handles.
Rear horizontal railfor backplane mounting with insulation strip; For applications that install backplanes or connectors, Horizontal rails, rear, for connector mounting (IEC 60603-2 /DIN41612).
Typical shielding 40dB at 1GHz, 30dB at 2GHz(as to VG 95373, part15), on condition zhat zhe front is sealed with shielded front panels.
For reall/O application.

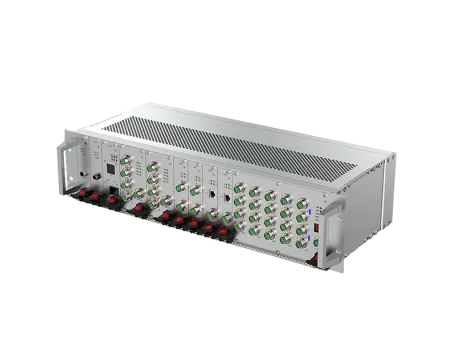

3U Subrack

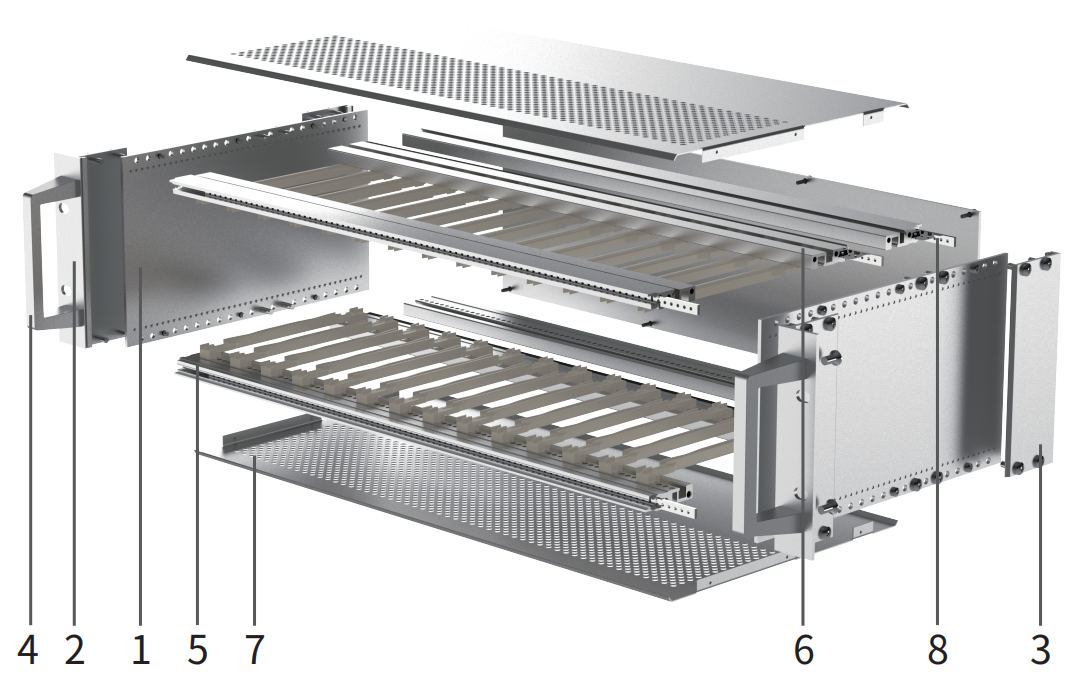

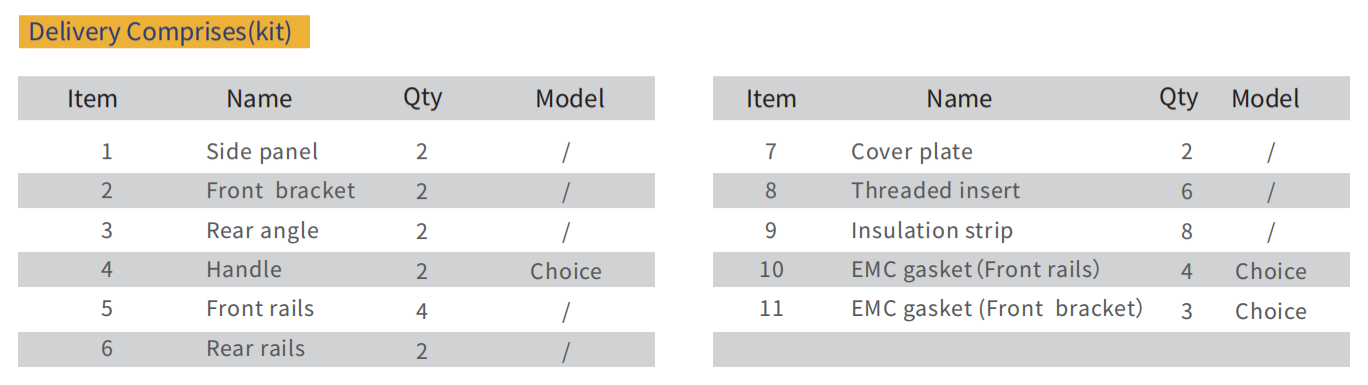

| Delivery Comprises(kit) | |||||||
| Item | Name | Qty | Model | Item | Name | Qty | Model |
| 1 | Side panel | 2 | / | 7 | Cover plate | 2 | / |
| 2 | Front bracket | 2 | / | 8 | Threaded insert | 6 | / |
| 3 | Rear angle | 2 | / | 9 | Insulation strip | 8 | / |
| 4 | Handle | 2 | Choice | 10 | EMC gasket(Front rails) | 4 | Choice |
| 5 | Front rails | 4 | / | 11 | EMC gasket(Front bracket) | 3 | Choice |
| 6 | Rear rails | 2 | / | ||||

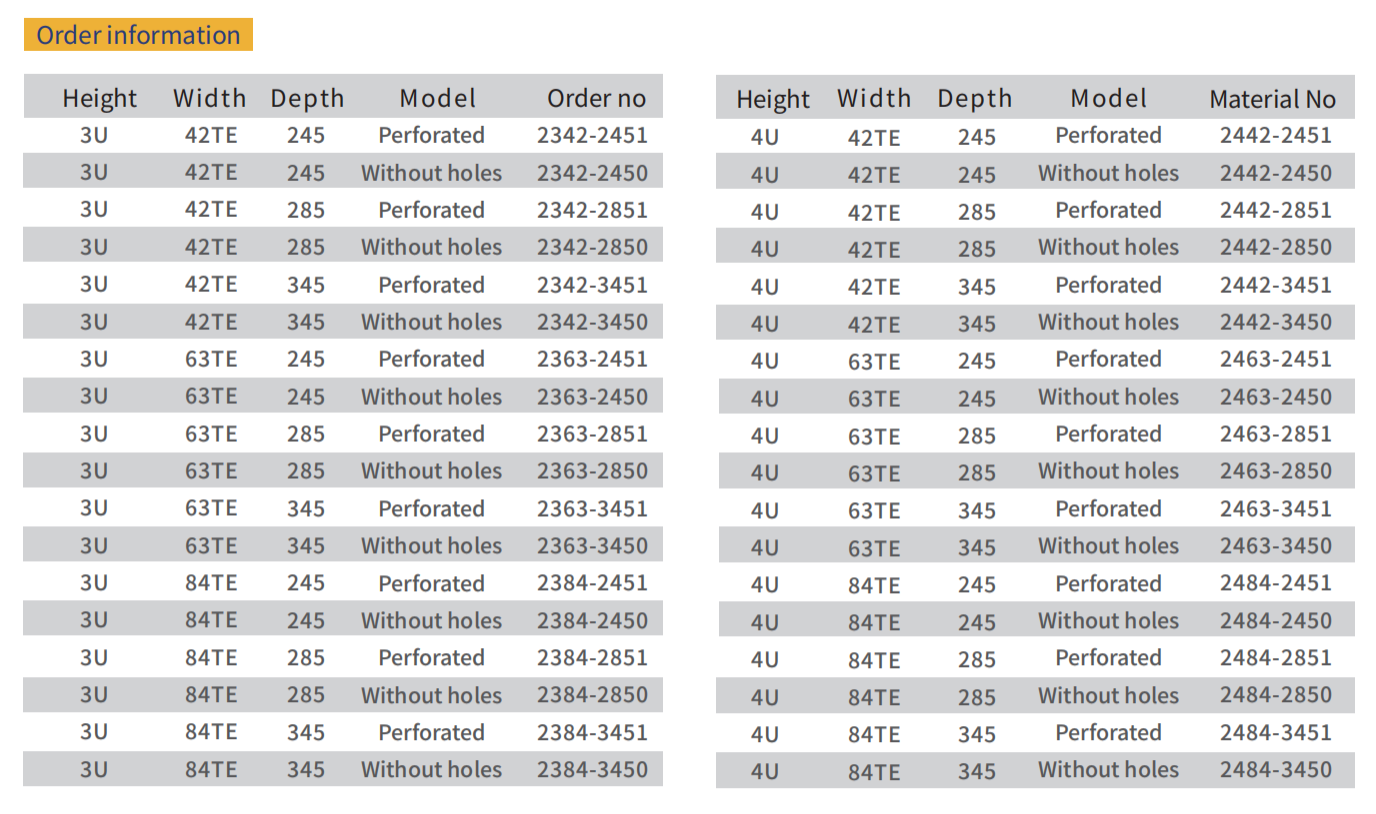

| Orderinformation | |||||||||
| Height | Width | Depth | Model | Order no | Height | Width | Depth | Model | Material No |
| 3U | 42TE | 245 | Perforated | 2342-2451 | 4U | 42TE | 245 | Perforated | 2442-2451 |
| 3U | 42TE | 245 | Without holes | 2342-2450 | 4U | 42TE | 245 | Without holes | 2442-2450 |
| 3U | 42TE | 285 | Perforated | 2342-2851 | 4U | 42TE | 285 | Perforated | 2442-2851 |
| 3U | 42TE | 285 | Without holes | 2342-2850 | 4U | 42TE | 285 | Without holes | 2442-2850 |
| 3U | 42TE | 345 | Perforated | 2342-3451 | 4U | 42TE | 345 | Perforated | 2442-3451 |
| 3U | 42TE | 345 | Without holes | 2342-3450 | 4U | 42TE | 345 | Without holes | 2442-3450 |
| 3U | 63TE | 245 | Perforated | 2363-2451 | 4U | 63TE | 245 | Perforated | 2463-2451 |
| 3U | 63TE | 245 | Without holes | 2363-2450 | 4U | 63TE | 245 | Without holes | 2463-2450 |
| 3U | 63TE | 285 | Perforated | 2363-2851 | 4U | 63TE | 285 | Perforated | 2463-2851 |
| 3U | 63TE | 285 | Without holes | 2363-2850 | 4U | 63TE | 285 | Without holes | 2463-2850 |
| 3U | 63TE | 345 | Perforated | 2363-3451 | 4U | 63TE | 345 | Perforated | 2463-3451 |
| 3U | 63TE | 345 | Without holes | 2363-3450 | 4U | 63TE | 345 | Without holes | 2463-3450 |
| 3U | 84TE | 245 | Perforated | 2384-2451 | 4U | 84TE | 245 | Perforated | 2484-2451 |
| 3U | 84TE | 245 | Without holes | 2384-2450 | 4U | 84TE | 245 | Without holes | 2484-2450 |
| 3U | 84TE | 285 | Perforated | 2384-2851 | 4U | 84TE | 285 | Perforated | 2484-2851 |
| 3U | 84TE | 285 | Without holes | 2384-2850 | 4U | 84TE | 285 | Without holes | 2484-2850 |
| 3U | 84TE | 345 | Perforated | 2384-3451 | 4U | 84TE | 345 | Perforated | 2484-3451 |
| 3U | 84TE | 345 | Without holes | 2384-3450 | 4U | 84TE | 345 | Without holes | 2484-3450 |

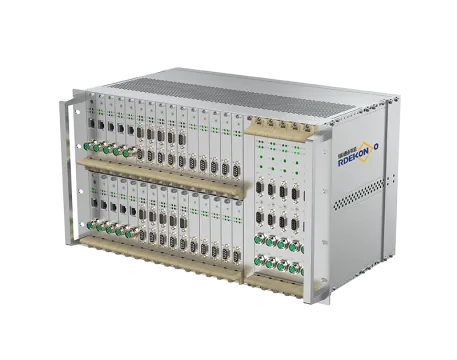

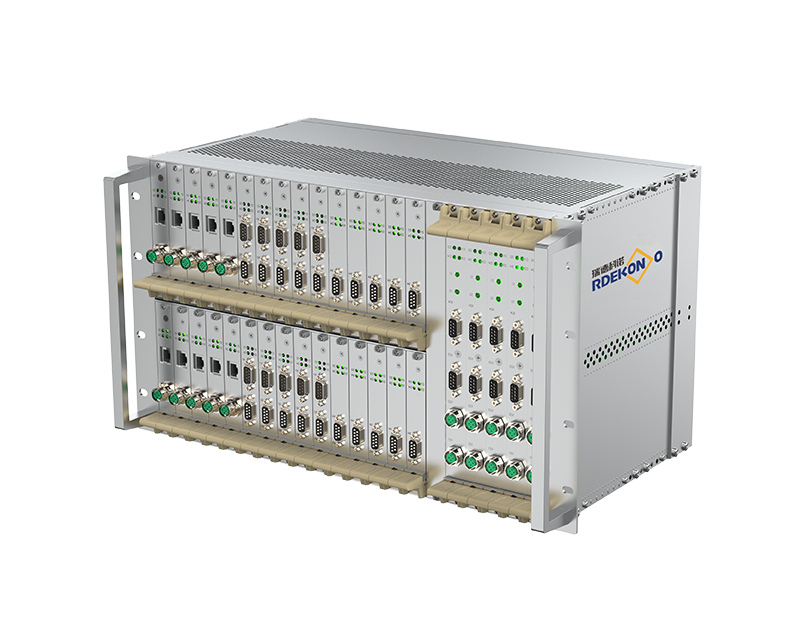

6U Subrack

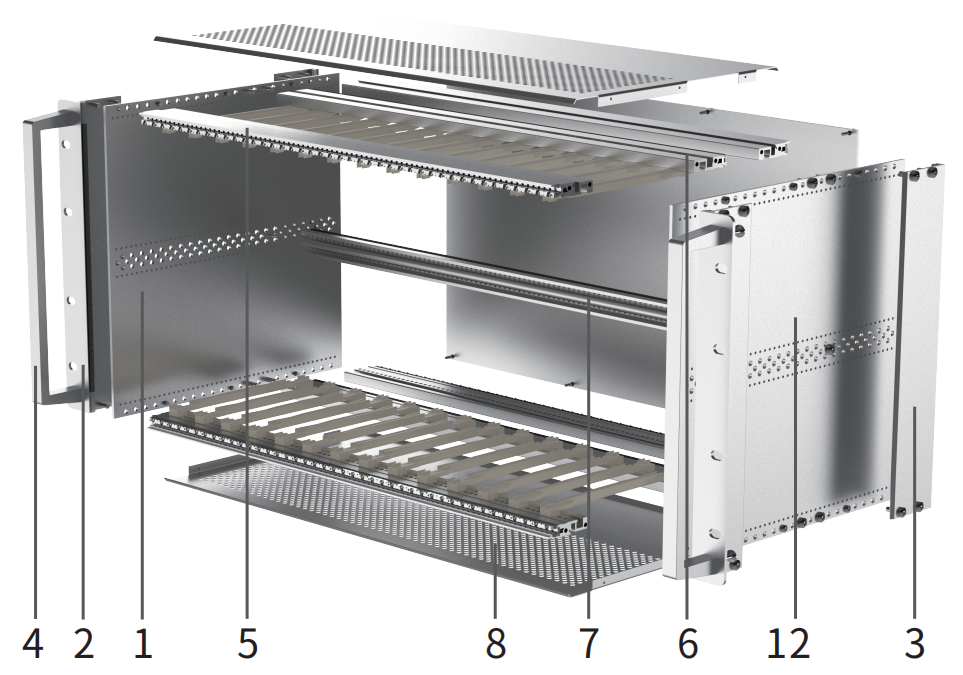

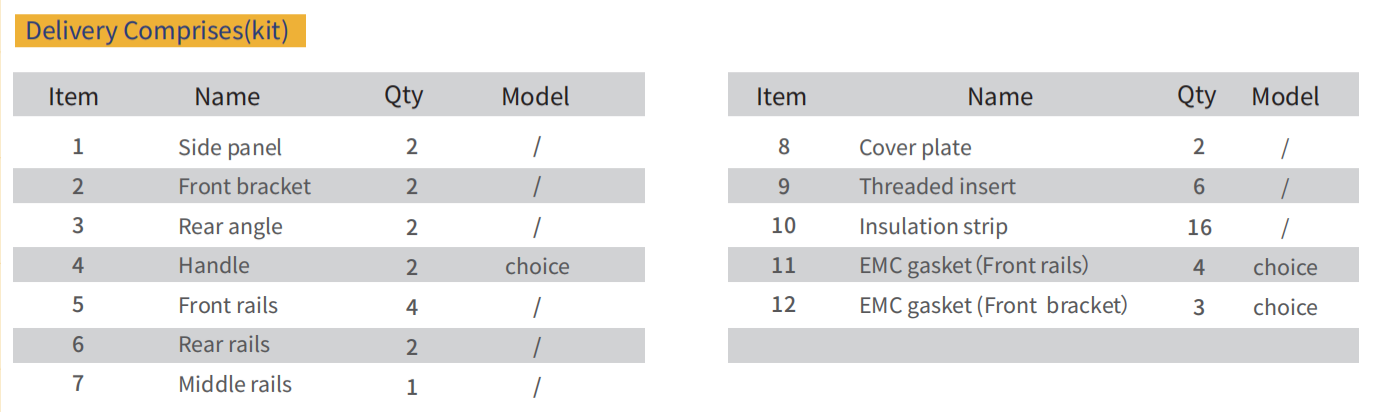

| Delivery Comprises(kit) | |||||||
| Item | Name | Qty | Model | Item | Name | Qty | Model |
| 1 | Side panel | 2 | / | 8 | Cover plate | 2 | / |
| 2 | Front bracket | 2 | / | 9 | Threaded insert | 6 | / |
| 3 | Rear angle | 2 | / | 10 | Insulation strip | 16 | / |
| 4 | Handle | 2 | choice | 11 | EMC gasket(Front rails) | 4 | choice |
| 5 | Front rails | 4 | / | 12 | EMC gasket(Front bracket) | 3 | choice |
| 6 | Rear rails | 2 | / | ||||
| 7 | Middle rails | 1 | |||||

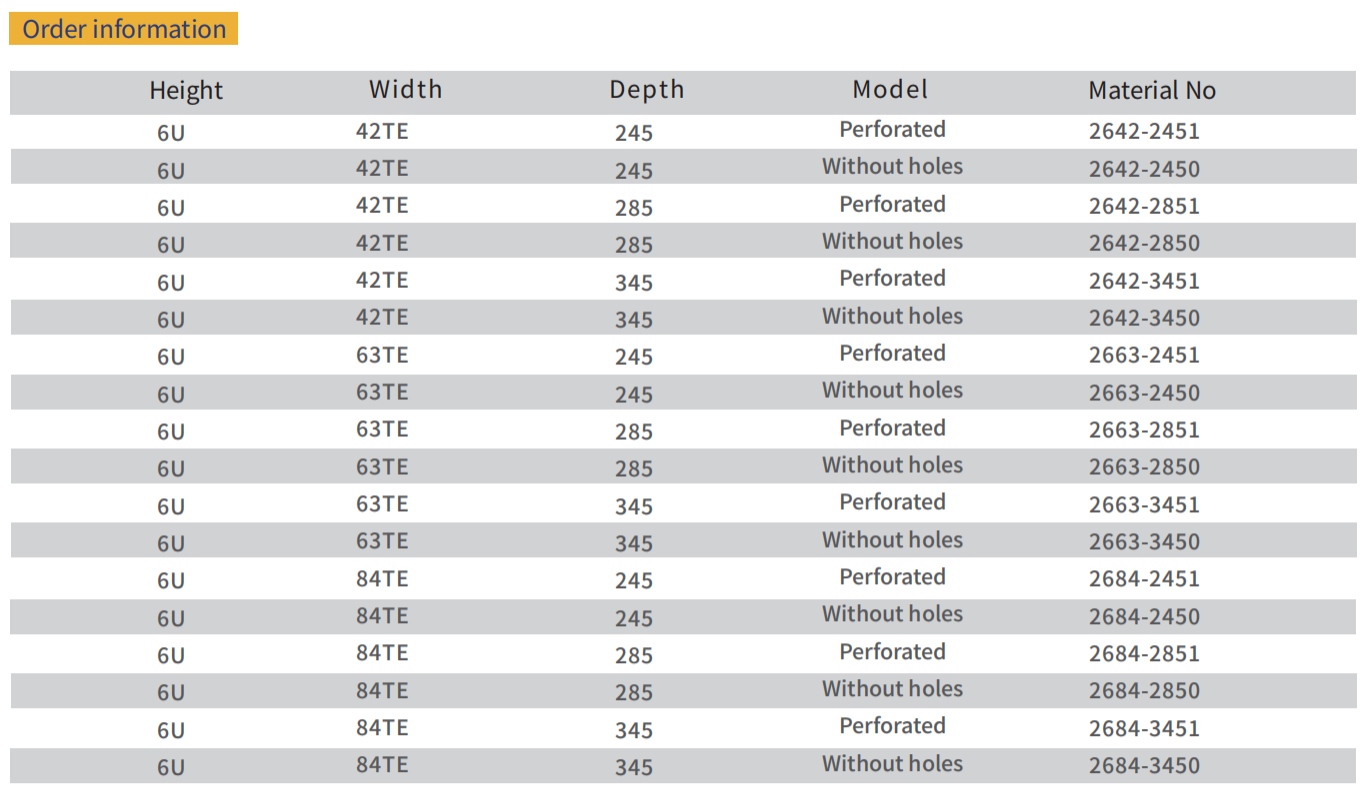

| Order information | ||||
| Height | Width | Depth | Model | Material No |
| 6U | 42TE | 245 | Perforated | 2642-2451 |
| 6U | 42TE | 245 | Without holes | 2642-2450 |
| 6U | 42TE | 285 | Perforated | 2642-2851 |
| 6U | 42TE | 285 | Without holes | 2642-2850 |
| 6U | 42TE | 345 | Perforated | 2642-3451 |
| 6U | 42TE | 345 | Without holes | 2642-3450 |
| 6U | 63TE | 245 | Perforated | 2663-2451 |
| 6U | 63TE | 245 | Without holes | 2663-2450 |
| 6U | 63TE | 285 | Perforated | 2663-2851 |
| 6U | 63TE | 285 | Without holes | 2663-2850 |
| 6U | 63TE | 345 | Perforated | 2663-3451 |
| 6U | 63TE | 345 | Without holes | 2663-3450 |
| 6U | 84TE | 245 | Perforated | 2684-2451 |
| 6U | 84TE | 245 | Without holes | 2684-2450 |
| 6U | 84TE | 285 | Perforated | 2684-2851 |
| 6U | 84TE | 285 | Without holes | 2684-2850 |
| 6U | 84TE | 345 | Perforated | 2684-3451 |
| 6U | 84TE | 345 | Without holes | 2684-3450 |
Note: 1TE=5.08mm, 1U=44.45mm
RESOURCES
Catalog
Contact Us
Whether you’d like to get more info on what, why and how we do what we do, need help with what you’re creating, would like to partner up or just say hi!---we’d love to hear from you.
Oct. 01, 2023
For PCB board of the subrack insertion and extraction, Provides assistance when pulled out.Composed of four parts: handle, scutcheon, printed board bracket, and shaft. Handle material: PC+GF20%, Fire retardant standard: UL94V1, printed board bracket material: die-cast zinc alloy surface nickel plating.
Oct. 08, 2023
The subrack does not have a series of profiles, and after receiving an order, it is usually customized and processed according to the drawings. Products from different customers and products of different specifications from the same customer all need to be redesigned and processed, resulting in higher costs;
