Custom Enclosure

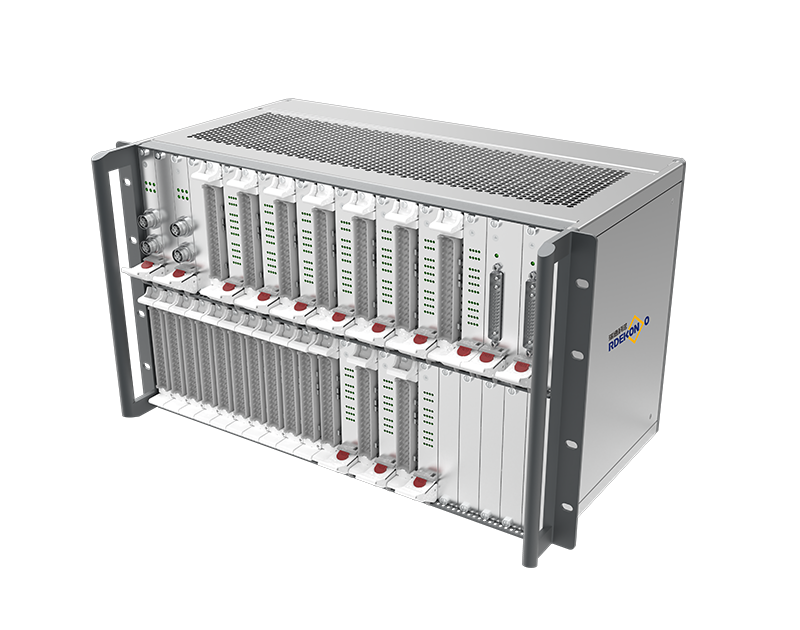

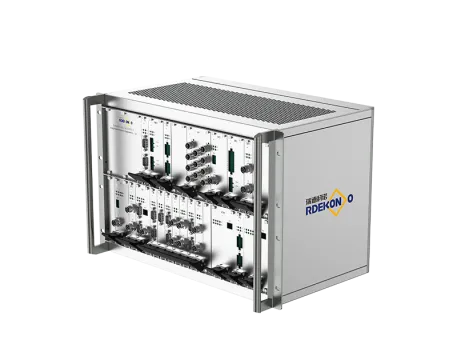

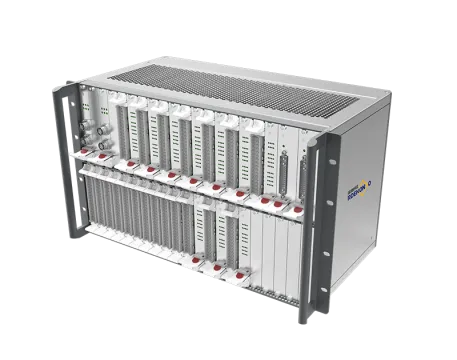

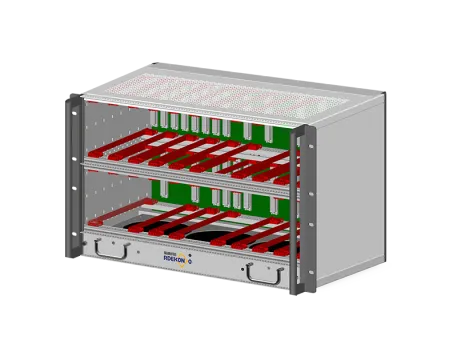

Desktop cabinet pre configured according to lEC60297-3-101 standard, applicable to European board and backplane with insulating strips.
EMC shielding components can be added.
Desktop cabinet pre configured according to lEC60297-3-101 standard, applicable to European board and backplane with insulating strips.
EMC shielding components can be added.
This version has a covering strip and no visible screws.

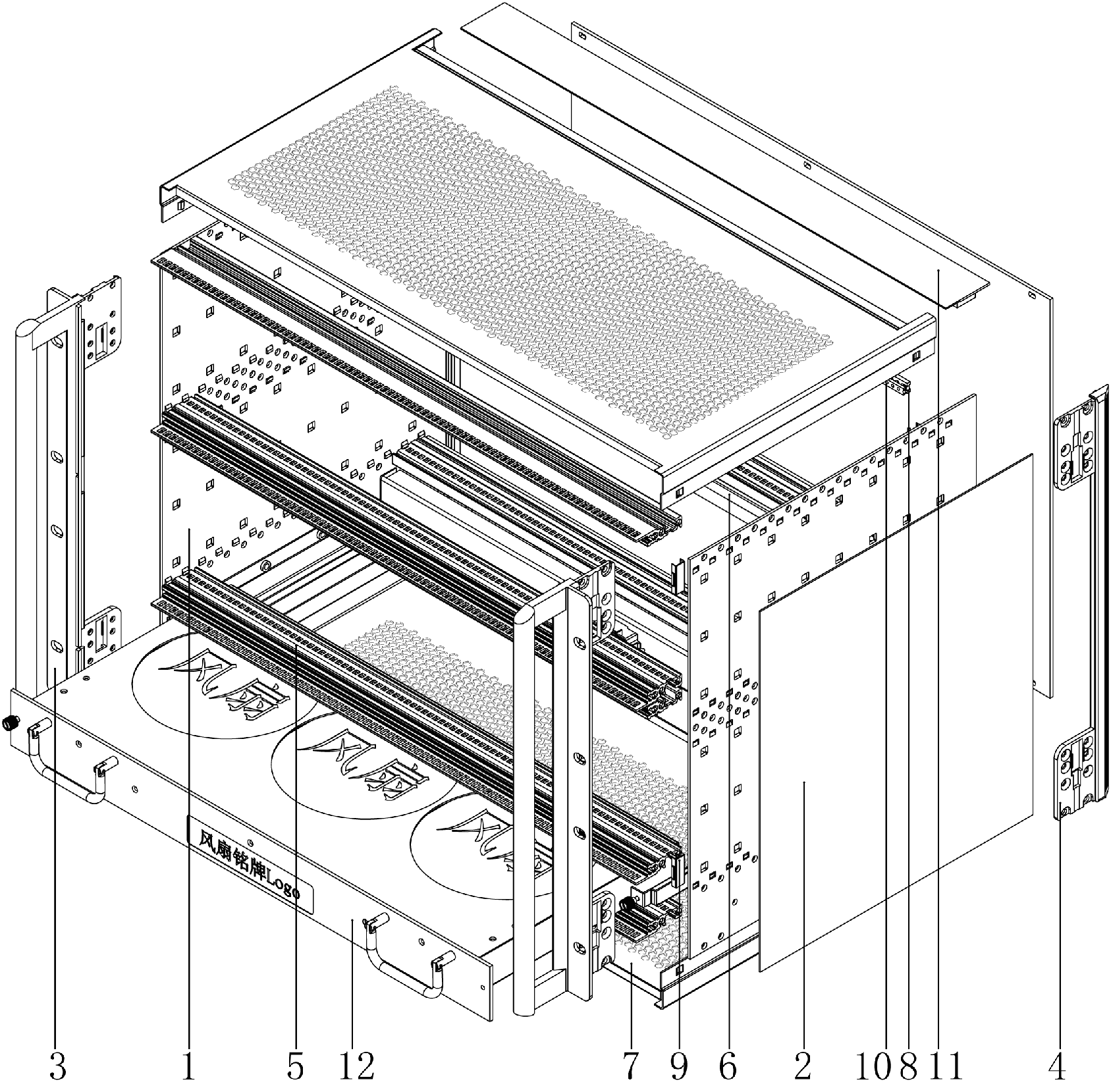

Subracks with integrated ventilationfan(2x1/2U).
Symmetrical design, same front and rear/front flange (including Handle integrated profile).
Honeyomb mesh venilation/non ventlaton oftopcover and bottom plate.
Applicableto 160mm, 220 mm, 280 mm, and 340 mm board depth (depending on subracks depth).
Conform to DIN EN62368-1.
