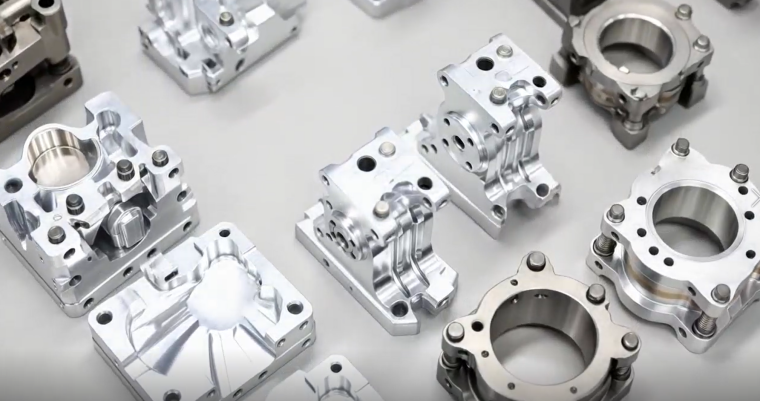

Aluminum Alloy Product CNC Machining

Common Aluminum Alloy Materials

Selecting the right aluminum alloy grade is the first step toward successful machining. Different grades offer distinct performance characteristics and are suited for different applications.

Industry Applications

Leveraging its comprehensive advantages, aluminum alloy machining plays a critical role in several high-end manufacturing sectors.

• Aerospace: Aircraft fuselages, wing spars, and skins require lightweight and high-strength solutions, relying heavily on precision machining of high-strength alloys such as 7075 and 2024.

• Automotive Industry: To meet lightweighting trends, battery enclosures for electric vehicles, body structural parts, and motor mounts are all made from aluminum alloys and require high-precision CNC drilling, tapping, and milling.

• Consumer Electronics: Smartphone frames, laptop housings, and other components benefit from aluminum's lightweight, thermal conductivity, and premium aesthetics, achieved through CNC machining to high surface finish and tight tolerances.

• Industrial & Robotics: Aluminum extrusions are widely used to build automated production lines and equipment guards, requiring extensive end-face and hole machining at connection points.

Surface Finishing: Enhancing Performance & Longevity

After machining, surface finishing is often applied to further enhance the properties of aluminum alloys, particularly in the aerospace sector.

• Anodizing: The most common finishing method. An electrochemical process creates an aluminum oxide layer on the surface, significantly improving corrosion resistance, surface hardness, and wear resistance. Based on thickness and application, it is classified into Type II (for decorative and general protection) and Type III (hard anodizing for high-wear environments).

• Chemical Conversion Coating (e.g., Chromating): Forms a thin chemical conversion layer on the aluminum surface, primarily providing corrosion protection and improving adhesion for subsequent coatings. It has minimal impact on dimensional accuracy and is commonly used for precision components such as avionics housings.

• Shot Peening: High-velocity media impacts the part surface, creating beneficial residual compressive stresses that significantly improve fatigue resistance. This is commonly applied to critical components subjected to cyclic loads, such as aircraft wings and landing gear parts.

FAQ:

I. Material Selection & Design

Q1: What aluminum alloy should I choose for CNC machining?

A1: Different alloys offer different performance and machinability characteristics:

• 6061 – The "universal alloy." Good balance of strength, corrosion resistance, and machinability. Cuts smoothly and is forgiving. Low cost. Ideal for brackets, enclosures, frames, and general mechanical parts.

• 7075 – High-strength, aerospace-grade material. Excellent fatigue resistance. Harder to machine with greater tool wear. Higher cost. Used for aircraft parts, racing components, and high-stress assemblies.

• 5052 – Outstanding corrosion resistance. Good machinability. Suitable for marine and outdoor applications.

• 2024 – Superior fatigue resistance. Used for aircraft fuselage frames and structural members.

Tip: When purchasing material, specifically ask for milling-suitable alloys. Some soft alloys (like Al99.5) are "gummy" and difficult to machine cleanly.

Q2: How thin can aluminum walls be in CNC parts?

A2: For most reliable jobs, wall thickness should stay above 1 mm. You can go thinner, but vibration risk rises quickly, especially on taller walls. The unofficial industry standard for minimum wall thickness is approximately 0.8 mm (0.794 mm). Thin walls are a common design mistake in CNC machining — if the design requires very thin features, consider alternative manufacturing processes like sheet metal fabrication.

Q3: What design features should I avoid to reduce machining costs?

A3: Avoid these common CAD design mistakes:

• Overly tight tolerances – Tighter than necessary tolerances significantly increase machining time and inspection costs.

• Internal sharp corners – Milling tools are cylindrical and always create a radius. Design corner radii at least ⅓ of the pocket depth.

• Deep cavities – Tool reach is limited. For deep pockets, consider stepped machining or EDM (Electrical Discharge Machining).

• Unnecessary aesthetic features – Removing material just for appearance adds cost. Consider post-processing like electropolishing instead.

Q4: Can aluminum be used for structural parts?

A4: Yes. Aluminum offers an excellent strength-to-weight ratio. It provides sufficient strength for many structural applications while weighing about one-third as much as steel. High-strength alloys like 7075 are used in aircraft structures, racing components, and automotive brackets that must survive constant vibration without fracturing.
