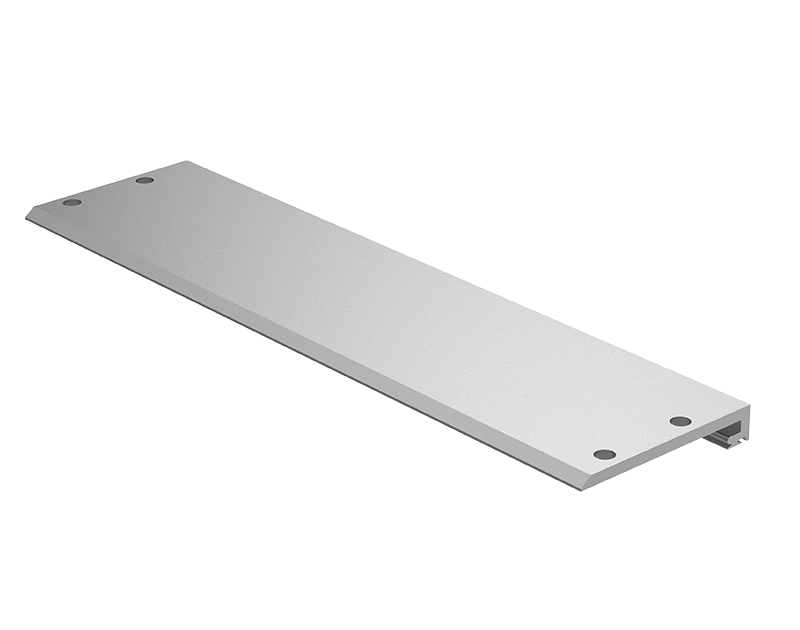

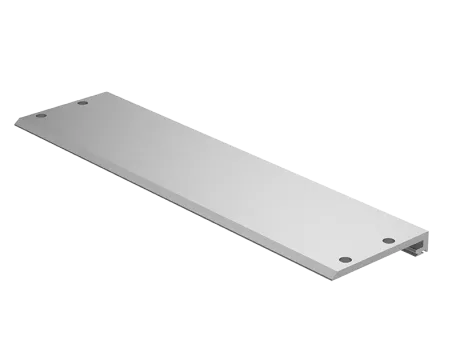

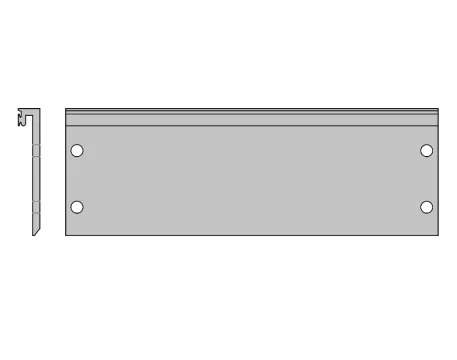

Bracket for EK&EG Subrack
Comply with GB/T1952/IEC60297 structural dimension standards
Bracket installation slot for installing EMC electromagnetic shielding spring,
Material: extruded aluminum profiles,
Surface treatment: anodizing, Chromic acid passivation.
The waist round hole can be used in conjunction with screws to secure the chassis to the cabinet
Material :extruded aluminum profiles AL alloy 6063
Surface treament: anodizing, Chromic acid passivation.

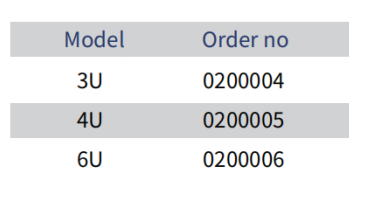

dimension:2U/4U/6U(1U=44.45mm)
Custom dimension:Support
EMC electromagnetic shielding spring: Stainless steel spring

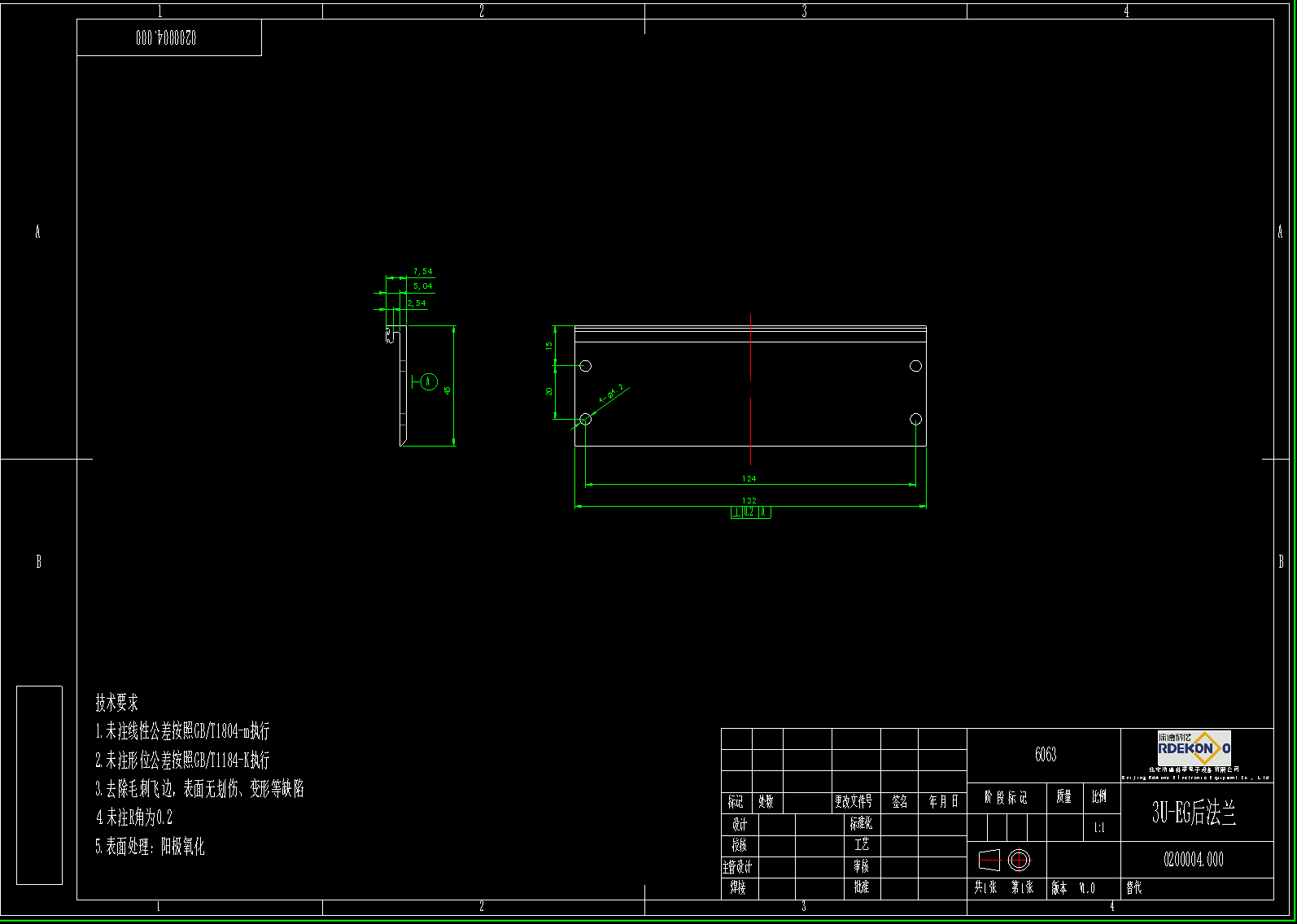

Drawing for Rear bracket EG:

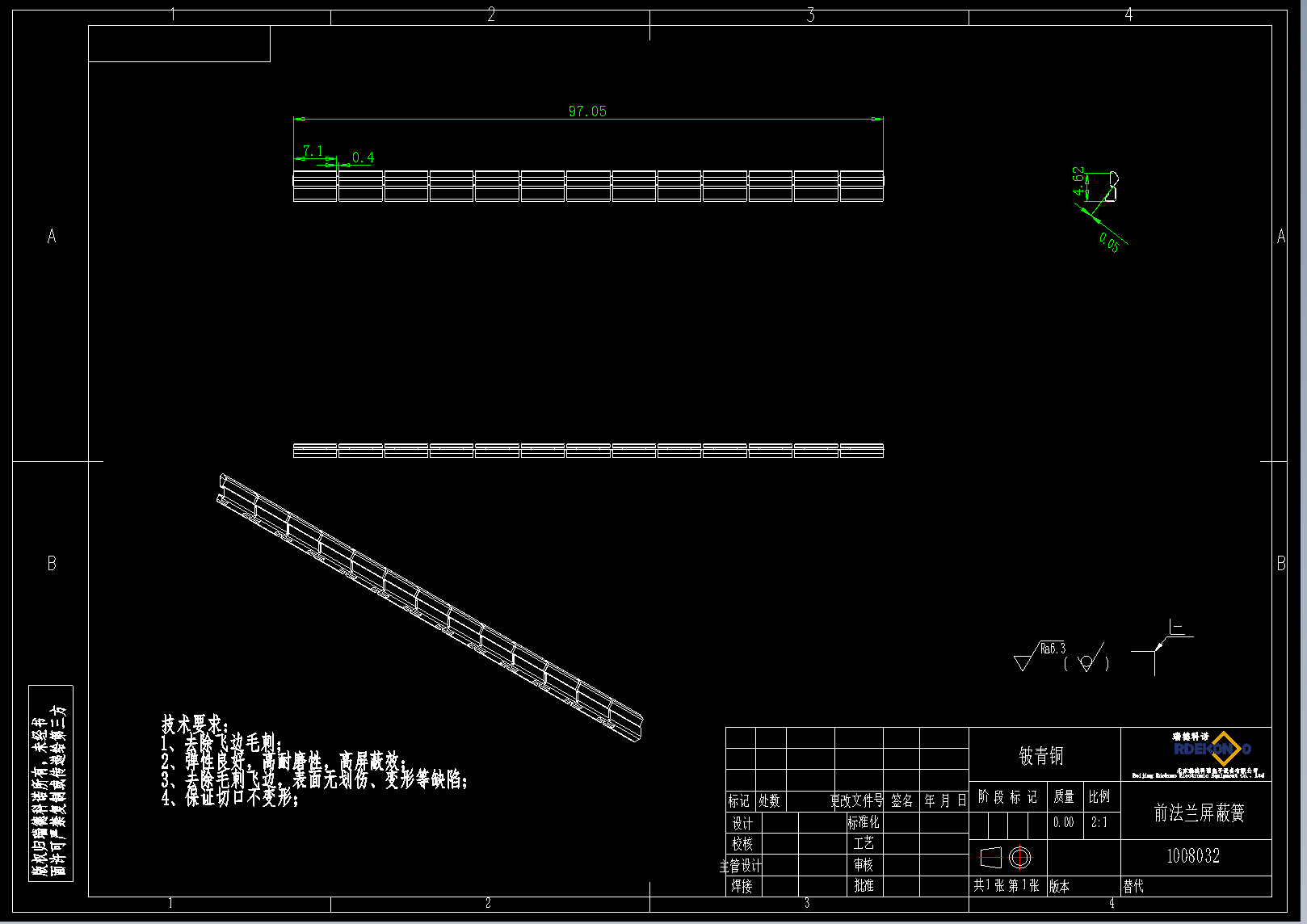

related EMC electromagnetic shielding spring:
