Type III Handle, What Is the Handle? How to Use the Type III Handle?

Sep. 24, 2023

What Is the Type III Handle?

The Type III Handle is a crucial accessory designed to assist with the insertion and extraction of PCB boards in subrack systems. It simplifies the pull-out operation, ensuring users can easily and safely handle circuit boards during maintenance or installation.

This handle assembly consists of four key components:

  • Handle: Made of PC+GF20% (Polycarbonate with 20% glass fiber), featuring excellent strength and durability. It complies with the fire retardant standard UL94V1.

  • Scutcheon (Cover Plate): Manufactured from aluminum alloy 6063T5, providing sturdy protection and a clean finish.

  • Printed Board Bracket: Constructed from die-cast zinc alloy with nickel plating, ensuring corrosion resistance and structural stability.

  • Shaft: Made of brass, offering reliable rotation and mechanical support.

These materials are carefully selected to provide a balance of durability, safety, and aesthetic appeal, suitable for demanding industrial environments.


Type III handle, what is the handle? How to use the Type III handle?

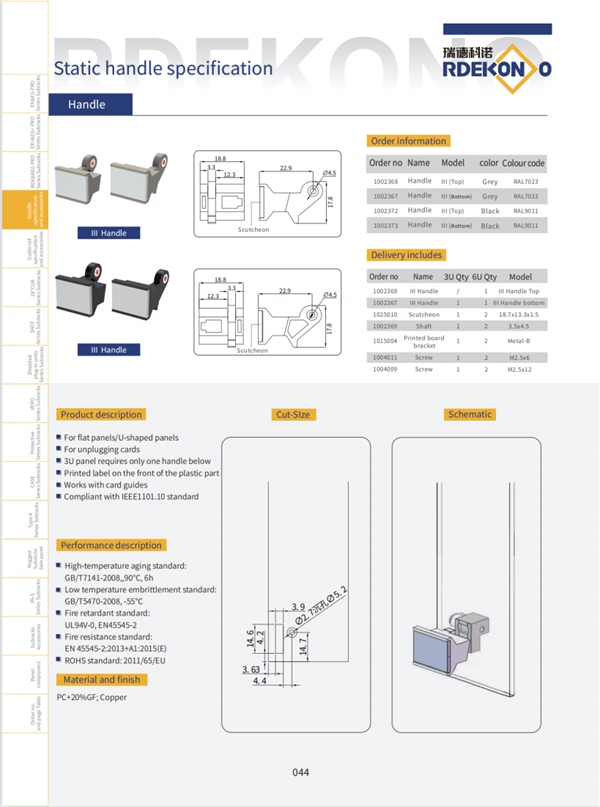

Chinese Product Specification

How to Use the Type III Handle?

The usage of the Type III Handle depends on the size of the PCB board installed in the subrack:

  • For 3U Boards: Only one handle needs to be installed at the bottom of the PCB. This simplifies the design while ensuring secure handling.

  • For 6U Boards: Two handles are required, one at the top and one at the bottom, to provide balanced support during insertion and extraction.

Installation Tips:

  • Ensure the handle components are firmly secured during assembly to avoid loosening during operation.

  • Avoid excessive force when pulling out the PCB to prevent damage to the handle or board.

  • The handle is designed for easy replacement or customization, allowing adaptation to various user needs.


Type III handle, what is the handle? How to use the Type III handle?cid=8Type III handle, what is the handle? How to use the Type III handle?cid=8

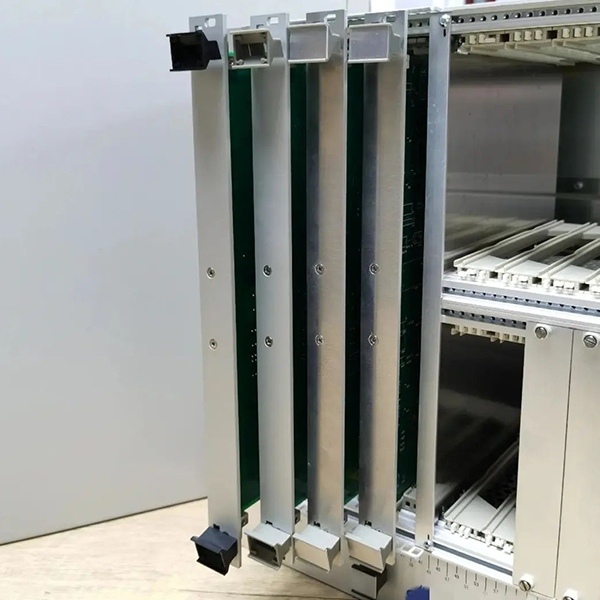

When using a 3U board, only the bottom needs to be installed, Just one handle is enough.When used for a 6U plug-in board, two handles are required at the top and bottom


This structure is relatively mature and widely applicable as a pull-out handle for subracks.


Type III handle, what is the handle? How to use the Type III handle?Type III handle, what is the handle? How to use the Type III handle?Type III handle, what is the handle? How to use the Type III handle?Type III handle, what is the handle? How to use the Type III handle?

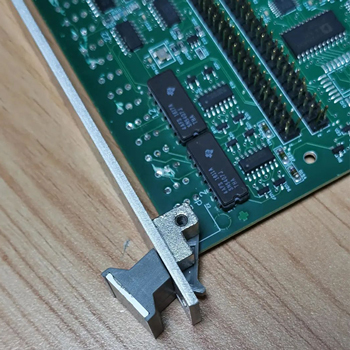

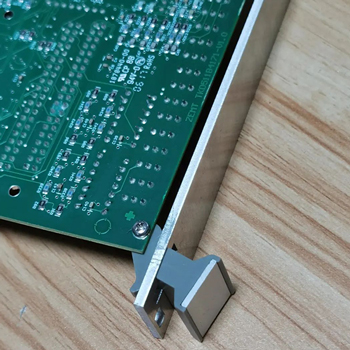

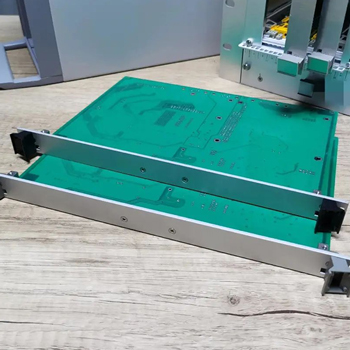

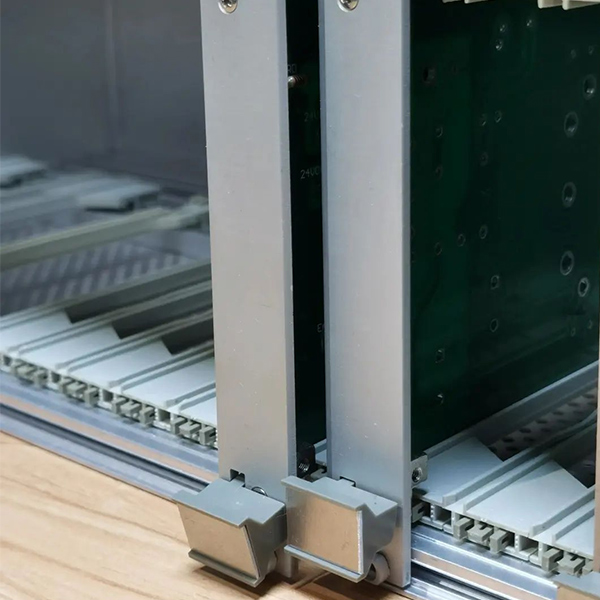

6u board component diagram3U board assembly imagePicture of bottom handle installation3U plugin assembly image


Type III handle, currently available in gray and black colors, and can also be customized according to customer needs.


Advantages and Applications of the Type III Handle

  • Mature and Widely Used Design: The Type III handle has proven reliability and is widely adopted in subrack systems across multiple industries.

  • Material Excellence: Fire retardant PC with glass fiber reinforcement ensures safety and long-term durability.

  • Color Options and Customization: Available in standard gray and black colors, with customization options to fit customer requirements.

  • Ideal for Industries: Perfect for telecommunications, railway electronics, industrial automation, and other subrack-based applications.
