PCB board guide rail

The plastic guide rail for PCBs or plug-in units of the type Standard, forms a reliable interface between the subrack mechanics and the sub-assemblies.These components are part of our extensive range of subrack accessories and are fully compatible with IEC 60297 subrack systems.

19 Inch Subrack Chassis Accessories：Plastic guide rail for 2 mm groove width. Support color customized

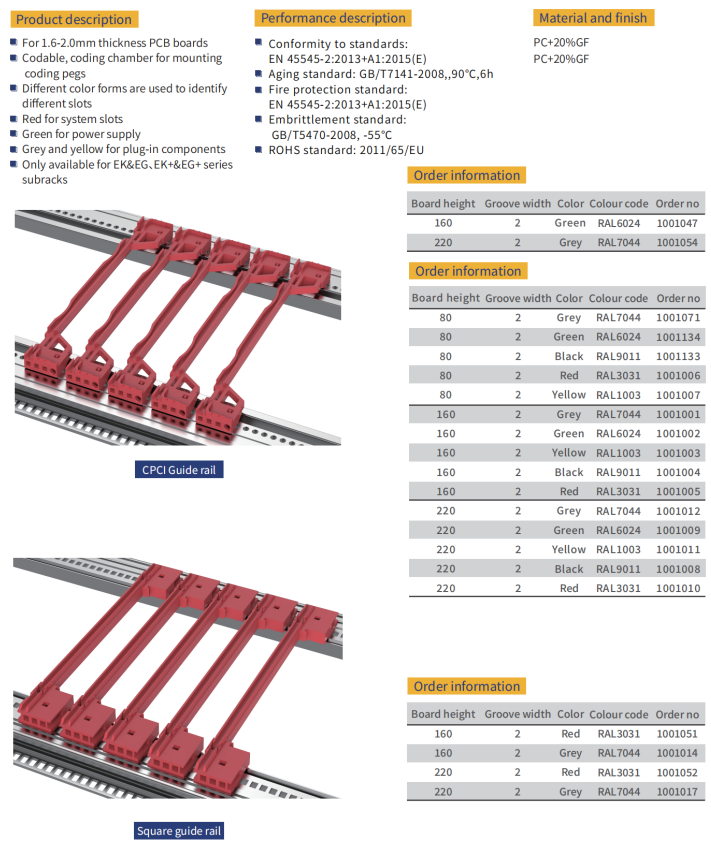

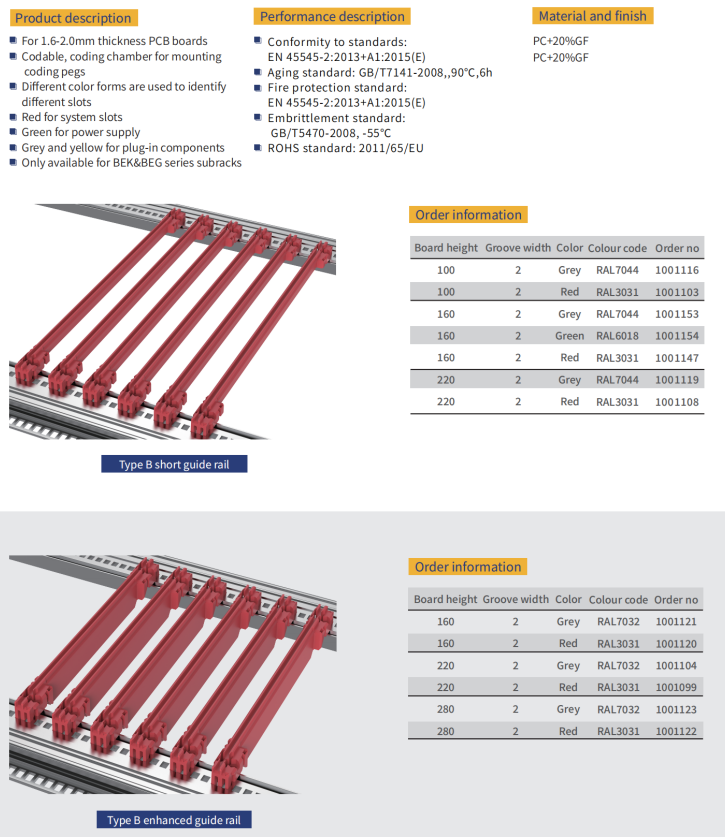

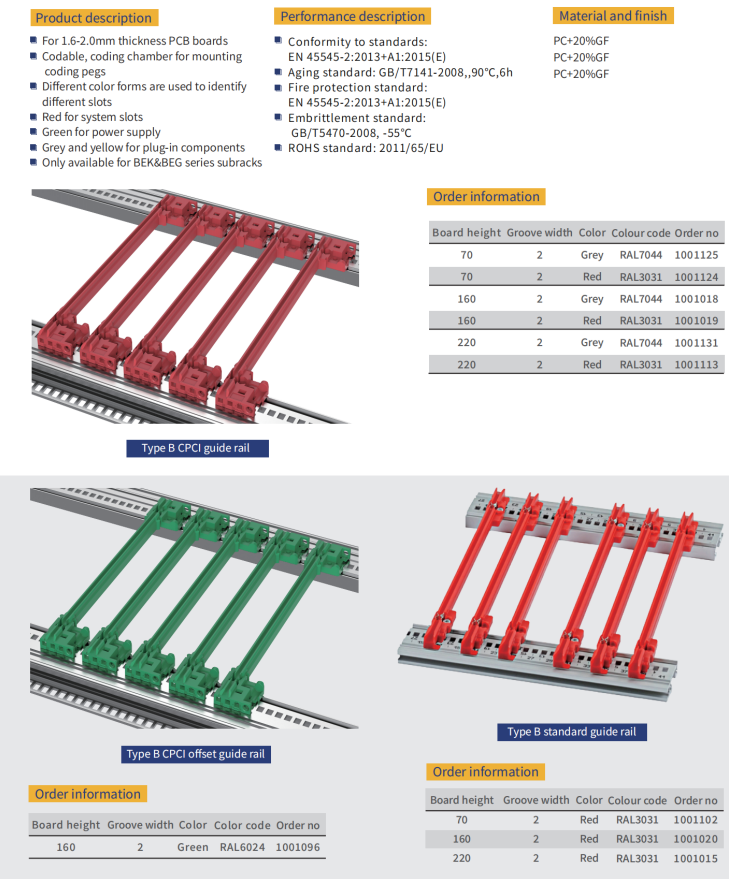

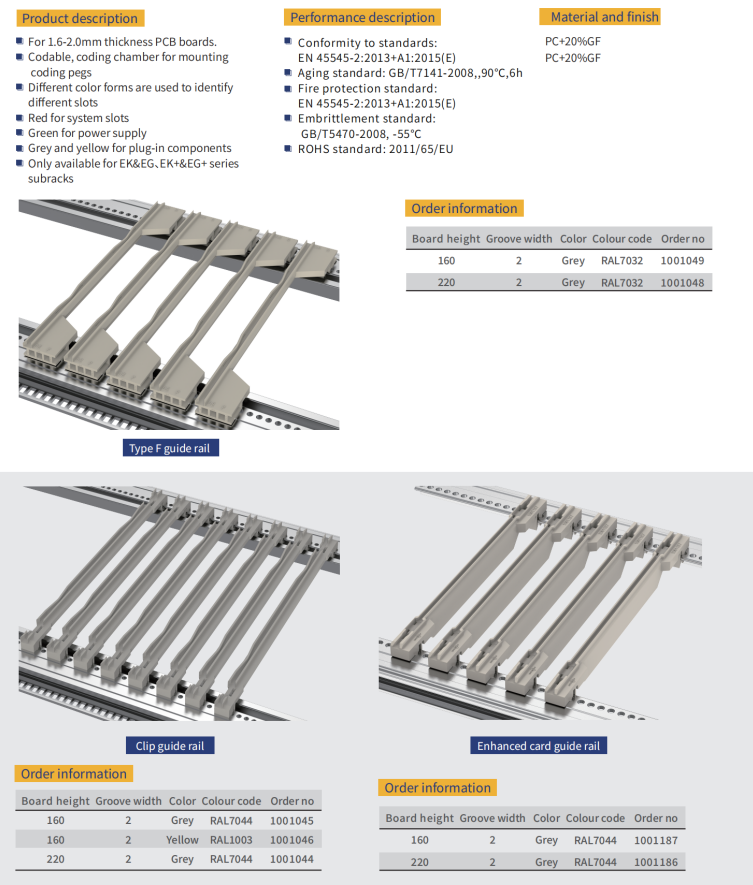

• Standard plastic guide rail：

• NEW generation Standard type plastic guide rails for reliable retention of PCBs or plug-in units.
• Significantly increased stability, due to a optimized design and high quality material (PC).
• Improved fire safety properties, fulfills EN 45545-2 requirement.

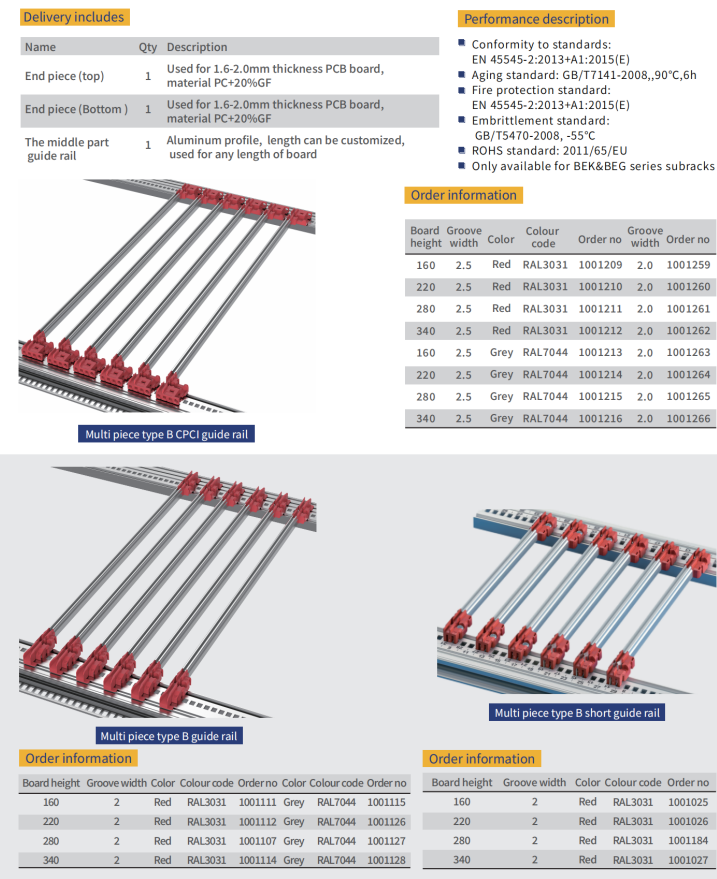

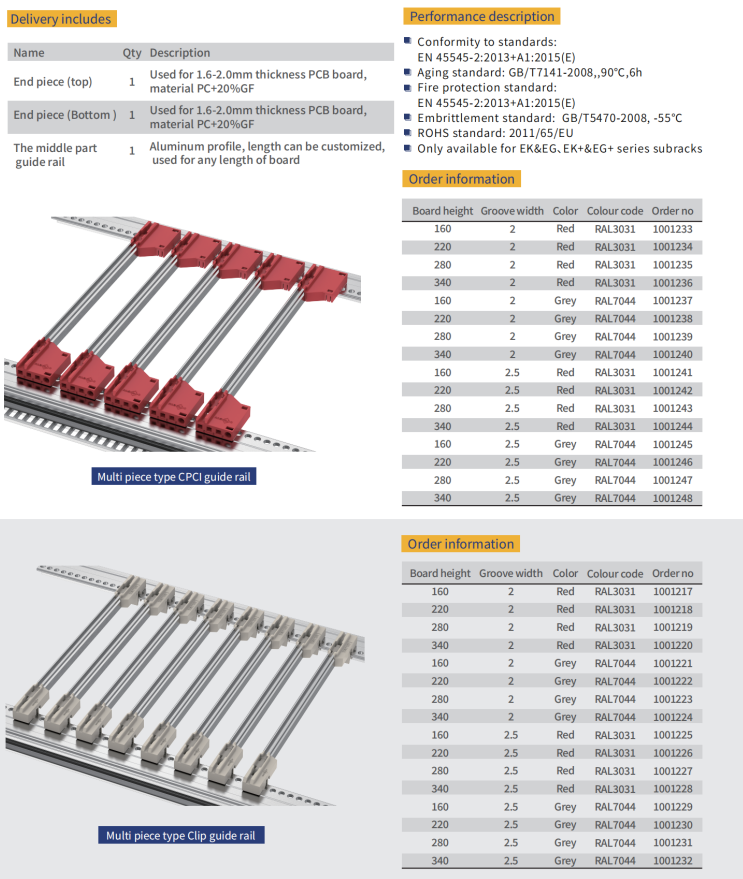

Multi piece guide rail:

• For 1.6-2.0mm thickness PCB boards.

• Codable, coding chamber for mounting coding pegs.

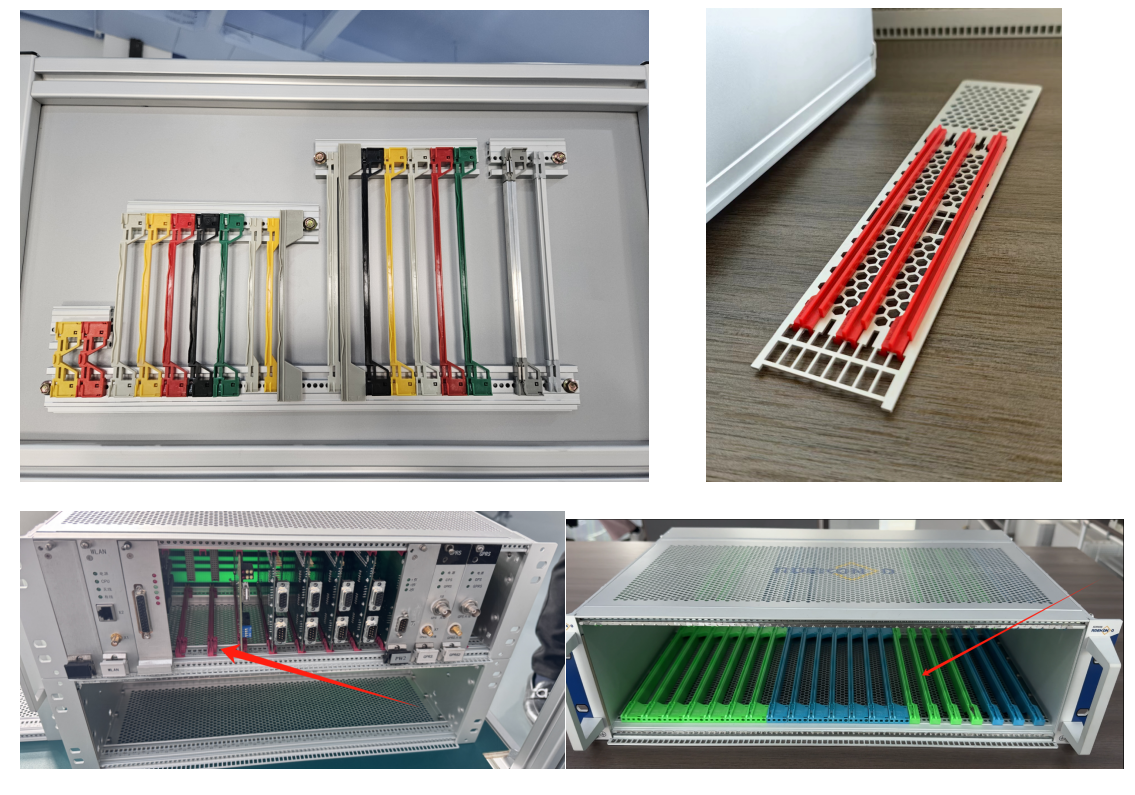

• Different color forms are used to identify different slots.

• Red for system slots.

• Green for power supply.

• Grey and yellow for plug-in components

This plastic guide rail for PCBs or drive units of the accessory type, forms a reliable interface between the subrack mechanics and the sub-assemblies. The guide rails can additionally be bolted to the horizontal rail or 1.5 mm thick plates for higher shock and vibration requirements. Guide rail can be optional equipped with a ESD clip, which ensures conductive contact between PCB and horizontal rail.

Explore our full range of accessories and learn more about our IEC 60297-compliant subracks to find the right solution for your electronic assembly needs.
