Jun. 20, 2025
RDEKONO 19 inch subrack accessories:

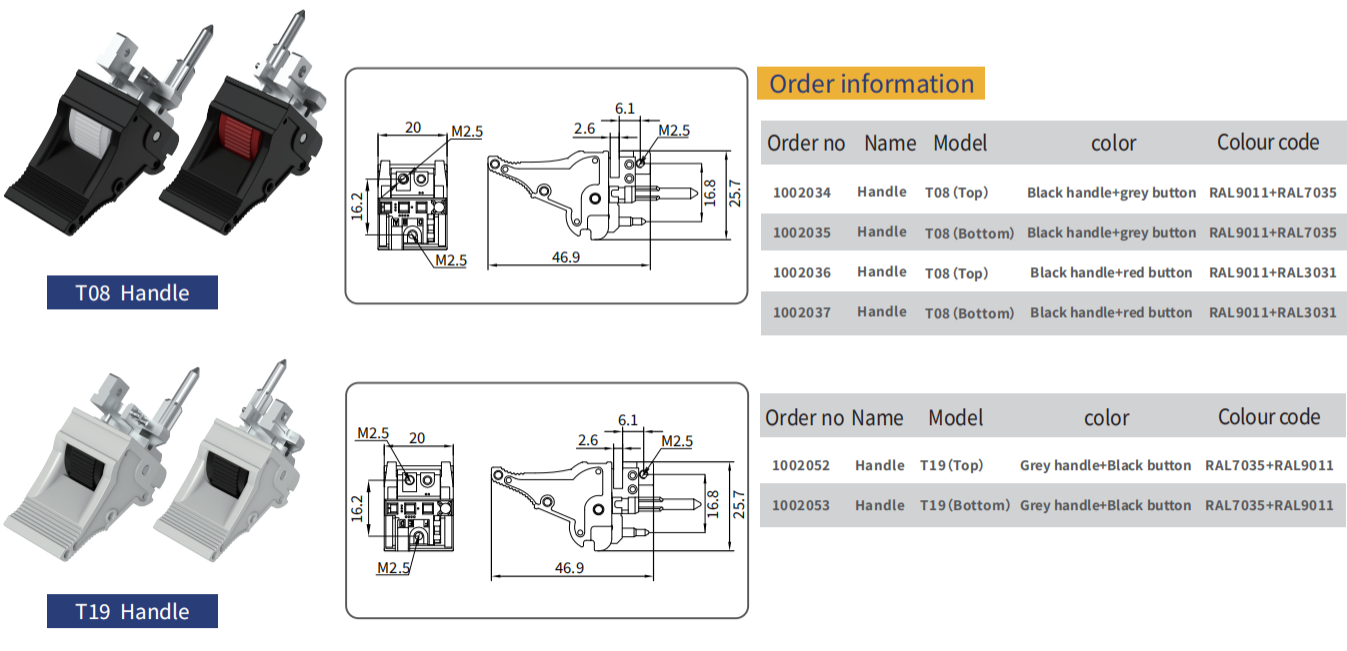

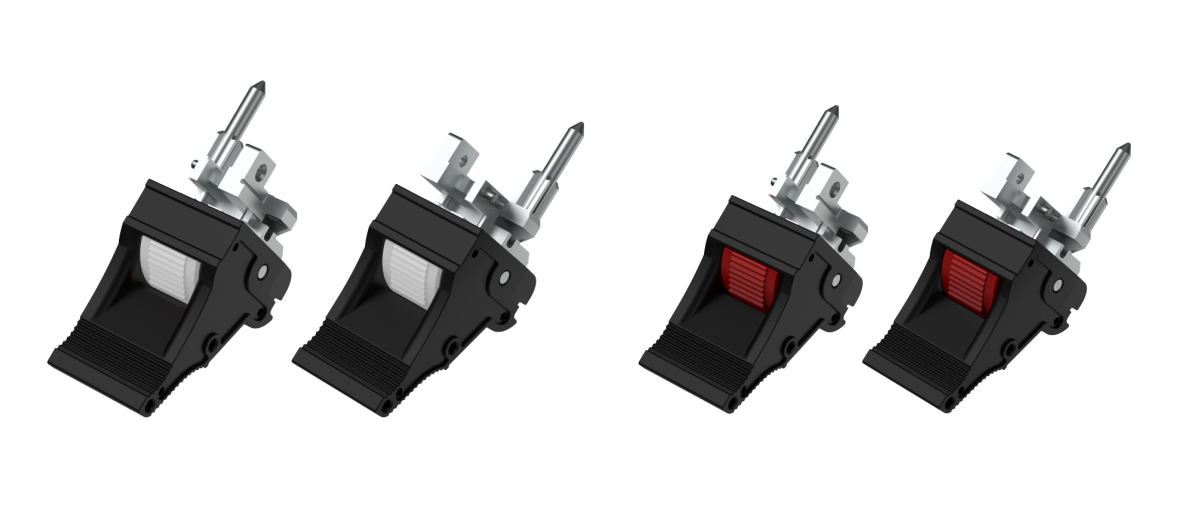

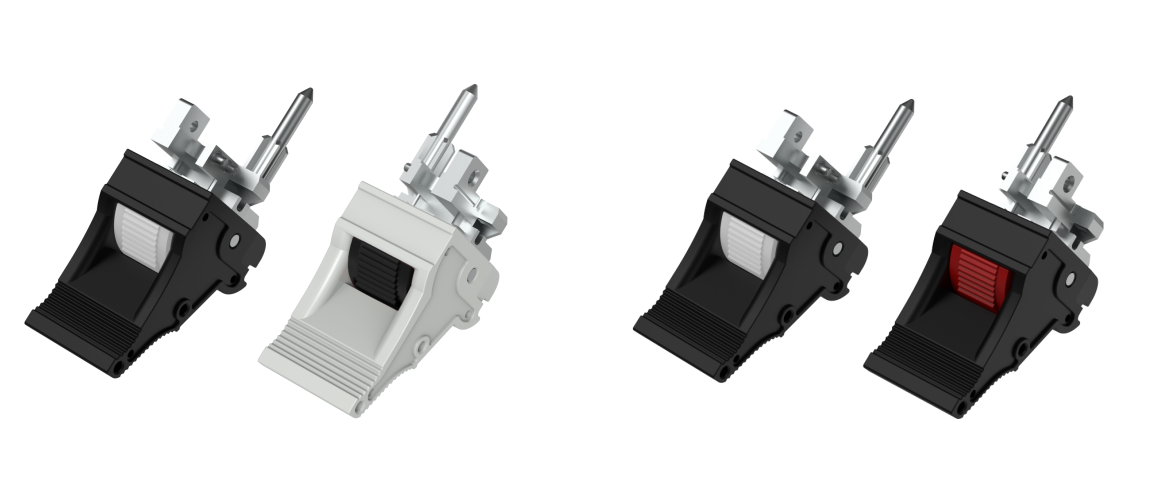

T08/T19 CPCI injector handle works with front panels, support color customized.
PRODUCT APPLICATION:
PRODUCT DESCRIPTION:
Suitable for flat panel/U-shaped panel
For PCB board insertion and extraction
Use with front rails with square hole
Optional micro switch for hot-swapping
Codable to realize anti-insertion function
Compliant with lEEE1101.10 standard
PERFORMANCE DESCRIPTION:
High-temperature aging standard: GB/T7141-2008,,90°C,6h
Low temperature embrittlement standard: GB/T5470-2008,-55°C
Fire retardant standard: UL94V-0,EN45545-2
Fire resistance standard: EN 45545-2:2013+A1:2015(E)
ROHS standard:2011/65/EU
Material and finish:
Plastic: PC+20% GF, zinc alloy nickel plated
None
Oct. 01, 2023
For PCB board of the subrack insertion and extraction, Provides assistance when pulled out.Composed of four parts: handle, scutcheon, printed board bracket, and shaft. Handle material: PC+GF20%, Fire retardant standard: UL94V1, printed board bracket material: die-cast zinc alloy surface nickel plating.
Oct. 08, 2023
The subrack does not have a series of profiles, and after receiving an order, it is usually customized and processed according to the drawings. Products from different customers and products of different specifications from the same customer all need to be redesigned and processed, resulting in higher costs;
