Performance description:

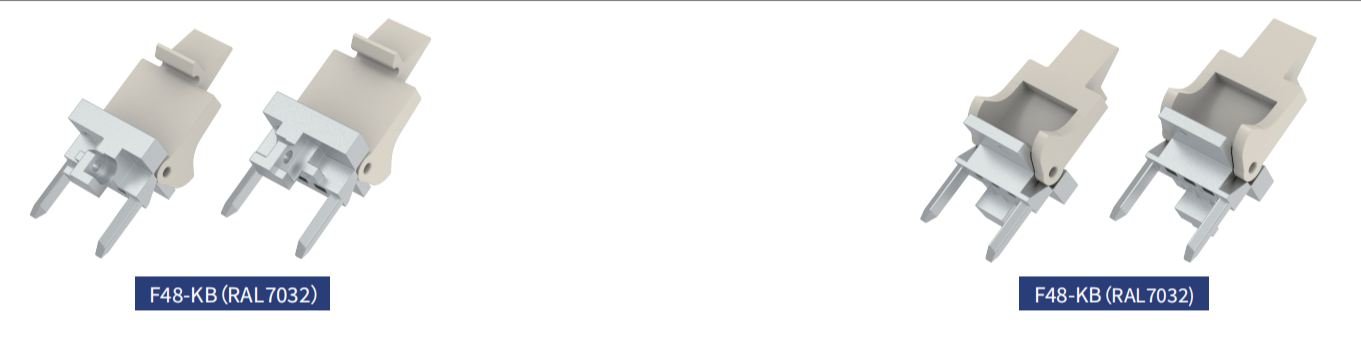

DIN-Power fixing bracket puller is used in conjunction with an encoderrail to achieve anti insertion error function (refer topage 42 for anti insertion error usage specifications)
Fire protection standards:UL94V-0, EN45545-2
Aging standard:GB/T7141-2008, 90°c, 6h
Brittle standard: GB/T5470-2008,-55°C
ROHS standard: compliant with 2011/65/EU
Product description:

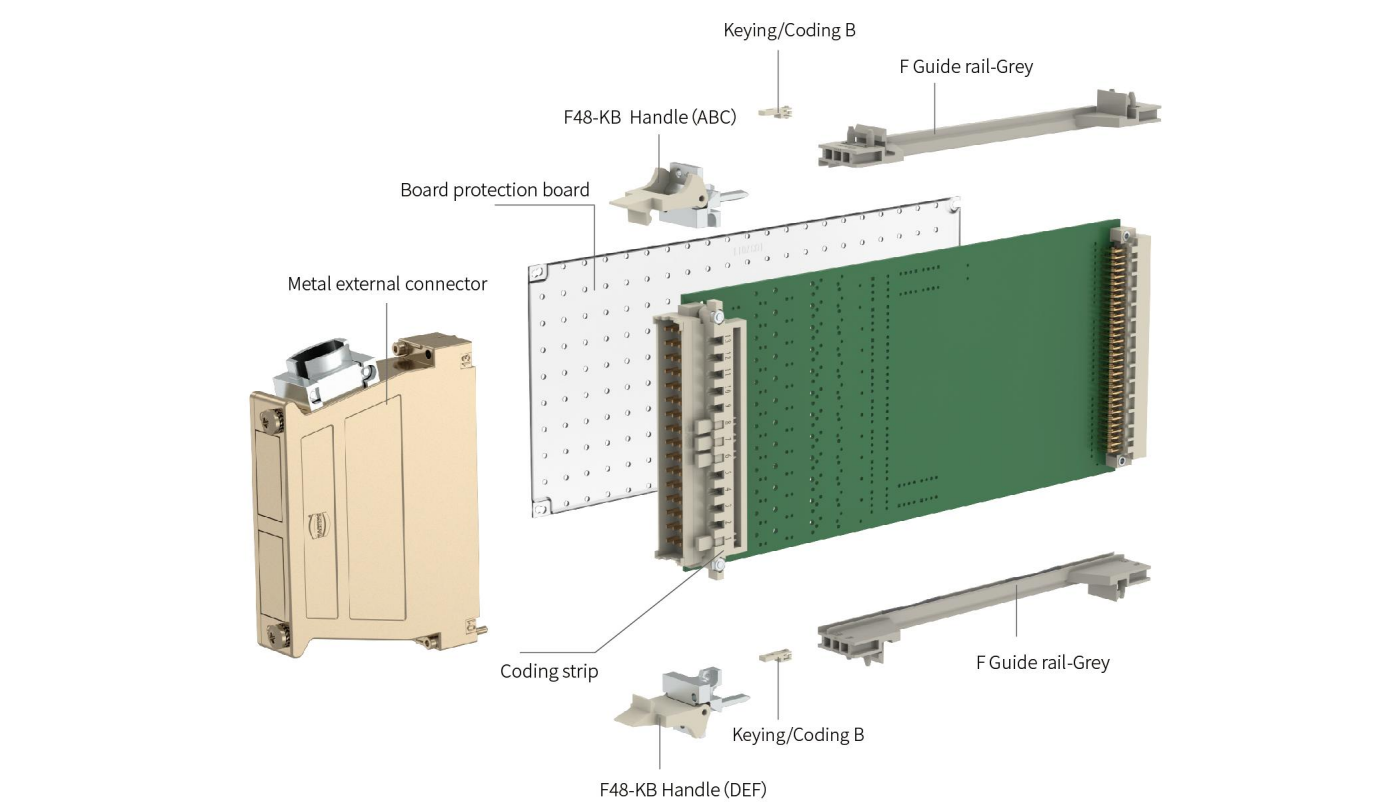

This product is mainly used for unpluggingPCB boards and installing external connectors,providing additional installation torque forexternal connectors and improving the reliabilityof electrical connections.The front end of EURO CARD is welded withconnectors that comply with DlN41612 standard,which are used in conjunction with external connectors for front-end outgoing lines.
Material and finish:

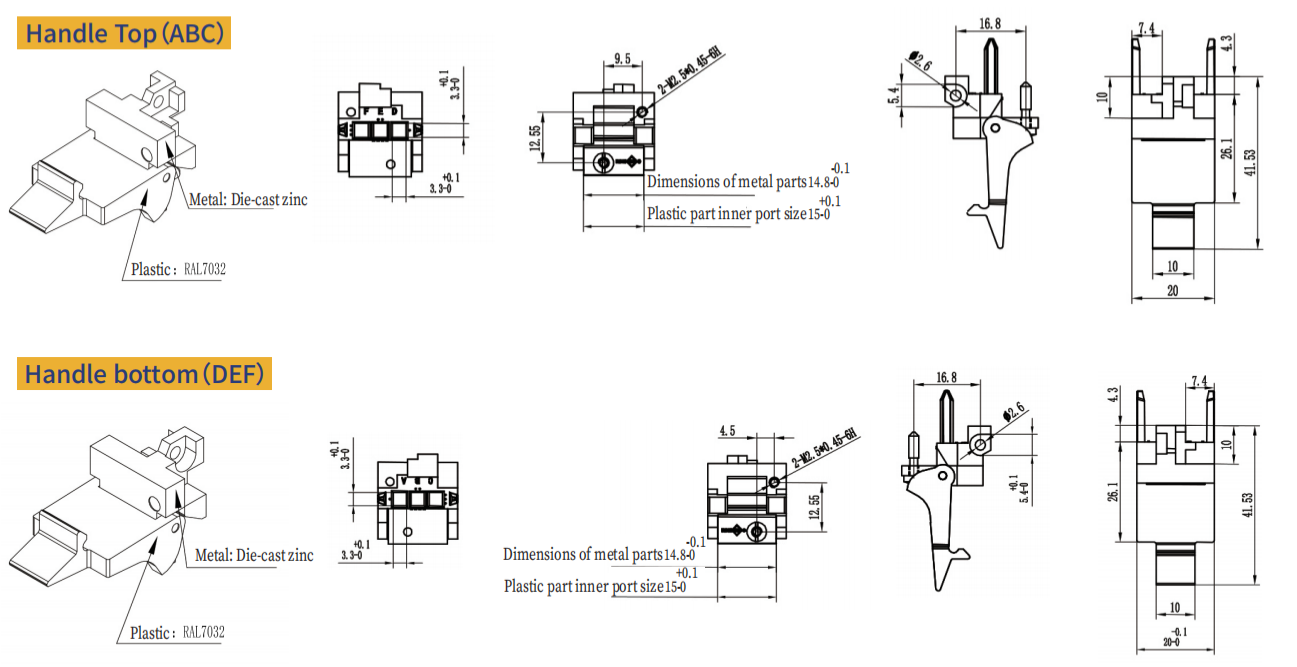

PC+20%GF, Zinc alloy nickelplating
Color: RAL7032 Support customization of other colors, inquire by phone
Our factory produce DIN-Power fixing bracket and connectors that can fully substitute for HARTING, Compared to the original, our product is more cost-effective and of good quality.
