Nov. 14, 2025
The world railway network is the artery of modern commerce and transportation. The core of these complex systems - powering signals, passenger information, train control, and communication networks - is the critical electronic component. These components require a fortress: a chassis that can withstand the relentless impacts, vibrations, and harsh environments encountered in daily life.
Beijing Rdekono Electronic Equipment Co.,Ltd is a leading manufacturer of 19’’subrack, providing solutions for TCMS (train control systems). We have developed a series of subrack installations for projects such as network unit, security unit, and brake unit, which are used for the Fuxing Express, 250 km, 300 km, 350 km, Chinese standard high-speed trains (Jingxiong Line, Jingzhang Line, Jinghu Line), as well as some subway projects in Kunming, Chongqing, Guangzhou, Beijing, and Tianjin.

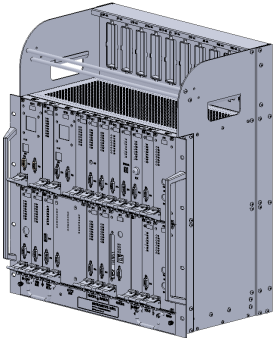

1. 6A Central Processing Platform: It can be classified into rack-mounted, wall-mounted, and pedestal-mounted types, and is installed in the head section of the 160 km/h power-concentrated EMU.
Beijing Rdekono Electronic Equipment Co.,Ltd designed and developed the 6A Central Processing Platform in a rackmount subrack configuration, later upgraded to base-mounted and wall-mounted structural versions.
• Key functions include: integrated alarm processing, safety data storage, human–machine interface, centralized power distribution, real-time network transmission, dual-processor redundancy, and expandable subsystem monitoring.
• The platform remains in mass production and long-term operational use to this day.

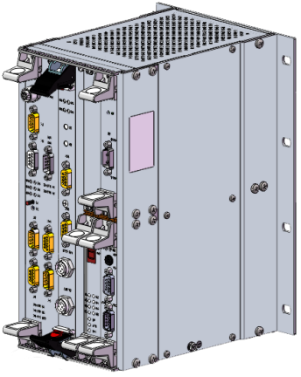

2. Axle Box Vibration Detection Host Unit：
Installed on the 250 km/h "Fuxing" Chinese Standard Electric Multiple Unit (EMU).

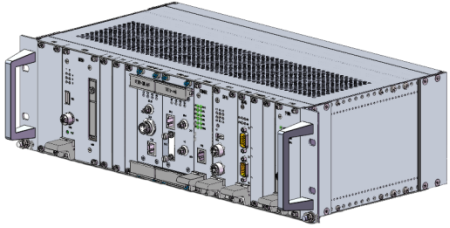

3. On-board Safety Monitoring System
Installed on the Beijing-Xiong'an High-speed Railway Line.
Beijing Rdekono Electronic Equipment Co.,Ltd developed a new generation of 450 km/h intelligent safety monitoring system main subracks, video surveillance system main subracks, and onboard multi-network data integration platform subracks.
Additionally, participated in the design and development of several specialized subracks used in the Jakarta–Bandung High-Speed Railway Project, including:
• Signal conditioning subrack (high-voltage subrack)
• Onboard signal conditioning subrack (low-voltage subrack)
• Pantograph-catenary data acquisition device subrack

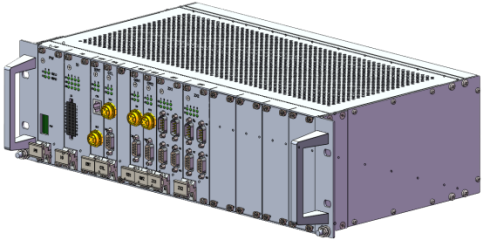

4. WTD (Wireless Transmission Device) - For Fuxing Hao / Fuxing Series EMUs

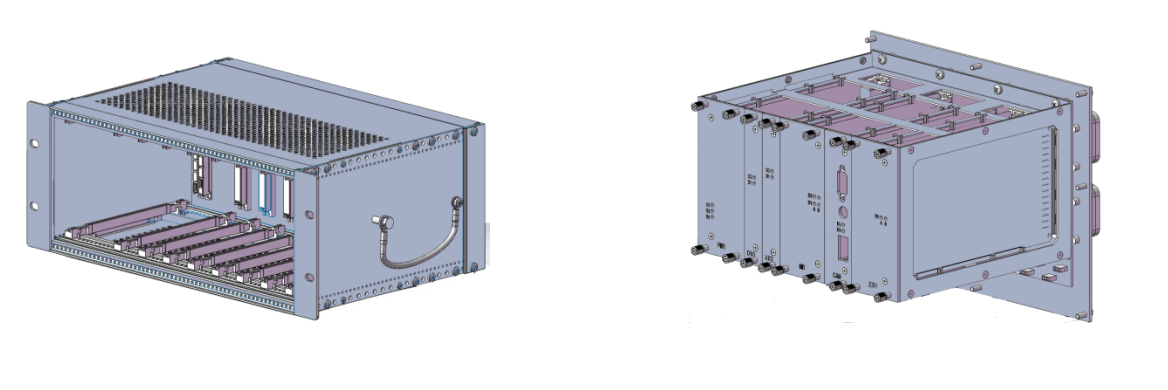

5. Central Control Unit (CCU) - Fuxing Series EMU
6. Conventional brake system mounted on the under-frame of the train
None
Oct. 01, 2023
For PCB board of the subrack insertion and extraction, Provides assistance when pulled out.Composed of four parts: handle, scutcheon, printed board bracket, and shaft. Handle material: PC+GF20%, Fire retardant standard: UL94V1, printed board bracket material: die-cast zinc alloy surface nickel plating.
Oct. 08, 2023
The subrack does not have a series of profiles, and after receiving an order, it is usually customized and processed according to the drawings. Products from different customers and products of different specifications from the same customer all need to be redesigned and processed, resulting in higher costs;
