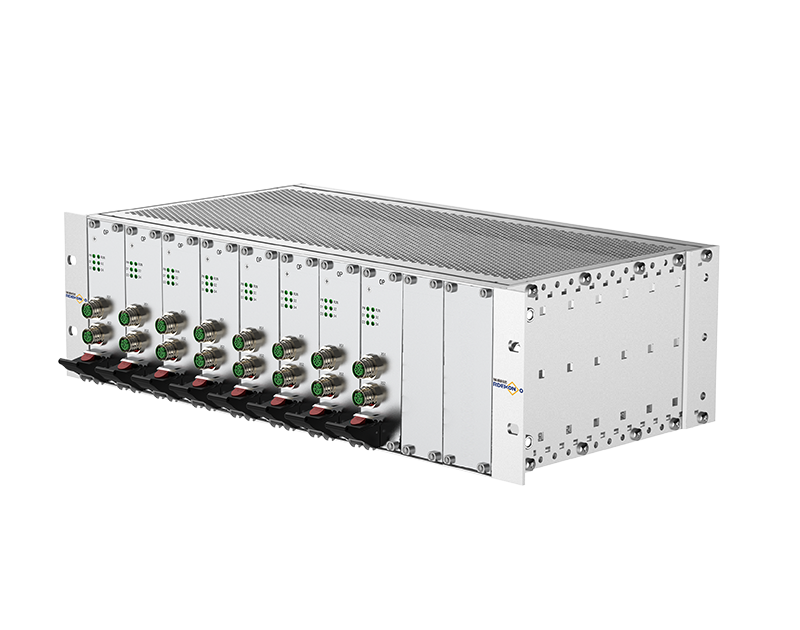

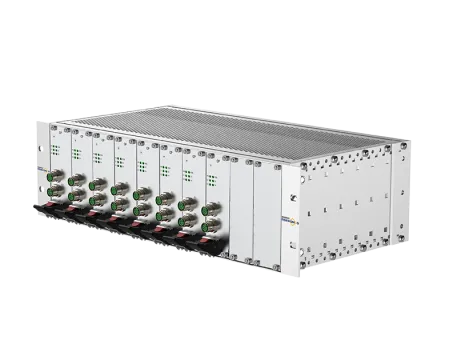

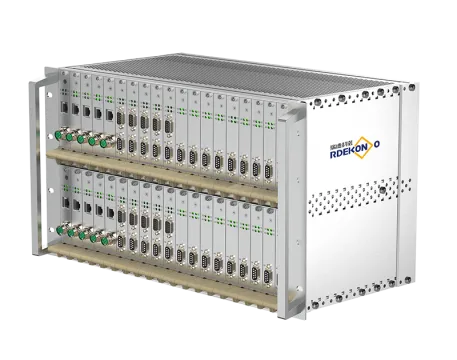

BEK&BEG PRO Series- EuropacPRO 19
The current models of the BEK series chassis are divided into:
Chassis height: 3U chassis, 4U chassis, 6U chassis, 4U chassis can add fan disks,
Chassis width: 42TE, 63TE, 84TE
Chassis depth: 245, 285, 345
Are you looking for a reliable and innovative supplier for your subrack shielding box needs? Beijing Rdekono is committed to providing high-quality subrack shielding boxes. Our BEK series subracks have cutting-edge designs and comprehensive customization options to meet the stringent requirements of modern electronic systems. Leveraging our extensive expertise and advanced manufacturing technologies, we bring you frame shielding solutions that exceed your expectations, ensuring optimal performance and protection for your devices.
◆Subrack Shielding case (CompactPCI)·Light beam, Can better reduce the weight, bearing performance unchanged
◆Suitable for CompactPCl and VME64x insertion and extractor handles
◆Rear horizontal railfor backplane mounting with insulation strip; For applications that install backplanes or connectors, Horizontal rails, rear, for connector mounting (IEC 60603-2 /DIN41612)
◆Typical shielding 40dB at 1GHz, 30dB at 2GHz(as to VG 95373, part15), on condition zhat zhe front is sealed with shielded front panels
◆For reall/O application

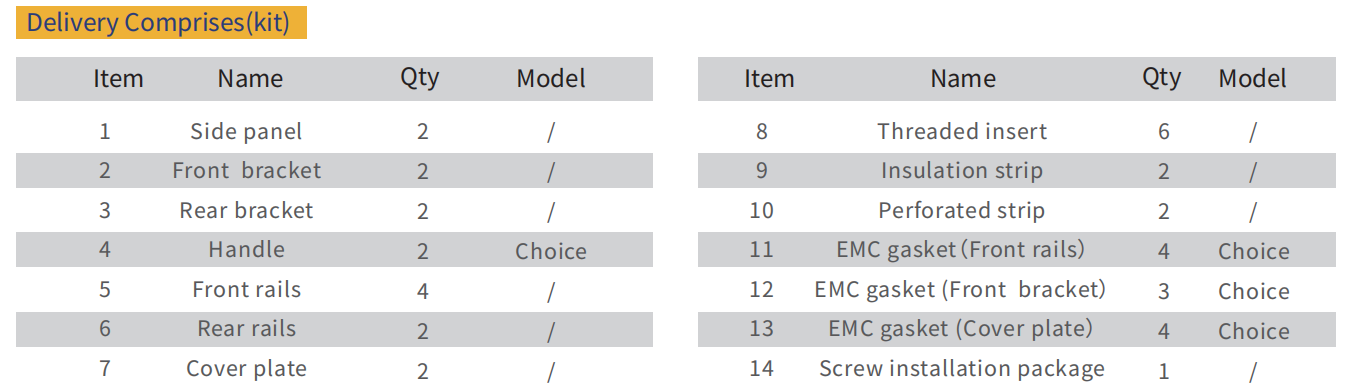

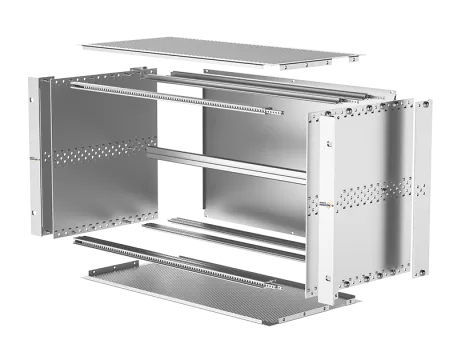

| Delivery Comprises(kit) | |||||||
| Item | Name | Qty | Model | Item | Name | Qty | Model |
| 1 | Side panel | 2 | / | 8 | Threaded insert | 6 | / |
| 2 | Front bracket | 2 | / | 9 | Insulation strip | 2 | / |
| 3 | Rear bracket | 2 | / | 10 | Perforated strip | 2 | / |
| 4 | Handle | 2 | Choice | 11 | EMC gasket(Front rails) | 4 | Choice |
| 5 | Front rails | 4 | 12 | EMC gasket(Front bracket) | 3 | Choice | |
| 6 | Rear rails | 2 | / | 13 | EMC gasket(Cover plate) | 4 | Choice |
| 7 | Cover plate | 2 | 14 | Screw installation package | 1 | / | |

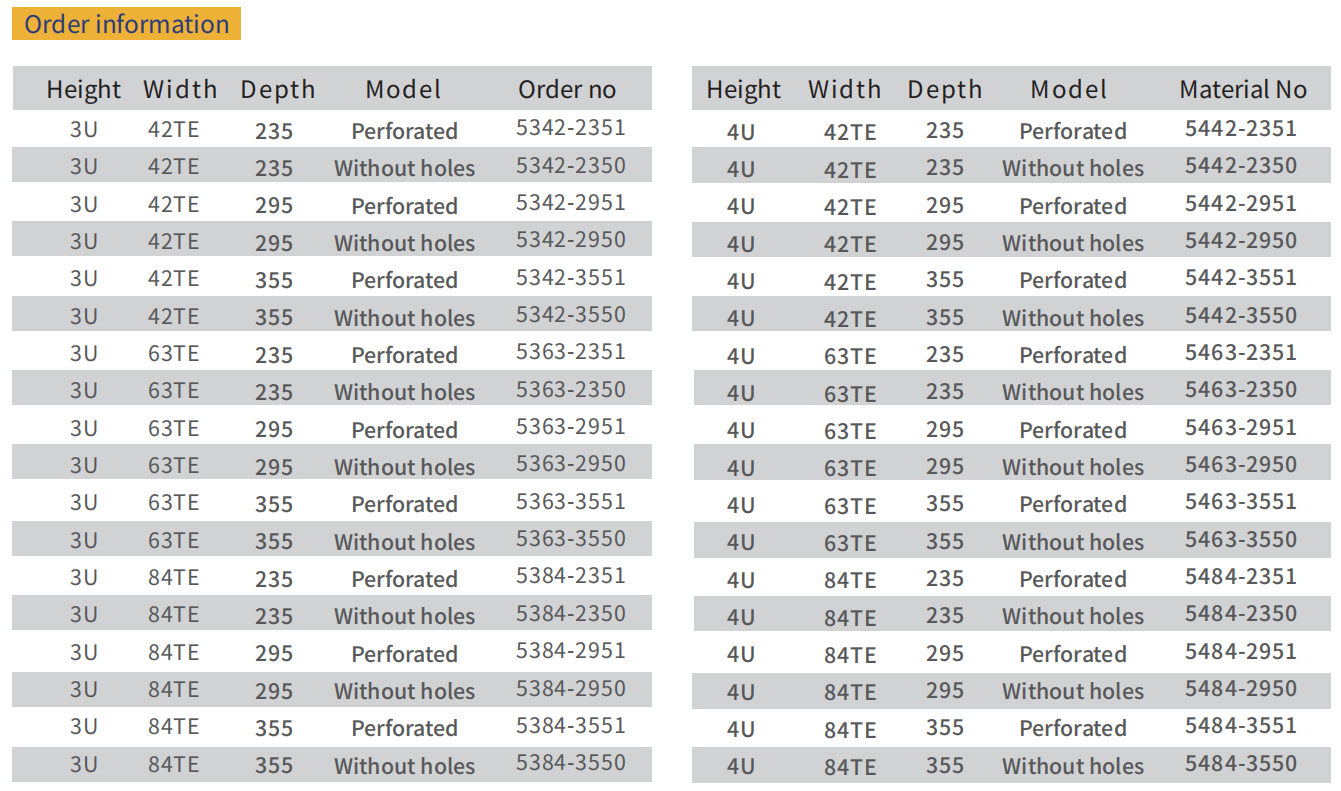

| Order information | |||||||||
| Height | Width | Depth | Model | Order no | Height | Width | Depth | Model | Material No |
| 3U | 42TE | 235 | Perforated | 5342-2351 | 4U | 42TE | 235 | Perforated | 5442-2351 |
| 3U | 42TE | 235 | Without holes | 5342-2350 | 4U | 42TE | 235 | Without holes | 5442-2350 |
| 3U | 42TE | 295 | Perforated | 5342-2951 | 4U | 42TE | 295 | Perforated | 5442-2951 |
| 3U | 42TE | 295 | Without holes | 5342-2950 | 4U | 42TE | 295 | Without holes | 5442-2950 |
| 3U | 42TE | 355 | Perforated | 5342-3551 | 4U | 42TE | 355 | Perforated | 5442-3551 |
| 3U | 42TE | 355 | Without holes | 5342-3550 | 4U | 42TE | 355 | Without holes | 5442-3550 |
| 3U | 63TE | 235 | Perforated | 5363-2351 | 4U | 63TE | 235 | Perforated | 5463-2351 |
| 3U | 63TE | 235 | Without holes | 5363-2350 | 4U | 63TE | 235 | Without holes | 5463-2350 |
| 3U | 63TE | 295 | Perforated | 5363-2951 | 4U | 63TE | 295 | Perforated | 5463-2951 |
| 3U | 63TE | 295 | Without holes | 5363-2950 | 4U | 63TE | 295 | Without holes | 5463-2950 |
| 3U | 63TE | 355 | Perforated | 5363-3551 | 4U | 63TE | 355 | Perforated | 5463-3551 |
| 3U | 63TE | 355 | Without holes | 5363-3550 | 4U | 63TE | 355 | Without holes | 5463-3550 |
| 3U | 84TE | 235 | Perforated | 5384-2351 | 4U | 84TE | 235 | Perforated | 5484-2351 |
| 3U | 84TE | 235 | Without holes | 5384-2350 | 4U | 84TE | 235 | Without holes | 5484-2350 |
| 3U | 84TE | 295 | Perforated | 5384-2951 | 4U | 84TE | 295 | Perforated | 5484-2951 |
| 3U | 84TE | 295 | Without holes | 5384-2950 | 4U | 84TE | 295 | Without holes | 5484-2950 |
| 3U | 84TE | 355 | Perforated | 5384-3551 | 4U | 84TE | 355 | Perforated | 5484-3551 |
| 3U | 84TE | 355 | Without holes | 5384-3550 | 4U | 84TE | 355 | Without holes | 5484-3550 |

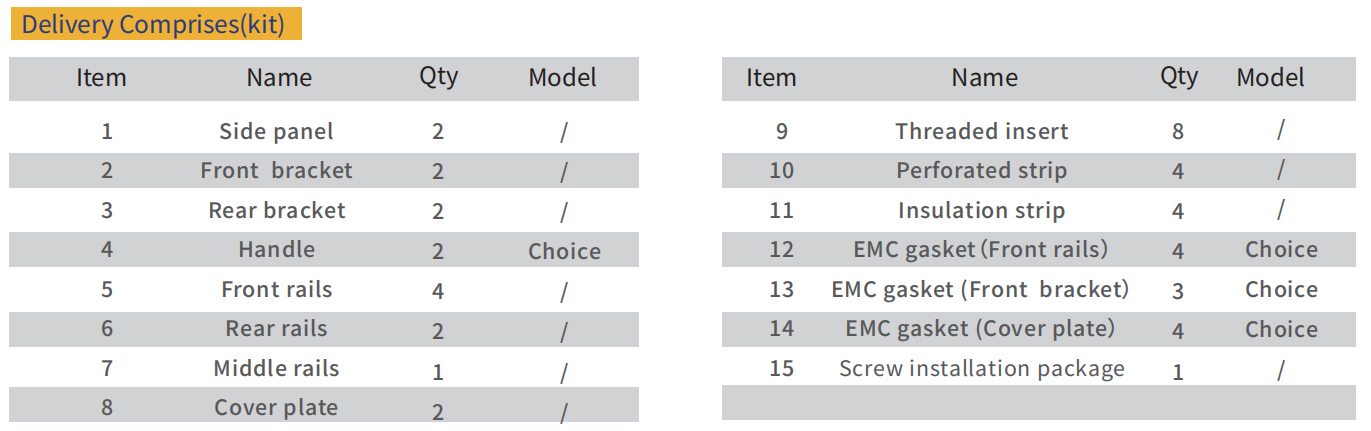

| Delivery Comprises(kit) | |||||||
| Item | Name | Qty | Model | Item | Name | Qty | Model |
| 1 | Side panel | 2 | / | 9 | Threaded insert | 8 | / |
| 2 | Front bracket | 2 | / | 10 | Perforated strip | 4 | / |
| 3 | Rear bracket | 2 | / | 11 | Insulation strip | 4 | / |
| 4 | Handle | 2 | Choice | 12 | EMC gasket(Front rails) | 4 | Choice |
| 5 | Front rails | 4 | / | 13 | EMC gasket(Front bracket) | 3 | Choice |
| 6 | Rear rails | 2 | / | 14 | EMC gasket(Cover plate) | 4 | Choice |
| 7 | Middle rails | 1 | / | 15 | Screw installation package | 1 | / |
| 8 | Cover plate | 2 | / | ||||

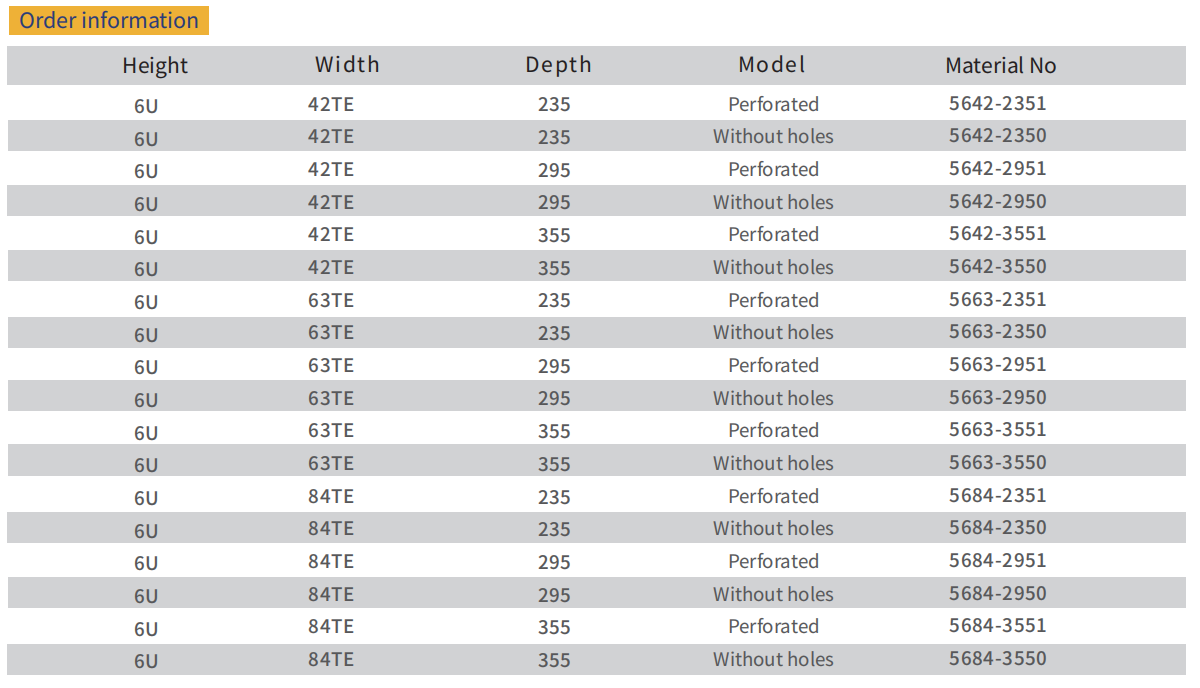

| Order information | ||||
| Height | Width | Depth | Model | Material No |
| 6U | 42TE | 235 | Perforated | 5642-2351 |
| 6U | 42TE | 235 | Without holes | 5642-2350 |
| 6U | 42TE | 295 | Perforated | 5642-2951 |
| 6U | 42TE | 295 | Without holes | 5642-2950 |
| 6U | 42TE | 355 | Perforated | 5642-3551 |
| 6U | 42TE | 355 | Without holes | 5642-3550 |
| 6U | 63TE | 235 | Perforated | 5663-2351 |
| 6U | 63TE | 235 | Without holes | 5663-2350 |
| 6U | 63TE | 295 | Perforated | 5663-2951 |
| 6U | 63TE | 295 | Without holes | 5663-2950 |
| 6U | 63TE | 355 | Perforated | 5663-3551 |
| 6U | 63TE | 355 | Without holes | 5663-3550 |
| 6U | 84TE | 235 | Perforated | 5684-2351 |
| 6U | 84TE | 235 | Without holes | 5684-2350 |
| 6U | 84TE | 295 | Perforated | 5684-2951 |
| 6U | 84TE | 295 | Without holes | 5684-2950 |
| 6U | 84TE | 355 | Perforated | 5684-3551 |
| 6U | 84TE | 355 | Without holes | 5684-3550 |
Unrivaled Design Expertise: Our professional design team, specializing in whole machine engineering, leverages their technical integration capabilities to create innovative and advanced solutions. From usability design to heat dissipation, electromagnetic shielding, power distribution, and reliability protection, we cover every aspect to ensure a comprehensive and tailored solution.
Exceptional Product Strength: With a focus on user-oriented, manufacturing-oriented, and cost-oriented development, our products have earned numerous patents, exemplifying their superior quality and performance. Trust in our proven track record of delivering reliable and durable subrack shielding cases that not only meet but exceed industry standards.
Global Reach and Recognition: Over the years, Beijing Rdekono has successfully penetrated international markets, with our export products earning accolades from customers worldwide. From the United States to Australia, Britain to Germany, Russia to Japan and South Korea, our products have gained a reputation for excellence and customer satisfaction.
Catalog
BEK&BEG PRO Series Subracks.pdf
Contact us today to discuss your specific requirements and let our experts guide you towards the optimal subrack shielding solution. Together, we will revolutionize the way you protect your electronic equipment. Trust in the BEK Series Subrack Shielding Case and unlock a new realm of possibilities for your business.
