19”CUR Series-Multipacpro Subracks
Definition of a 19"system: The width dimension of the outer side of the installation flange is 482.9mm (19"), which corresponds to the 19"cabinet and installation bracket of the installation plug-in box, so it is defined as a 19" system.
The 19" CUR series of subracks is a series of subracks developed by RDEKONO for the application of 19" standard subracks. The 19" CUR series has been proven to be a stable and rugged subrack that meets all the requirements of the 19" standard size and application
The 19" CUR series subrack is an electronic subrack for a wide range of stan dard electronic equipment and user-defined electronic systems for 19"
A portable desktop enclosure according to 19" standards. It can also be used as a 19" plugin device. The scalable EMC protection, color and design variants make the box the first choice for high-end electronics.
Standards/certifications
Inner and outer dimensions meet:IEC 60297-3-100, -101, - 102, -103, -104, -105,IEEE1101.1 and IEEE1101.10/11
Type of protection IP20 in accordance with IEC 60529
EMC testing to IEC 61587-3 Shock and vibration test reports: German "Bahn" standards BN 411002, BN 411003;NF F 60002, NF F 67012, IEC 61587-2, EN 50155, part 12.2.11
Customized service
Customize the side panel of the Subracks Panel and panel opening, screen printing
19"EMC Shielded Subracks Features:
RDEKONO's 19" CUR series subracks are manufactured using advanced technology
The 19" CUR series is compliant with the 19" standard and easy to assemble (Refer to the company's 19" standard summary manual for details). Fully embodies the characteristics and advantages of standardization, modularization and serialization
All series of products use a combination of common standard parts, reflecting a high degree of flexibility. Customers can use common standard parts or customized products according to specific needs, vibration, shock test standards: according to IEC 61587-1, NE50155, BN411002, NF F67012, NF F67002 test.
Subracks with good electromagnetic shielding performance

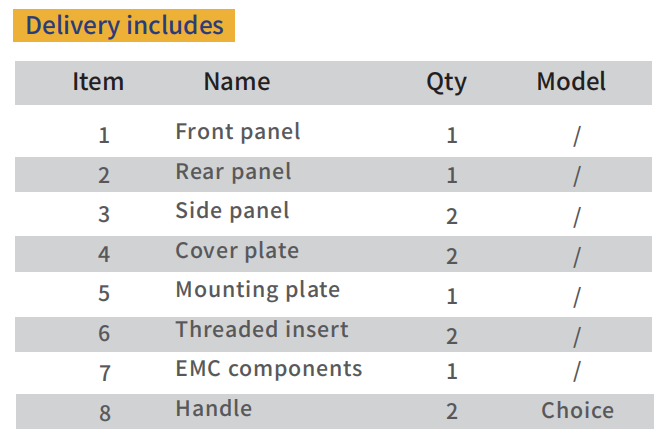

| Delivery includes | |||
| Item | Name | Qty | Model |
| 1 | Front panel | 1 | |
| 2 | Rear panel | 1 | |
| 3 | Side panel | 2 | |
| 4 | Cover plate | 2 | / |
| 5 | Mounting plate | 1 | / |
| 6 | Threaded insert | 2 | / |
| 7 | EMC components | 1 | / |
| 8 | Handle | 2 | Choice |

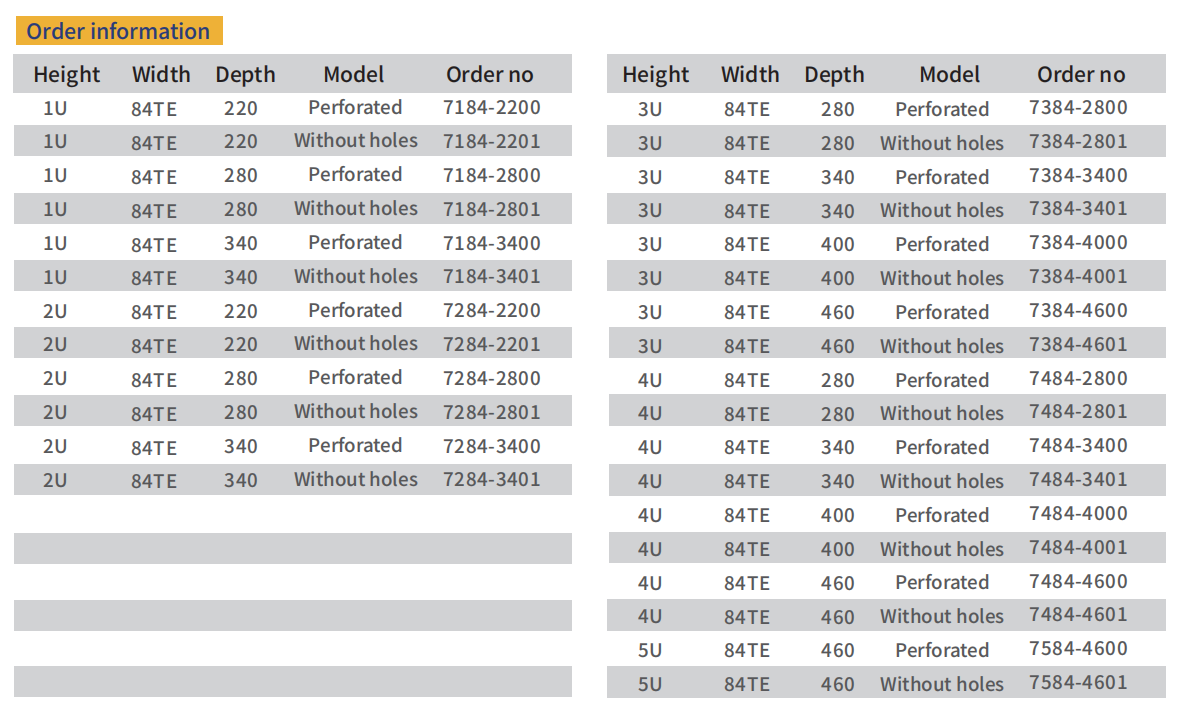

| Order information | |||||||||
| Height | Width | Depth | Model | Order no | Height | Width | Depth | Model | Order no |
| 1U | 84TE | 220 | Perforated | 7184-2200 | 3U | 84TE | 280 | Perforated | 7384-2800 |
| 1U | 84TE | 220 | Without holes | 7184-2201 | 3U | 84TE | 280 | Without holes | 7384-2801 |
| 1U | 84TE | 280 | Perforated | 7184-2800 | 3U | 84TE | 340 | Perforated | 7384-3400 |
| 1U | 84TE | 280 | Without holes | 7184-2801 | 3U | 84TE | 340 | Without holes | 7384-3401 |
| 1U | 84TE | 340 | Perforated | 7184-3400 | 3U | 84TE | 400 | Perforated | 7384-4000 |
| 1U | 84TE | 340 | Without holes | 7184-3401 | 3U | 84TE | 400 | Without holes | 7384-4001 |
| 2U | 84TE | 220 | Perforated | 7284-2200 | 3U | 84TE | 460 | Perforated | 7384-4600 |
| 2U | 84TE | 220 | Without holes | 7284-2201 | 3U | 84TE | 460 | Without holes | 7384-4601 |
| 2U | 84TE | 280 | Perforated | 7284-2800 | 4U | 84TE | 280 | Perforated | 7484-2800 |
| 2U | 84TE | 280 | Without holes | 7284-2801 | 4U | 84TE | 280 | Without holes | 7484-2801 |
| 2U | 84TE | 340 | Perforated | 7284-3400 | 4U | 84TE | 340 | Perforated | 7484-3400 |
| 2U | 84TE | 340 | Without holes | 7284-3401 | 4U | 84TE | 340 | Without holes | 7484-3401 |
| 4U | 84TE | 400 | Perforated | 7484-4000 | |||||
| 4U | 84TE | 400 | Without holes | 7484-4001 | |||||
| 4U | 84TE | 460 | Perforated | 7484-4600 | |||||
| 4U | 84TE | 460 | Without holes | 7484-4601 | |||||
| 5U | 84TE | 460 | Perforated | 7584-4600 | |||||
| 5U | 84TE | 460 | Without holes | 7584-4601 | |||||
Note: 1TE=5.08mm, 1U=44.45mm
